Secure Your Property with V-ALARM: The Ultimate Early-Warning Tamper Detection

In an era where security is paramount, the V-ALARM vibration detection module offers a robust, versatile solution for protecting your most valuable assets. Whether you’re securing a residential home or a large-scale commercial operation, V-ALARM provides true early-warning tamper detection by identifying unauthorized movement before a breach occurs.

 View V-ALARM on Zisabo

Versatile Applications for Every Need

V-ALARM is designed to be multi-purpose and affordable, making it suitable for a wide range of environments:

  • Residential Security: Protect gate motors, garage doors, security gates, and front doors. Ideal for safes inside the home.
  • Business Protection: Secure shipping containers, mobile shops, storage facilities, and roll-up doors.
  • Infrastructure & Utilities: Monitor solar panels, power distribution boxes, and telecom equipment cabinets.
  • Remote Sites: Low power use makes it great for caravans, boats, and farm gear without reliable mains power.

Smart Features & Technical Excellence

  • Low Power Consumption: ~1mA standby — runs for months on a 12V 7Ah battery.
  • Adjustable Sensitivity: Fine-tune the vibration threshold to reduce false alarms.
  • Authorized Entry Logic: Paired with an RF receiver to ignore normal gate use.
  • Visual Indicators: STATUS LED shows modes like standby, trigger, or low voltage.

How Authorized Entry vs. Tampering Works

Authorized Entry

The RX_IN terminal receives a LOW signal from a paired gate receiver when an authorized remote is pressed. V-ALARM then:

  • Temporarily bypasses vibration alarms for 2 minutes.
  • Resets the timer if the remote is pressed again within that period.
  • Flashes the STATUS LED 4 times to confirm authorized entry.

Tampering Detection

If vibration exceeds your set threshold without the RX_IN signal:

  • STATUS LED stays on during vibrations then flashes 2 times.
  • The relay output triggers a siren/alarm for ~30 seconds.
  • Sensitivity is adjustable via the onboard potentiometer.

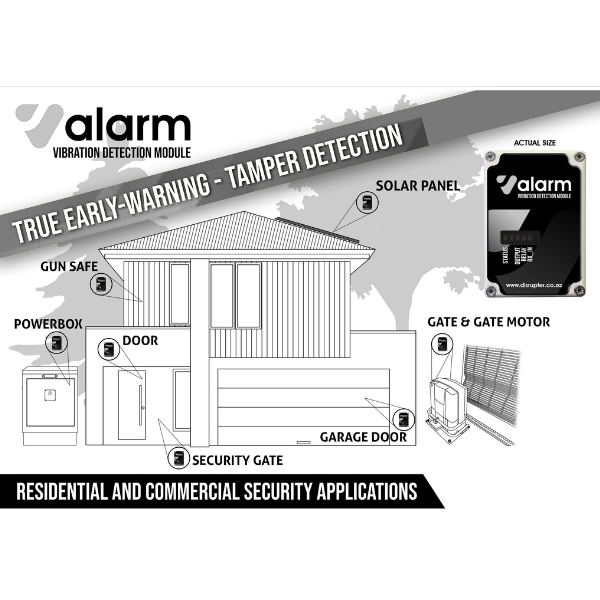

Where V-ALARM Works Best

Residential Security

  • Gate & gate motor monitoring
  • Doors & security gates
  • Garage doors
  • Gun safes

Commercial Protection

  • Containers & storage
  • Mobile shops & trailers
  • Warehouse roll-up doors

Infrastructure & Utilities

  • Solar panel monitoring
  • Power & telecom equipment

Remote & Mobile Assets

  • Caravans and boats
  • Farms and agricultural plots

Flexible Integration Modes

  • Standalone: Connect directly to siren or RF transmitter.
  • System integration: Wired to existing alarm systems via relay (NO/NC).
  • Authorized bypass: Works with receivers to avoid false triggers during normal operation.

Simple Installation

Mount with double-sided tape for quick setups or Sikaflex FC11 for permanent installations. Runs on 10–16V DC, compatible with most gate motor power supplies.

Add V-ALARM to your security toolkit and you’re not just reacting to a break-in — you’re detecting the attempt the moment it starts!
