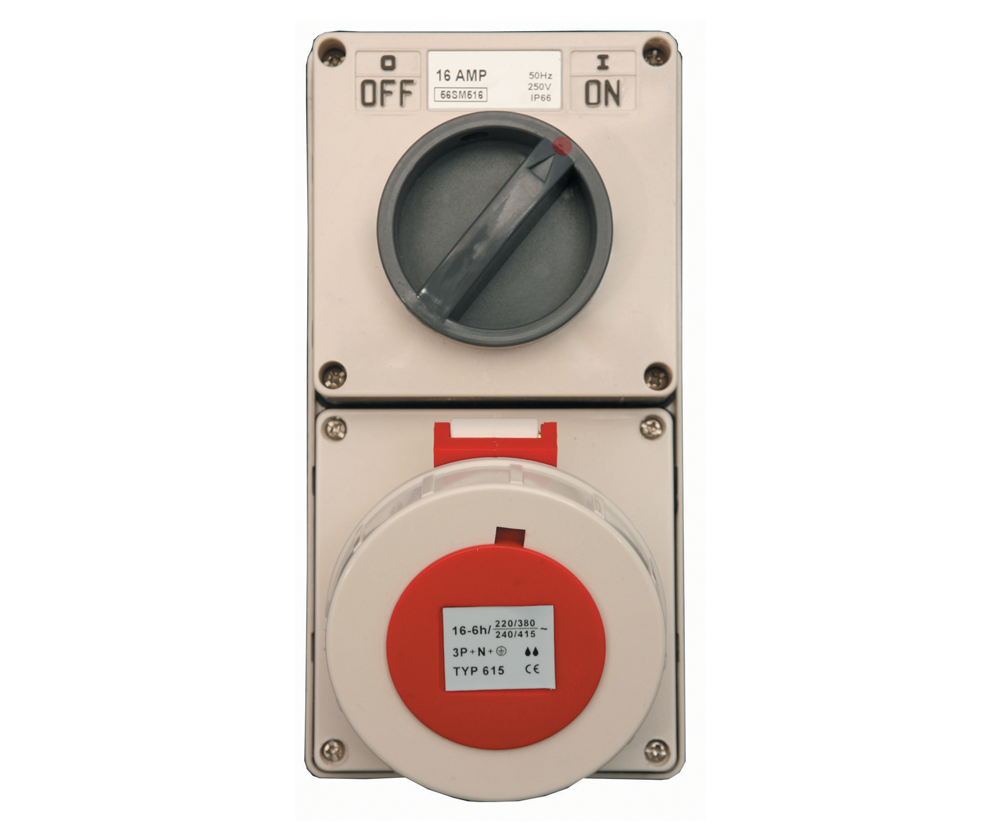

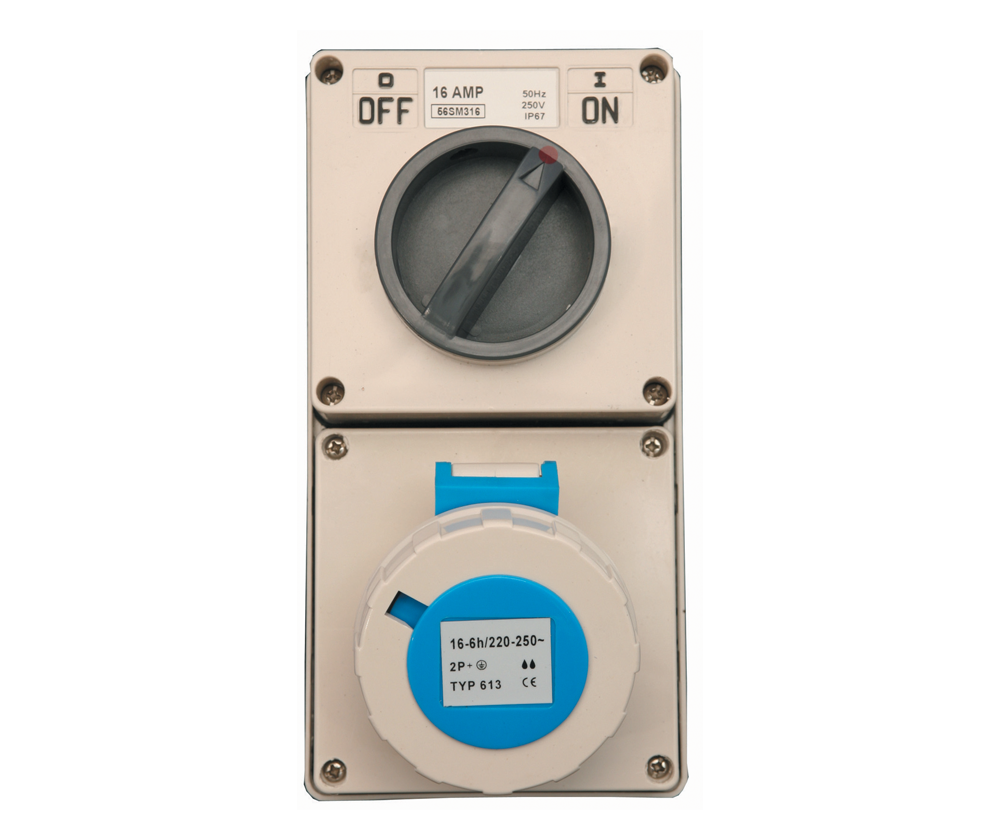

CEE IP67 Non-Interlocked Switched Socket – 16A & 32A | 3P, 4P & 5P | 230V & 380V | Surface Mount

The CEE IP67 Non-Interlocked Switched Socket range provides robust, weatherproof surface-mount socket outlets for industrial, commercial, and outdoor power distribution. The integrated rotary switch allows direct on/off control at the outlet point. IP67-rated for full dustproofing and waterproofing, these sockets are suitable for demanding environments including construction sites, workshops, agricultural installations, and exposed outdoor areas. Available in 16A and 32A current ratings across 3-pin (230V), 4-pin (380V), and 5-pin (380V) configurations to cover single-phase and 3-phase supply systems.

• Application: Industrial, commercial, and outdoor surface-mount socket outlet
• Current Ratings: 16A and 32A
• Configurations: 3-pin 230V, 4-pin 380V, 5-pin 380V
• Protection Rating: IP67 – fully dustproof and waterproof
• Type: Non-interlocked switched socket (SSO)
• Mounting: Surface mount

Key Features

• IP67 protection rating – dustproof and suitable for temporary water immersion, ideal for outdoor and wet-area installations
• Integrated rotary switch for direct on/off control at the outlet point
• Non-interlocked design – for applications where mechanical interlock is not required
• Available in 16A and 32A to suit a wide range of equipment and load requirements
• 3-pin (230V single phase), 4-pin (380V 3-phase), and 5-pin (380V 3-phase + neutral) options
• CEE / IEC 60309 format compatible with standard industrial plugs
• Surface-mount housing for straightforward wall or panel installation

Typical Applications

• Industrial workshops and factory floor power outlets
• Construction site temporary and permanent power distribution
• Outdoor power points in commercial, agricultural, and marine environments
• Generator and portable equipment connection points
• Plant rooms and 3-phase machinery connection outlets
• Caravan parks, stadiums, and event power distribution

Technical Specifications

Variant Reference

What's Included

• 1 x CEE IP67 Switched Socket in selected current rating and pin configuration

Please note: Mounting hardware, conduit, wiring accessories, and plugs are not included. Use only compatible IEC 60309 plugs of the correct current rating and pin configuration.

Installation & Compatibility Notes

• Confirm your supply voltage (230V or 380V) and phase configuration before selecting a variant.
• Select 3-pin for single-phase 230V; 4-pin for 3-phase without neutral; 5-pin for 3-phase with neutral.
• This is a non-interlocked socket – the plug can be inserted or removed without operating the switch. For safety-critical applications requiring mechanical interlocking, select the interlocked (-I) range.
• Maintain IP67 integrity by correctly sealing all cable entry points after installation.
• Use only compatible IEC 60309 plugs of matching rating and pin configuration.
• Installation must be carried out by a suitably qualified electrician in accordance with SANS 10142.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms. Zisabo supplies quality electrical products with practical support to help customers choose the correct item for their application. If you are unsure which variant is correct for your installation, contact us before ordering.
