3M Scotchcast Cable Splice Kit | Resin Joint Kit for Borehole & Submersible Cable
3M Scotchcast Cable Splice Kit | Resin Joint Kit for Borehole & Submersible Cable
Couldn't load pickup availability
Waterproof Resin Cable Joint Kit for Borehole & Submersible Pump Cables
The 3M Scotchcast Cable Splice Kit is a premium waterproof resin joint kit designed for borehole pump cables, submersible pump cable joints, and other demanding electrical splice applications. It provides dependable insulation and long-lasting protection where moisture resistance and installation reliability are essential.
Ideal for indoor, outdoor, underground and submerged use, this kit is especially well suited to borehole and submersible pump installations where a secure, moisture-resistant cable joint is required.
Quick Decision Guide
| Best for: | Borehole pump cable joints, submersible pump cable repairs, and waterproof electrical splicing |
| Application: | Indoor, outdoor, underground, and submerged installations |
| Type: | Resin-filled cable splice joint kit |
| Voltage rating: | Up to 1.1kV |
| Available sizes: | 92-A0 NBA and 92-A2 NBA |
| Choose by cable size: | Match the splice kit to your cable conductor size before ordering |
| Need help choosing? | Send us your cable size and pump application before ordering |
Why Buy from Zisabo
- Trusted cable jointing solution for borehole and submersible pump applications
- Suitable for waterproof, underground, and submerged cable joints
- Need help choosing the right splice kit size? WhatsApp us before ordering

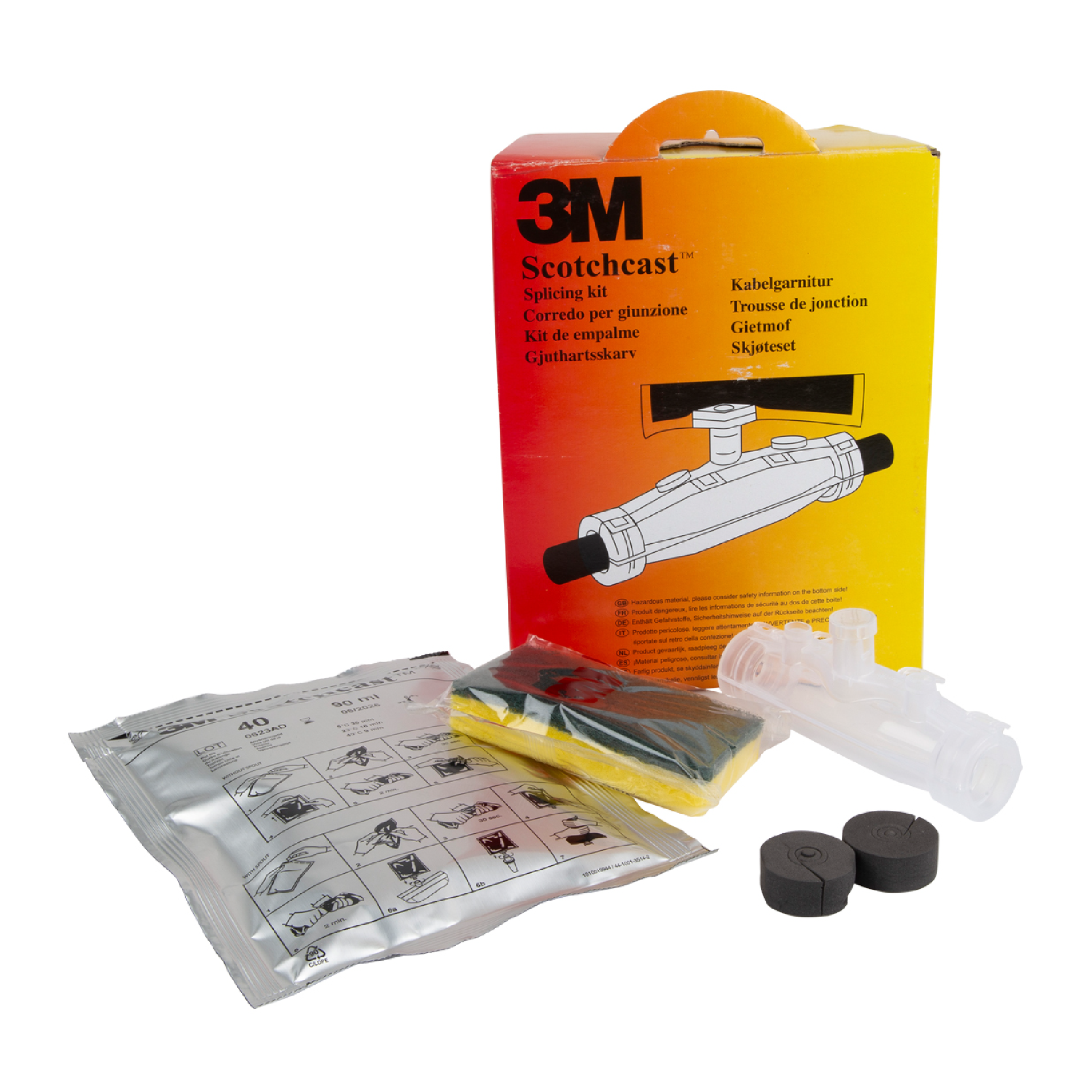

What’s Included
- 3M Scotchcast cable splice kit
- Transparent mould body
- Two-chamber polyurethane resin pack with integrated pouring spout
- Protective aluminium guard bag for resin
Key Features
- Premium waterproof cable splice kit for harsh environments
- Ideal for borehole pump and submersible pump cable joints
- Suitable for submerged, underground, indoor, and outdoor use
- Slim-line mould design for compact installation spaces
- Transparent mould body for easier alignment and visual checking
- Polyurethane resin system for insulation and protection
- Helps provide strong electrical insulation and mechanical protection
- Designed for long-lasting cable joint reliability
- Voltage rating up to 1.1kV
Applications
- Borehole pump cable joints
- Submersible pump cable repairs
- Replacement cable splices
- Underground cable jointing
- Waterproof electrical splicing
- Installations exposed to moisture or submersion
Available Variants
| Variant | Cable Size Range | Best Use |
|---|---|---|
| 92-A0 NBA | 2.5mm² to 4mm² | Smaller submersible and borehole cable joints |
| 92-A2 NBA | 6mm² to 16mm² | Larger borehole and submersible cable joints |
How to Choose the Right Splice Kit
Choose the correct 3M Scotchcast variant based on your cable conductor size. Using the correct size helps ensure a proper fit, reliable sealing, and long-term electrical protection.
Before ordering, send us:
- Your cable size in mm²
- Your pump type
- Your installation environment
- Whether the joint will be submerged or underground
Guarantees
Guarantees
Store Refund Policy
Materials
Materials
Shipping
Shipping
3 - 7 Business Days
Additional Information
Additional Information
3M Scotchcast Resin Inline Joint Kits Contains a One Part Transparent Mould Body For Easy Handling And So Distances Inside The Body Can Be Checked Easily. It Also Includes a Polyurethane Resin, Provided In A Two-Chamber Bag With An Intergrated Spout For Easy Pouring As Well As a Aluminuim Guard Bag To Protect Against Humidity. Utilizes A Slim-Line Mould. The 92 Series Is Ideal For Borehole Applications Where Space Is Limited. 92-A0 Min O.D 7mm; Max O.D 16mm. Cable Size 2.5 to 4mm2. Voltage rating: 1.1kV. All Neccesary Information Like Application Range And Cable Preperation Are Included In The Instructions.
