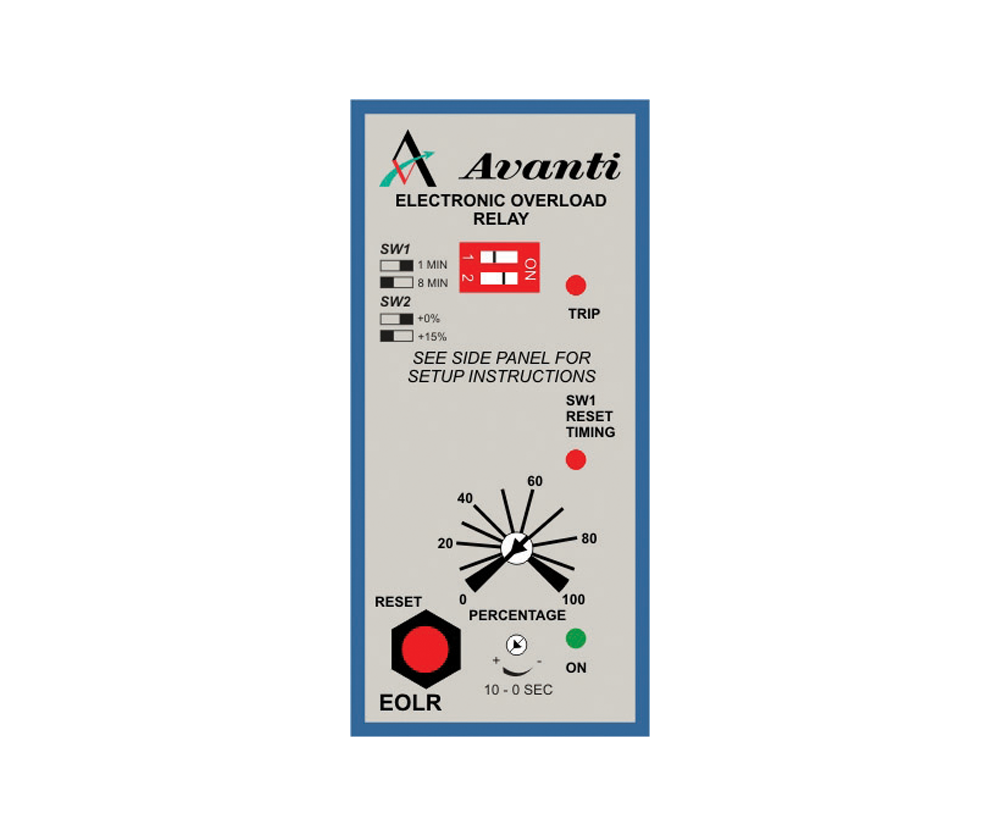

Electronic Overload Relay with Phase Failure Protection

The A-EOLR Electronic Overload Relay provides overload protection for motors by interfacing with 2 standard 5A current transformers, with adjustable trip response and a latch/reset facility. It is suitable for electricians and panel builders needing CT-based overload protection with local and remote reset options.

• Application: CT-based motor overload protection
• CT interface: 2 standard 5A current transformers
• Trip response: 0-10 seconds, 15% above set point
• Mounting: Plug-in, 11 pin base

Key Features

• Interfaces with 2 standard 5A CTs for accurate overload sensing on the motor circuit
• 10 second start-up delay avoids nuisance trips on motor inrush current
• Latch facility between terminals 8+9 for manual-reset protection where required
• Reset button plus 2 remote reset terminals allow local or remote resetting
• LEDs indicate Relay-On, Trip and Reset Timing conditions

Typical Applications

• Motor overload protection using external CTs
• Panel builder motor protection circuits
• Pump and industrial motor protection
• Retrofit overload protection on existing CT wiring

Technical Specifications

What's Included

• 1 x A-EOLR Electronic Overload Relay

Please note: Current transformers and 11 pin relay base/socket are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm you have 2 standard 5A CTs fitted to the motor circuit before ordering.
• Confirm supply voltage required — available in multiple voltages.
• Installation should be carried out by a suitably qualified electrician where required.
