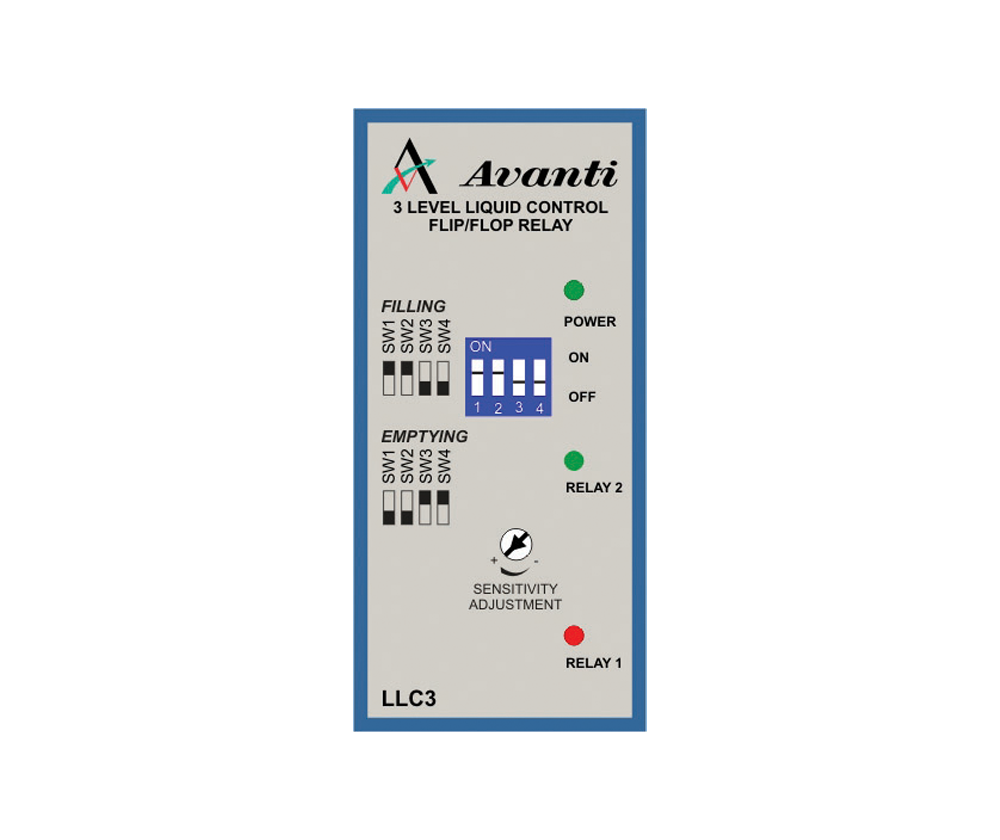

3 Level Liquid Level Control with Duty Cycling, 230V

The A-LLC3-M Liquid Level Control automatically alternates two pump relays between Duty and Standby operation at different liquid levels, using built-in flip-flop switching. It is suitable for electricians, pump installers and property/farm managers running dual-pump tank systems that need automatic duty cycling.

• Application: Dual-pump duty/standby control with automatic alternation
• Voltage: 230V
• Modes: Filling or Emptying, selected via 4 DIP switches
• Probes: Avanti AEL probes at High, Middle and Low levels

Key Features

• Controls 2 pump relays with automatic Duty/Standby alternation via built-in flip-flop action
• 4 DIP switches select Filling or Emptying operating mode
• 3 level inputs (High/Middle/Low) give finer control over dual-pump switching points
• Reduces uneven wear by automatically rotating which pump runs as duty

Typical Applications

• Dual-pump tank filling systems
• Dual-pump tank emptying/sump systems
• Farm and borehole water storage control
• Commercial water tank duty/standby control

Technical Specifications

What's Included

• 1 x A-LLC3-M 3 Level Liquid Level Control Relay

Please note: Avanti AEL level probes and pump contactors/wiring are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm you are using Avanti AEL probes — this relay is designed specifically for them.
• Set the DIP switches to Filling or Emptying mode to match your tank application before commissioning.
• Installation should be carried out by a suitably qualified electrician where required.
