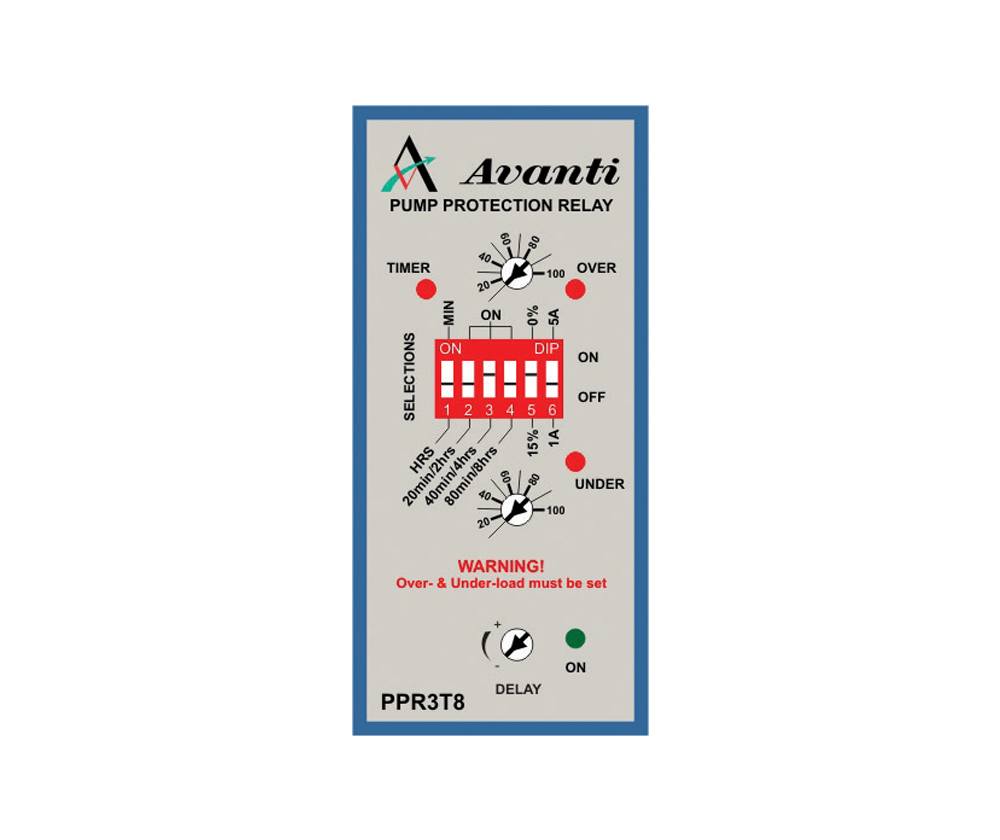

Pump Protection Relay with Phase Failure Protection

The A-PPR Pump Protection Relay provides sensitive overload and underload protection for pump motors, with phase failure protection where fitted, and is particularly suited to borehole and pump set applications where dry-running or phase loss is a risk. It is suitable for electricians, borehole installers and pump maintenance teams.

• Application: Overload/underload and phase failure protection for pump motors
• Detection: Current-transformer-based overload/underload with adjustable set/trip point
• Borehole recovery: DIP-switch underload re-start timer, 20 minutes to 8 hours
• Mounting: Plug-in, 11 pin base

Key Features

• Adjustable overload/underload set point with LED indication and 0-10 second trip delay
• DIP-switch selectable underload re-start timer (6 settings, 20 minutes to 8 hours) allows borehole water recovery before restarting
• Phase failure protection included where fitted, reducing single-phasing risk to the motor
• Fixed 5 second start-up delay avoids nuisance trips on motor inrush

Typical Applications

• Borehole pump motor protection
• Dry-run and underload protection for pump sets
• Farm and agricultural pump installations
• Panel builder pump protection circuits

Technical Specifications

What's Included

• 1 x A-PPR Pump Protection Relay

Please note: 11 pin relay base/socket and current transformers are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm the pump motor's overload/underload current thresholds before setting up the relay.
• For borehole dry-run protection, set the underload re-start timer to suit your borehole's recovery rate.
• Installation should be carried out by a suitably qualified electrician where required.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need help choosing? If you are unsure whether this product is suitable for your system, contact Zisabo with your application details, voltage, current rating, pin/base configuration or installation environment, and we will assist where possible.
