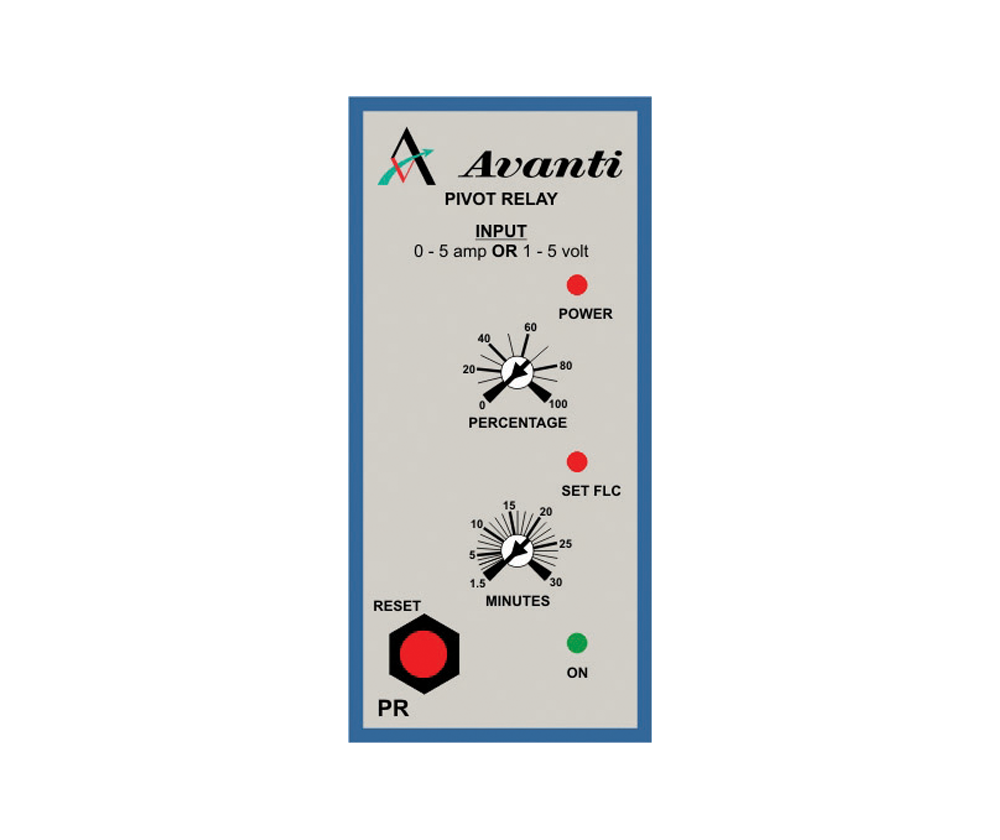

Pivot Relay, Plug-In 11 Pin

The A-PR Pivot Relay monitors a pivot's current or voltage draw and opens the relay if the draw falls below a pre-set threshold after an over-ride timer, indicating the pivot has stopped moving. It is suitable for farmers, irrigation contractors and electricians maintaining centre-pivot irrigation systems.

• Application: Centre-pivot irrigation movement monitoring
• Sensor input: 1-5 Volt or 1-5 Amp, selectable
• Function: Energises on power-up; opens on under-threshold draw after over-ride timer
• Mounting: Plug-in, 11 pin base

Key Features

• Detects a stalled or stopped pivot by monitoring current/voltage draw against a set threshold
• Selectable 1-5V or 1-5A sensor input via terminals 5, 6 and 7
• Manual reset button allows the system to be restarted after a shut-down
• Over-ride timer avoids false trips during normal pivot start-up

Typical Applications

• Centre-pivot irrigation monitoring
• Farm and agricultural equipment protection
• Borehole-fed irrigation systems
• Remote pivot fault detection

Technical Specifications

What's Included

• 1 x A-PR Pivot Relay

Please note: 11 pin relay base/socket and sensor wiring are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm whether your pivot sensor outputs 1-5V or 1-5A before ordering.
• Confirm supply voltage required — available in multiple voltages.
• Installation should be carried out by a suitably qualified electrician where required.
