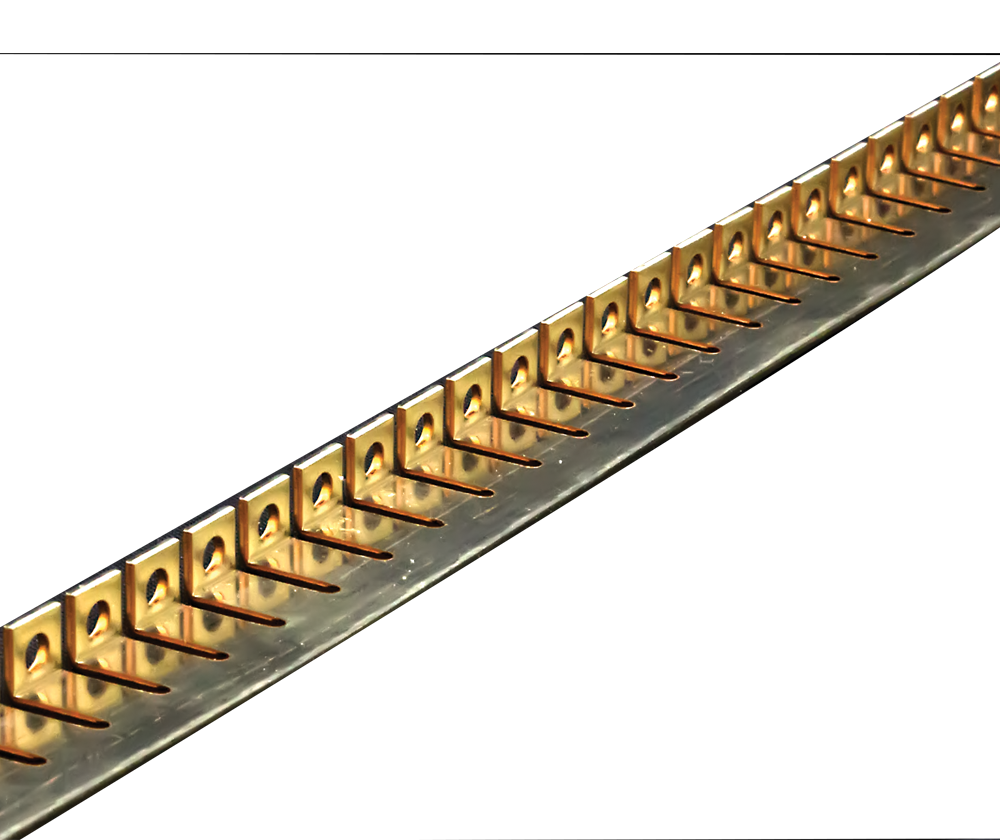

Bridge Bar for Standard Terminal Blocks – Copper Nickel Plated | 0.5m Length | 10mm, 16mm & 35mm

These copper nickel-plated bridge bars are used to electrically connect multiple terminal blocks together in a row, creating a common bus connection across selected terminals without the need for individual jumper wires. Supplied in 0.5m lengths for cutting to the required number of poles on site. Available for 10mm², 16mm², and 35mm² standard terminal blocks. Suitable for panel building, control panels, motor control centres, and industrial switchgear.

• Application: Linking multiple terminal blocks to create a common potential bus
• Material: Copper, nickel plated
• Supply length: 0.5m – cut to required pole count on site
• Sizes available: 10mm / 16mm / 35mm terminal blocks
• Use: Panel building, switchgear, MCC, and industrial wiring

Key Features

• Copper construction with nickel plating for reliable conductivity and corrosion resistance
• Bridges multiple terminal blocks to create a shared potential without individual wiring between terminals
• Supplied as a 0.5m length – cut to the exact number of poles required for your installation
• Available in 10mm, 16mm, and 35mm sizes to match conductor cross-sections
• Reduces wiring time and improves panel layout neatness in common-potential terminal applications

Typical Applications

• Creating common neutral or earth bus connections across multiple terminal blocks
• Linking terminal blocks for power distribution within control panels
• Motor control centre (MCC) and industrial switchgear panel building
• Distribution boards and junction boxes requiring grouped common terminals
• Any panel installation requiring a multi-pole bridge across DIN rail terminal blocks

Technical Specifications

Variant Reference

What's Included

• 1 x Bridge Bar in selected size – 0.5m length

Please note: Terminal blocks, DIN rail, and cutting tools are not included. The bridge bar must be cut to the required number of poles on site using appropriate tools. Ensure the bridge bar size matches your terminal block conductor size before ordering.

Installation & Compatibility Notes

• Select the bridge bar size that matches your terminal block conductor size (e.g. 10mm bridge bar for 10mm² terminal blocks).
• Cut the 0.5m length to the required number of poles using a suitable cutting tool before installation.
• Ensure the bridge bar is compatible with your terminal block series before ordering – contact Zisabo with the terminal block model if unsure.
• Installation should be carried out with the circuit de-energised.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation and correct application. Zisabo supplies quality electrical panel accessories with practical support. Contact us before ordering if you are unsure of compatibility.
