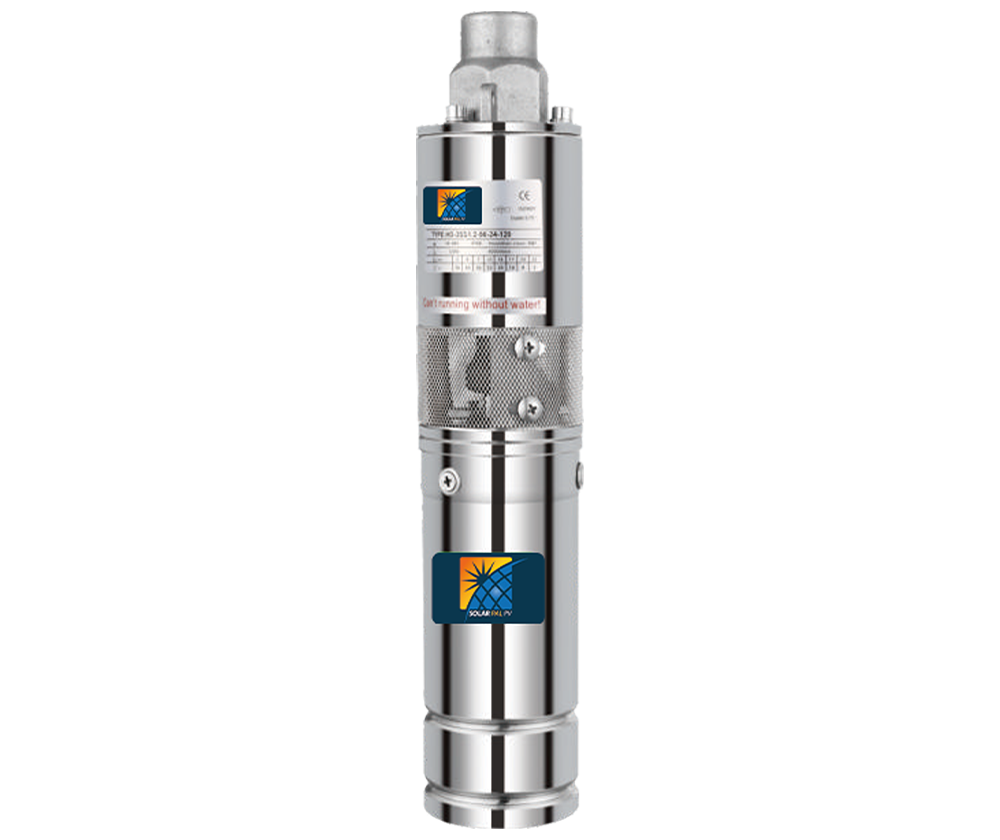

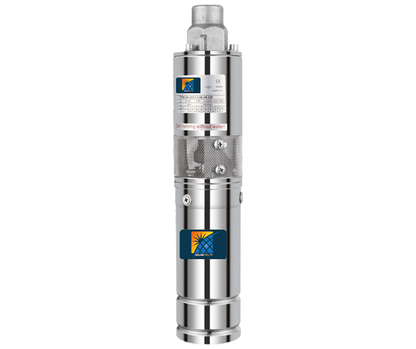

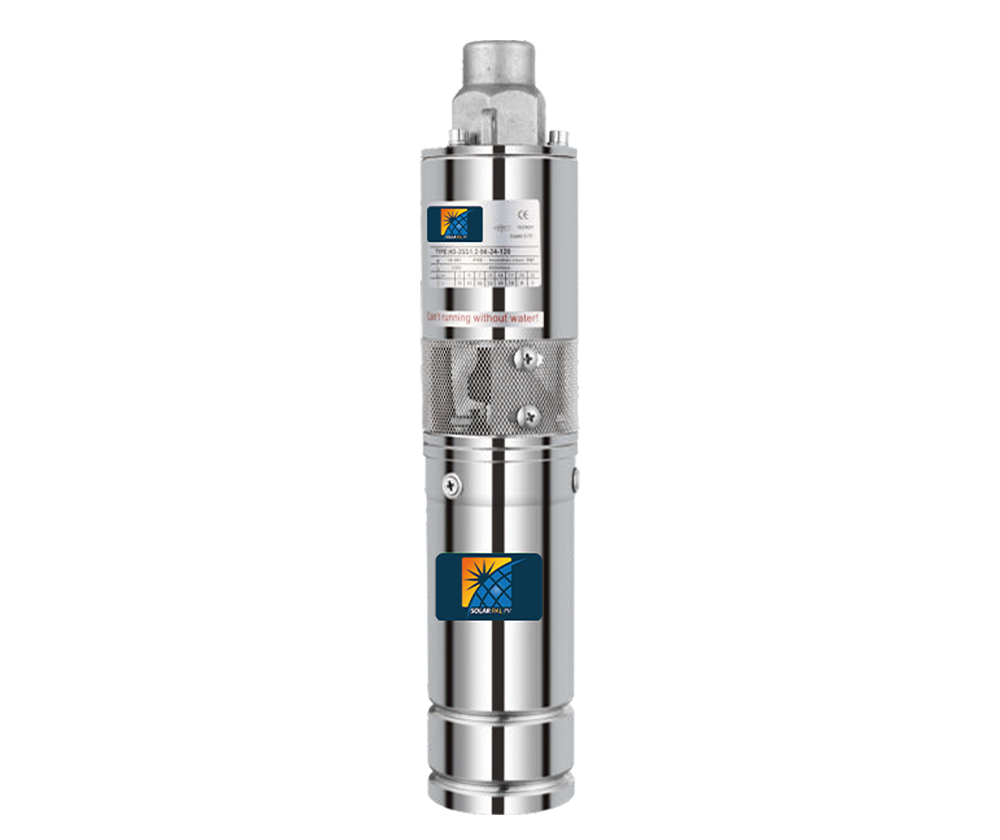

CYCLONE 3" DC Brushless Screw Solar Borehole Pump

The Solar Pal PV CYCLONE is a 3" DC brushless screw (helical rotor) solar borehole pump designed for off-grid and load-shedding-resilient water supply. It runs directly off solar panels via its low-voltage DC brushless motor and screw pump element, making it a practical choice for farmers, borehole users and rural or off-grid properties that need reliable water without relying on mains power.

• Application: Suitable for solar-powered borehole water supply, off-grid pumping and load-shedding backup
• Key specification: 3" diameter, DC brushless screw pump, 210W-500W depending on model
• Borehole compatibility: 3" pump diameter, suitable for 4" and larger boreholes
• Solar panels: Sold separately — CYCLONE-77 needs 1 x 330W panel, CYCLONE-109 needs 2 x 330W panels
• Installation: Supplied complete with an installation pack, 1 x float switch and DC controller

Key Features

• Brushless DC motor with screw (helical rotor) pumping element for efficient low-flow, high-head solar pumping
• Runs directly from solar panels through the included DC controller — no need for mains AC power or a separate inverter
• Compact 3" body fits standard 4" and larger borehole casings
• Includes an installation pack and float switch (dry-run/tank-full protection) as standard
• Helical rotor is a genuine spare part (SKU CYC-HR), so the pump element can be serviced rather than replacing the whole unit

Typical Applications

• Off-grid borehole water supply for homes, farms and rural properties
• Load-shedding-resilient household or farm water supply
• Livestock watering and irrigation from a borehole
• Remote sites with no reliable grid connection

Technical Specifications

What's Included

• 1 x CYCLONE solar borehole pump (model per variant selected)
• 1 x DC controller
• 1 x installation pack
• 1 x float switch

Please note: Solar panels, a weatherproof DC isolator, borehole cable extensions and mounting/wiring accessories beyond the installation pack are not included unless specifically listed above. A weatherproof DC isolator is required to isolate the panels for maintenance — refer to the ODD16 to 32D/E2/E4/E22 range for selection according to your application, or contact Zisabo for guidance.

Installation & Compatibility Notes

• Confirm which model you need based on your required head (water depth + friction/rising main losses) and flow — CYCLONE-77 for up to 77m head, CYCLONE-109 for up to 109m head.
• Size your solar panel array to the optimum input voltage range and minimum power shown in the spec table — panels are sold separately.
• Confirm your borehole diameter is 4" or larger before ordering — this is a 3" pump.
• A weatherproof DC isolator must be fitted between the panels and controller for safe maintenance isolation.
• Installation should be carried out by a suitably qualified installer.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? If you are unsure whether this product is suitable for your system, contact Zisabo with your required flow, head, borehole diameter and available solar panel setup, and we will assist where possible.
