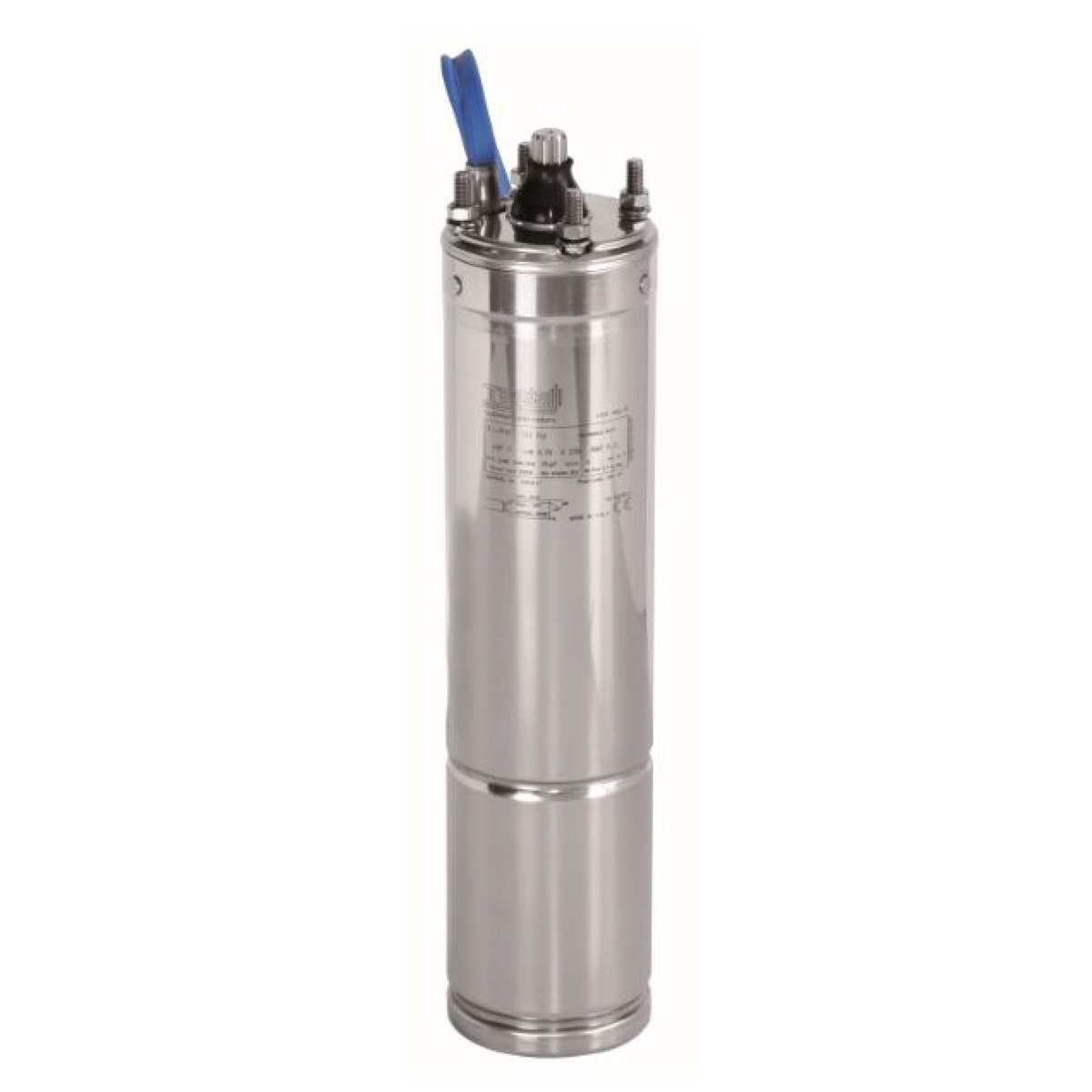

DAB 40L Submersible Borehole Motor – 1.5kW (2HP), 3-Phase 230V [Clearance]

The DAB 40L is a 4" submersible borehole motor designed to drive a compatible submersible pump end (wet end) in clean water borehole and well installations. It is suitable for installers, contractors and borehole owners who need to replace or upgrade a motor on an existing 4" borehole pump, and offers robust AISI 304 stainless steel construction and a 250m maximum operating depth rating, making it a practical choice for residential, farm and light commercial borehole systems.

• Application: Drives a compatible 4" submersible pump end in clean borehole or well water
• Key specification: 1.5kW (2HP), three-phase 230V, 50Hz, rated current 7.9A
• Flange: NEMA 4" — compatible with standard 4" submersible pump ends
• Motor only: This listing is for the motor only. No pump end, control panel or cable is included beyond the standard connector lead
• Protection: IP68, insulation class F, max operating depth 250m
• Overload protection: Must be supplied by the installer for this three-phase version — not included

Key Features

• Rewindable-type motor: Can be professionally rewound rather than replaced outright if it ever fails, extending its practical service life.
• AISI 304 / 304L stainless steel construction: Parts in contact with water and the outer stator shell are stainless steel, suited to borehole water conditions.
• Liquid-filled cooling and lubrication: An FDA-approved liquid cools the motor and lubricates the ball bearings for reliable running.
• Ceramic-carbon mechanical seal: Helps keep borehole water out of the motor housing over the long term.
• Removable cable connector: Speeds up maintenance or motor replacement without needing to re-terminate the full cable run.
• Variable frequency drive compatible: Suitable for use with a VFD across a 30–50Hz range, for installations that need flow or pressure control.
• PT100-ready: Can be fitted with an optional PT100 temperature sensor for motor monitoring on larger or critical installations.

Typical Applications

• Replacing a failed or worn motor on an existing 4" borehole pump
• Farm, agricultural and rural borehole water supply
• Domestic borehole-to-tank water supply systems
• Light commercial and irrigation borehole installations

Technical Specifications

What's Included

• 1 x DAB 40L submersible borehole motor (1.5kW, 3-phase 230V) with standard connector lead

Please note: Installation fittings, electrical protection, cartridges, control boxes, cables, unions, brackets, or accessories are not included unless specifically listed above. This motor does not include a pump end (wet end) or control panel.

Installation & Compatibility Notes

This is a motor only and must be paired with a compatible 4" submersible pump end (wet end) rated for a similar power range, matched by a qualified pump installer. Confirm your borehole diameter, static and dynamic water level, required flow rate, total dynamic head, pipe run and power supply before ordering — a motor sized incorrectly for the application can lead to poor performance or premature failure. This three-phase version requires the installer to provide correctly rated overload protection; it is not built into the motor. Suitable for clean borehole or well water only, not for dirty water or sewage applications. Installation and electrical connection must be carried out by a qualified electrician or pump installer. If you are unsure whether this motor is compatible with your existing pump end or borehole setup, contact Zisabo with your details before ordering.

Clearance Terms

This item is old stock sold as clearance on a final sale basis, as-is, with no manufacturer or distributor warranty. Please inspect the product carefully on arrival, as clearance stock is not eligible for warranty returns or exchanges.

Warranty & Support

This item is sold as clearance stock on a final sale basis, as-is, with no manufacturer or distributor warranty and no guarantee of fitness for a particular borehole setup. No returns or exchanges can be offered once purchased. If you are unsure whether this product is suitable for your system, contact Zisabo with your application details, required flow, pressure, pipe size, borehole depth or existing pump end specifications, and our team will assist where possible before you order.
