DAB Esybox Pop Electronic Water Pressure Booster System | 0.3kW
DAB Esybox Pop Electronic Water Pressure Booster System | 0.3kW
Available on back-order The item is available on back order. You can still place your order - but lead times are subject to supplier stock availability. Contact us for stock availability if required.
Couldn't load pickup availability
Maximum Pressure, Minimum Size

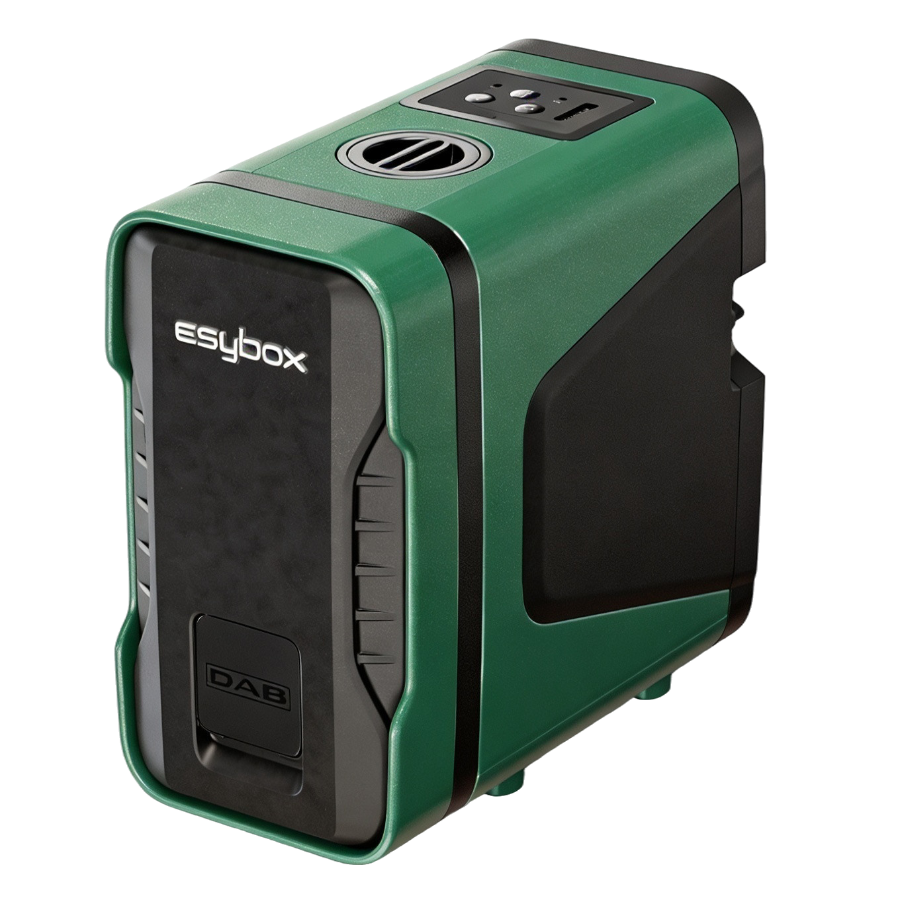

The DAB Esybox Pop is a silent, all-in-one electronic pressurisation system designed for small residential homes, apartments and tight installation spaces. It combines a self-priming pump, variable frequency drive, pressure/flow/temperature sensors and smart connectivity in one compact, lightweight unit – winner of the iF Design Award 2025.
Unlike a basic pump and pressure switch, the Esybox Pop uses inverter (VFD) control to deliver constant, stable water pressure while running whisper-quiet. It arrives fully assembled and ready to install, with rotatable fittings that adapt to tight plumbing spaces without modifying the existing system.
Best For
- Small homes, apartments and upper-floor units where pressure drops
- Bathroom and whole-home renovations
- Replacing an old, noisy pressure pump
- Areas affected by water rationing (tank-to-house pumping)
- Under-sink or outdoor installations in tight spaces
- Homeowners who want app-based monitoring and control via DAB H2D
Technical Specifications
| Brand | DAB |
| Model | Esybox Pop |
| DAB Code | 60243087 |
| System Type | Integrated electronic pressurisation system |
| Control Type | Variable Frequency Drive (VFD), permanent magnet motor |
| Power Supply | 1 x 220-240V, 50/60Hz |
| Power (P1 max) | 0.3kW / 0.4HP, 1.5A |
| Max Flow | Up to 3.9m³/h (65 L/min) |
| Max Head | 32m |
| Connection Size | 3/4″ inlet and outlet (curved and standard fittings supplied) |
| Maximum Operating Pressure | 6 bar / 600kPa |
| Liquid Temperature Range | 5°C to +50°C |
| Protection Rating | IPX5 |
| Insulation Class | Class F |
| Impeller Material | Technopolymer |
| Dimensions (W x H x D) | Approx. 122 x 209 x 225mm |
| Weight | Approx. 4.4kg |
| Power Cord | 1.5m with plug |
| Certifications | WRAS, NSF, ACS (under certification) |
| Water Type | Clean water only, free from solids and abrasive particles |
Key Features
- All-in-one: arrives fully assembled with no bulky extra components required
- Pressure, temperature & flow sensors: continuous real-time monitoring for stable performance
- Non-return valve: prevents backflow and protects the installation
- Rotatable fittings: simplify installation in tight spaces without reworking existing pipework
- Permanent magnet motor: water-cooled, stainless steel jacket, high efficiency and long service life
- Intelligent HMI: colour LED status indicators and 3-button setpoint control
- Integrated Wi-Fi connectivity: connects directly to the DAB H2D app, no gateway or modem needed
- Built-in protection: dry-run, anti-cycling leak detection, anti-freeze, overheating and motor-protection safeguards
Typical Applications
- Domestic water pressure boosting for small homes and apartments
- Bathroom "power shower" pressure boosting
- Tank-to-house water supply in areas affected by water rationing
- Replacing an ageing or noisy pressure pump after renovation
- Under-sink kitchen pressure boosting
- Outdoor installation in a protected area (IPX5 rated)
Not Suitable For
- Dirty water, grey water, sewage or sludge
- Water containing sand, grit or abrasive particles
- Deep borehole pumping
- Large apartment blocks or high-demand commercial systems
What's Included
- 1 x DAB Esybox Pop pressurisation unit
- 2 x pairs of fittings (curved and standard)
- 1 x power cable with plug
Please note: Wall-mounting brackets, the EsyDock docking accessory, and installation fittings beyond those listed above are not included and are sold separately. See the DAB Esywall Pop and DAB EsyDock Pop accessories.
Installation & Compatibility Notes
The Esybox Pop can be installed vertically or wall-mounted using the dedicated Esywall Pop kit, and its rotatable 3/4″ connections make it suitable for most existing domestic plumbing without major rework. It requires a single-phase 230V supply and clean water only.
Correct performance depends on pipe sizing, installation position and setpoint configuration. We recommend installation by a qualified plumber, and connection to the DAB H2D app for setup, monitoring and comfort functions (Power Shower, Good Night, Holiday Mode). Contact Zisabo if you are unsure whether this pump is suitable for your home.
Warranty & Support
This DAB Esybox Pop is supplied with DAB's distributor and service centre-backed 24-month warranty. Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.
Need Help Choosing?
If you're unsure whether the Esybox Pop is suitable for your system, send Zisabo your water source, required flow, pressure, pipe size and installation type, and we'll help confirm the right setup – including whether you need the EsyDock or Esywall mounting accessory.
