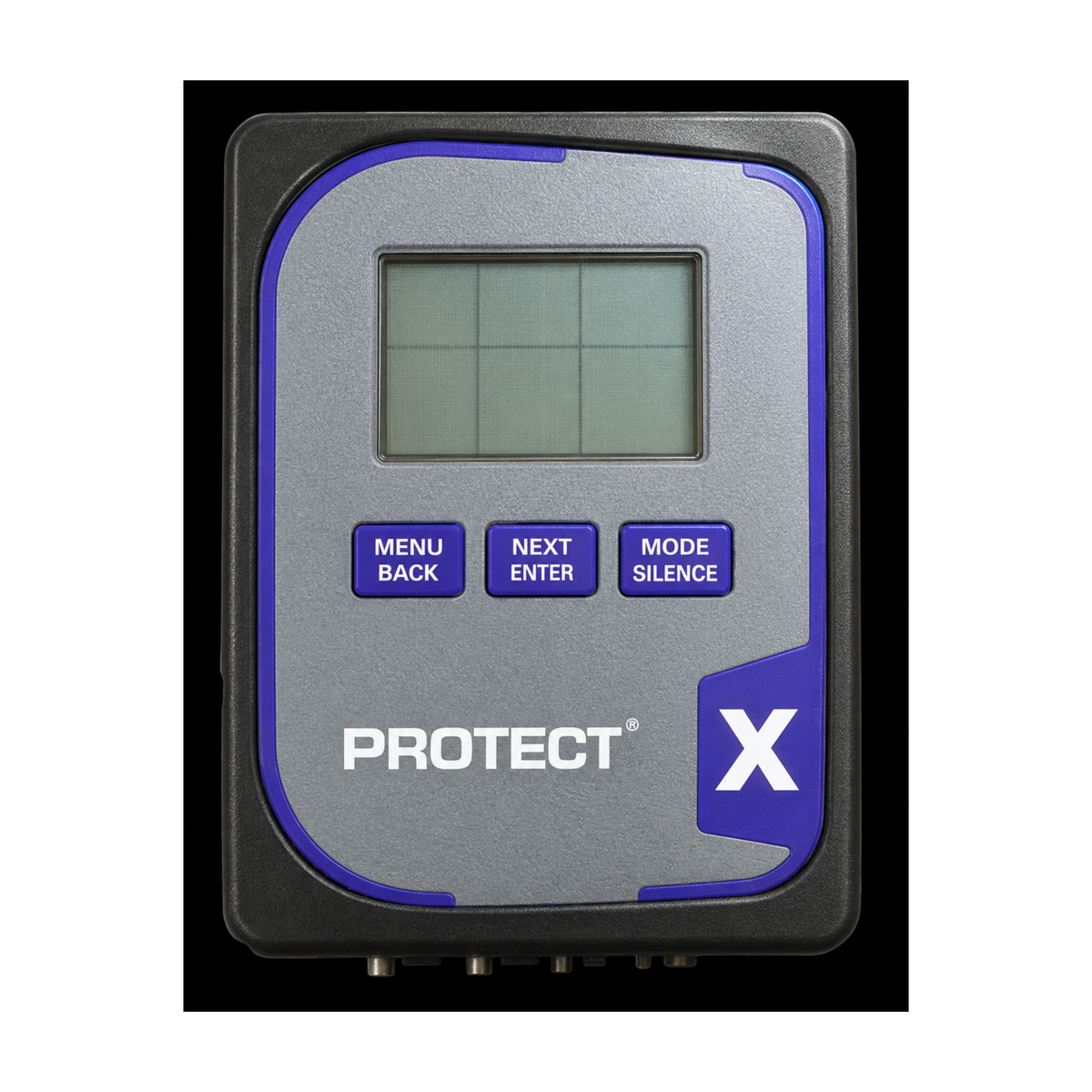

DAB iProtect Pump Controller Box – Single & Three Phase, 0.37kW to 11kW

The DAB iProtect Pump Controller Box is a reliable digital pump controller and protection unit designed for single-phase pumps up to 2.2kW and three-phase pumps up to 11kW. It is suitable for borehole pumps, drainage pumps, transfer pumps and pressure boosting in single-pump applications, and offers pump protection, fault display and flexible sensor connections, making it a practical choice for borehole, farm, domestic and light commercial pump systems.

• Application: Borehole, drainage, transfer and pressure boosting with a single pump
• Range: 4 models covering single-phase 230V (0.37–2.2kW) and three-phase 400V (0.75–11.0kW)
• Protection: IP65 rated controller for reliable operation in demanding installations
• Sensor inputs: Removable terminals for a liquid level sensor, float switch or pressure switch
• Diagnostics: Displays the last five fault records and total pump running time
• Motor compatibility (single-phase models): Suits 3-wire PSC motors and 2-wire PSC motors with an internal capacitor

Key Features

• Fault record display: Shows the last five faults, which helps with faster troubleshooting.
• Running time display: Shows the pump's accumulated running time so servicing can be planned.
• Memory function: Retains settings during power off and resumes correctly on power recovery.
• Alarm notification: Flashing screen and audible alarm (the audible alarm can be muted).
• Long probe range: Supports a maximum level probe length of 1000m.
• Removable terminals: Makes connecting and servicing the level sensor, float switch or pressure switch easier.
• Optional expansion modules: PT100 temperature sensor module and dry contact module available.
• Internal start capacitor spacing (single-phase): Allows the start capacitor to be mounted inside the unit.

Typical Applications

• Borehole pump control and protection
• Drainage and sump pump control
• Tank-to-tank and water transfer systems
• Pressure boosting with a single pump
• Farm and agricultural water supply
• Domestic, commercial and light industrial pump systems

Technical Specifications

What's Included

• 1 x DAB iProtect pump controller (selected model)

Please note: Installation fittings, electrical protection, cartridges, control boxes, cables, unions, brackets, or accessories are not included unless specifically listed above. The optional PT100 temperature sensor module, dry contact module, level probes, float switches and pressure switches are not included.

Installation & Compatibility Notes

• Select the model that matches your pump's supply voltage (single-phase 230V or three-phase 400V) and motor kW and full-load current. Check the pump's nameplate against the current limit of the model.
• The iProtect 1-22 is for single-phase pumps only. The 3-40, 3-75 and 3-9 are for three-phase pumps only.
• Choose the model according to the pump's rated current, not only its kW rating.
• For single-phase pumps, confirm whether the motor is a 3-wire PSC type (remote capacitor) or a 2-wire PSC type (internal capacitor).
• A level sensor, float switch or pressure switch is required depending on how the pump is to be controlled.
• Installation and wiring must be carried out by a qualified electrician in line with local regulations and the pump manufacturer's requirements.

Warranty & Support

This product is supplied with the DAB-backed 24-month warranty, supported by the distributor and service centre, subject to correct installation, correct application, and warranty terms. Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need Help Choosing?

If you are unsure which iProtect model suits your pump, contact Zisabo with your pump's nameplate details (kW, voltage, full-load current), control method (level probe, float or pressure switch) and application, and we will assist where possible.
