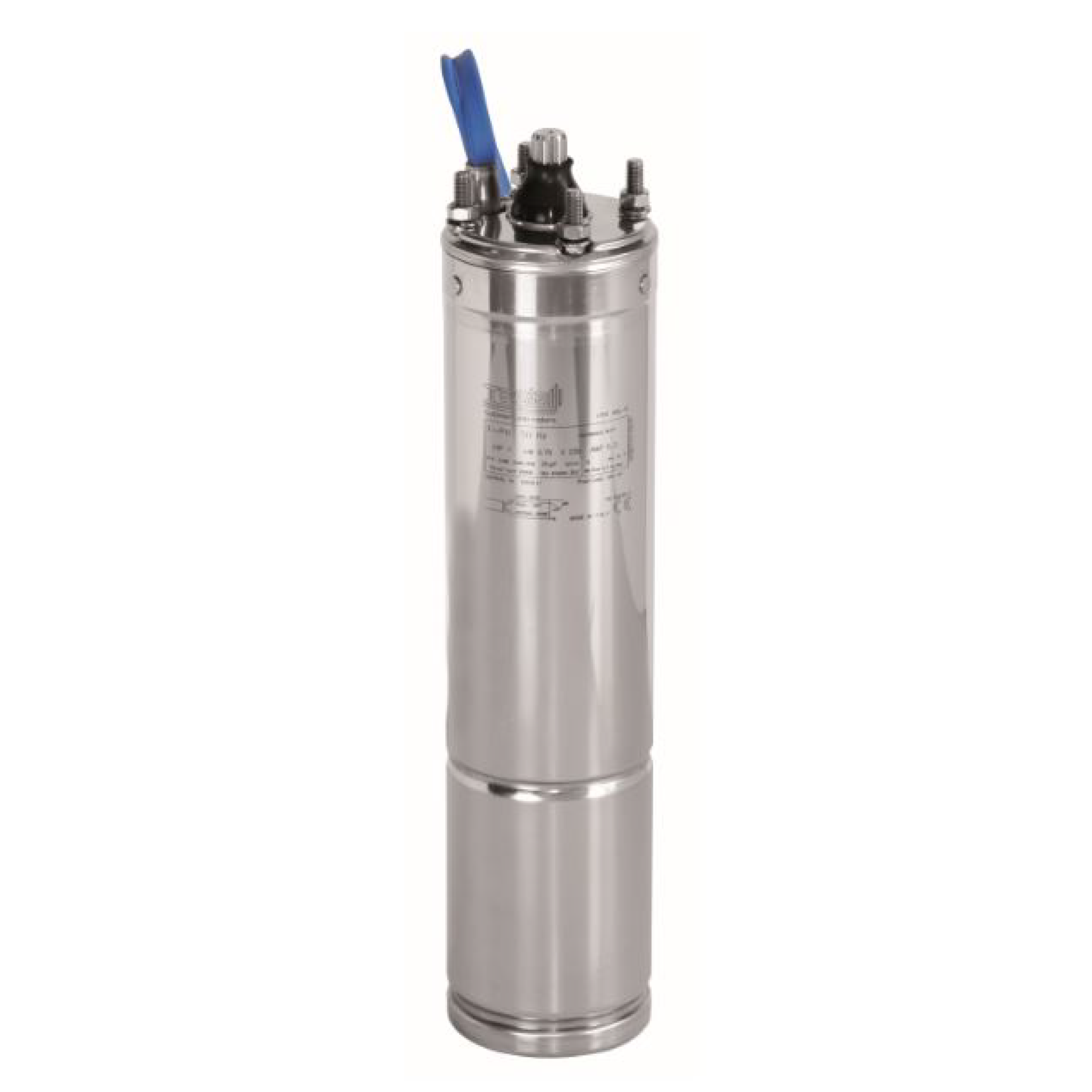

DAB 4OL 4" Submersible Borehole Motor | Oil-Filled Rewindable Stainless Steel Motor

• DAB 4OL 4" submersible motor
• Removable cable connector
• Motor unit only

Not included

• Hydraulic pump end
• Electric control panel
• Lead-out cable unless separately purchased
• Installation accessories

• 4" asynchronous two-pole submersible motor
• Rewindable-type construction
• AISI 304 stainless steel for parts in contact with water
• Cooling and lubrication provided by a special FDA-approved liquid
• Stator housed in an AISI 304L external shell
• Stainless steel pins connecting the motor assembly
• Removable cable connector for fast maintenance
• Cable certified ACS, WRAS, and KTW
• Mechanical seal in ceramic-carbon
• Suitable for use with variable frequency drive from 30 Hz to 50 Hz
• Flanging NEMA 4"
• Insulation class F
• Protection class IP68
• Minimum cooling flow speed 0.3 m/s at 35°C
• Power supply tolerance +6% / -10%
• Maximum starts 20 per hour
• Max operating depth 250m
• Horizontal operation from 0.5 HP to 10 HP

• For single-phase versions, the capacitor and manually resettable overload protection are located in the electric panel, which can be supplied separately.
• For three-phase versions, overload protection must be provided by the user or installer.
• This motor is designed to be paired with a compatible 4" hydraulic end.
• The motor can be equipped with a PT100 temperature sensor.

Match your motor by checking the required power, available voltage, hydraulic-end compatibility, installation depth, and whether you need a single-phase or three-phase setup.

Before ordering, send us:

• Your existing motor model
• Your hydraulic pump model
• Your available voltage
• Your required motor size
• Your borehole depth

• Lead-out cable options
• Suitable control and protection equipment
• Compatible hydraulic pump ends
• Motor-matching installation accessories
