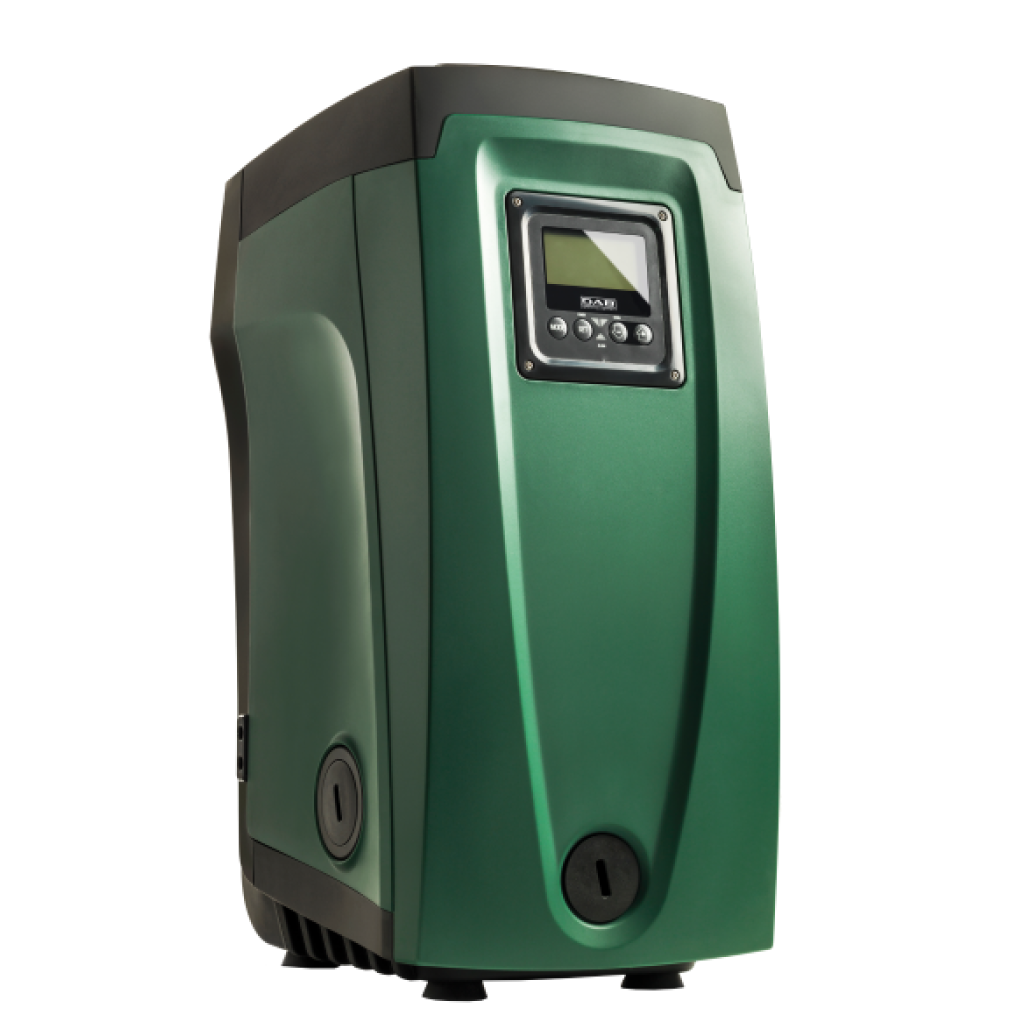

DAB e.SYBOX Electronic Water Pressure Booster System | 1.1kW
DAB e.SYBOX Electronic Water Pressure Booster System | 1.1kW
Couldn't load pickup availability
Premium Constant-Pressure Booster for Homes, Farms and Light Commercial Use
The DAB e.SYBOX Electronic Water Pressure Booster System is a premium integrated pressurisation system designed for domestic, agricultural and light commercial clean-water applications. It combines a self-priming multistage pump, inverter control, pressure and flow sensors, LCD display and integrated expansion tank in one compact, quiet and intelligent booster unit.
The e.SYBOX is ideal for customers who want more than a basic pressure pump. Instead of simply switching on and off like a standard pump-and-controller setup, the e.SYBOX uses inverter technology to adjust pump speed according to water demand. This helps deliver smoother, more consistent pressure while reducing unnecessary energy use.
Best For
- Premium domestic water pressure boosting
- Tank-to-house water pressure systems
- Homes requiring constant pressure comfort
- Rainwater reuse and clean-water supply systems
- Gardening and irrigation applications
- Small farms and light commercial water pressure applications
- Customers wanting a quiet, compact, all-in-one booster solution
Key Specifications
| Brand | DAB |
| Model | e.SYBOX |
| DAB Code | 60161184 |
| System Type | Integrated electronic pressurisation system |
| Pump Type | Self-priming multistage pressure booster pump |
| Control Type | Inverter / variable frequency drive pressure control |
| Power Supply | 1 x 220–240V, 50/60Hz |
| Power | 1.1kW / 2.1HP |
| Max Flow | Up to 7.2m³/h / 120L/min |
| Max Head | Up to 65m |
| Maximum Suction Depth | Up to 8m, installation dependent |
| Connection Size | 1” inlet and 1” outlet |
| Maximum Working Pressure | 8 bar |
| Integrated Expansion Tank | 2L integrated expansion tank |
| Noise Level | Approximately 43dB |
| Protection Rating | IPX4 |
| Insulation Class | Class F |
| Weight | Approx. 27kg |
| Water Type | Clean water only, free from solids and abrasive particles |
Why Constant Pressure Matters
A standard pressure pump usually switches on and off at fixed pressure points. The e.SYBOX uses inverter control to adjust pump speed according to demand, helping maintain more stable water pressure while using only the energy required for the application.
This makes the e.SYBOX a premium comfort solution for homes and properties where pressure consistency, quiet operation and reliability matter.
Premium Benefits
- Constant pressure: inverter control adjusts pump speed according to water demand
- All-in-one system: pump, inverter, sensors, LCD display and expansion tank integrated into one unit
- Quiet operation: approximately 43dB, ideal for residential environments
- Self-priming: suitable for suction lift installations up to 8m when correctly installed
- Compact installation: can be installed vertically or horizontally
- Energy efficient: variable speed control reduces unnecessary fixed-speed running
- Expandable system: wireless communication allows creation of pressurisation groups with other compatible DAB devices
- No separate pressure tank required: includes integrated expansion tank
Ideal Applications
- Whole-home water pressure boosting
- Tank-to-house pressure systems
- Domestic potable water systems
- Rainwater reuse systems
- Garden taps and irrigation
- Small farms and agricultural clean-water supply
- Light commercial pressure applications
- Installations where quiet operation and compact design are important
Not Suitable For
- Dirty water, grey water, sewage or sludge
- Water containing sand, grit or abrasive particles
- Deep borehole pumping
- Large apartment blocks or high-demand commercial systems without technical sizing
- Industrial systems requiring engineered pump selection
- Outdoor exposure without suitable protection or correct accessory selection
Important Installation Guidance
The e.SYBOX should be installed by a competent installer. Correct performance depends on the water source, pipe sizing, suction height, pressure setting and system layout.
For suction lift installations, use a suitable foot valve or check valve and ensure the system is filled with water before startup.
e.SYBOX vs Basic Pump & Controller
| Feature | DAB e.SYBOX | Basic Pump + Controller |
|---|---|---|
| Pressure control | Variable speed constant pressure | Basic start/stop control |
| Components | Integrated pump, inverter, sensors, display and tank | Separate pump and control components |
| Noise | Very quiet residential operation | Depends on pump and installation |
| Energy use | Adjusts speed to actual demand | Typically fixed speed |
| Best for | Premium pressure comfort and system integration | Budget pressure boosting |
What’s Included
- DAB e.SYBOX integrated electronic booster system
- Self-priming multistage pump
- Inverter / variable frequency drive control
- Pressure and flow sensors
- Integrated 2L expansion tank
- High-resolution LCD display
- Power cable and SA plug
Need Help Confirming This Booster?
Send Zisabo your water source, number of bathrooms, number of storeys, pipe distance, garden irrigation requirement and intended use. We’ll help confirm whether the DAB e.SYBOX is the right constant-pressure booster for your installation.
WhatsApp Zisabo: 083 349 8864
Frequently Asked Questions
Is the DAB e.SYBOX better than a normal pressure pump?
The e.SYBOX is a premium solution. A normal pump usually switches on and off, while the e.SYBOX uses inverter control to adjust pump speed and deliver more stable pressure.
Does it need a separate controller or pressure tank?
No. The e.SYBOX is an integrated system with pump, inverter, sensors, display and expansion tank built in.
Is it quiet enough for domestic use?
Yes. DAB documentation indicates approximately 43dB operation, making it suitable for residential installations where quiet operation matters.
Can I use it from a water storage tank?
Yes. It can be suitable for tank-to-house pressure boosting when correctly installed and supplied with clean water.
Can it supply a larger home than the e.SYBOX Mini 3?
Yes. The standard e.SYBOX offers higher flow and pressure capability than the e.SYBOX Mini 3, making it more suitable for larger homes or higher-demand installations.
Can it handle dirty water?
No. It is designed for clean water only and should not be used with sand, grit, sludge, grey water or sewage.
Can it be installed outside?
It should be installed in a suitable protected position unless the correct outdoor protection/accessory is used. Contact Zisabo if you are planning an outdoor installation.
Is professional installation recommended?
Yes. Professional installation is recommended to ensure correct pipe sizing, suction setup, pressure setting, electrical safety and long-term reliability.
Buy with Confidence from Zisabo
Zisabo supplies premium pump, plumbing and water solutions for South African homes, contractors, farmers and installers. Need help deciding whether the DAB e.SYBOX is the right constant-pressure booster for your home or property? WhatsApp us before ordering.
Guarantees
Guarantees
Dab-backed 24 month warranty
Materials
Materials
Shipping
Shipping
2 - 3 Business Days
Additional Information
Additional Information
The DAB E.sybox is a compact, fully integrated booster pump designed for domestic and residential water pressurization. It features an inverter system for energy efficiency, a high-resolution LCD display, and easy installation options1. Suitable for potable water, it ensures constant water pressure and quiet operation.
• Made in Italy, The E.SYBOX Pressure booster pump comprises a self-priming and multi-stage pump with electronic inverter management, pressure and flow sensors, adjustable with high resolution LCD display and an integrated 2 litre expansion tank. May be installed either vertically or horizontally, in closed spaces without high level of air exchange.
• The accessories (e.sywall, e.sydock, e.sytwin, e.sytank) permit several installation possibilities. The water-cooled motor, the protective and sound damping ABS hull, the anti-vibration feet and its electronics make this compact product very quiet (45dB under normal use).
• The wireless system enables the creation of other pressurization groups able to connect with other DAB devices (e.g., e.sylink). The constant pressure can be set from 1 to 6 bar for E.SYBOX.
• Frequency: 50/60Hz
• Horse Power: 2.1
• Self-priming, multi-stage pump with electronic inverter management
• Pressure and flow sensors
• High-resolution LCD display
• Integrated 0.5-gallon expansion tank
• Installs vertically or horizontally
• Constant pressure can be set from 15 to 85 PSI
• Durable ABS enclosure
• Suitable for potable water, gardening and irrigation
• Allows for creating groups of up to four pumps
