DAB e.SYBOX Mini 3 Electronic Water Pressure Booster System | 0.75kW
DAB e.SYBOX Mini 3 Electronic Water Pressure Booster System | 0.75kW
Couldn't load pickup availability
Premium Constant-Pressure Booster for Modern Homes

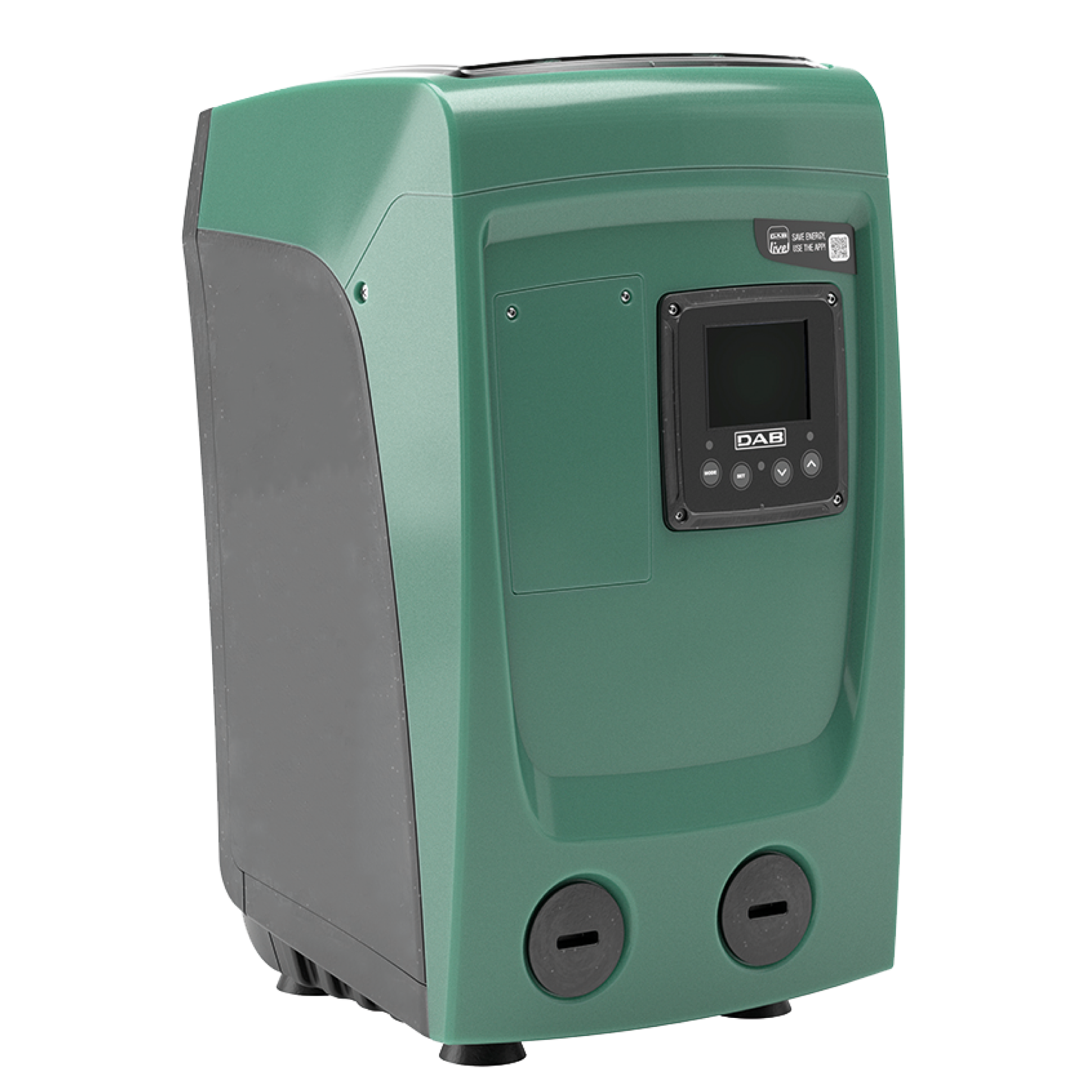

The DAB e.SYBOX Mini 3 Electronic Water Pressure Booster System is a premium integrated pressure booster designed for single dwellings, domestic water supply, rainwater reuse, gardening and irrigation. It combines a self-priming multi-impeller pump, inverter control, pressure and flow sensors, display and expansion vessel in one compact all-in-one unit.
Unlike a basic pump and controller setup, the e.SYBOX Mini 3 is designed to deliver constant water pressure by adjusting pump performance according to demand. This makes it an excellent premium option for homeowners who want smoother pressure, quieter operation, energy efficiency and a clean installation without multiple separate components.
Best For
- Premium domestic water pressure boosting
- Single homes and modern residential installations
- Tank-to-house water pressure systems
- Rainwater reuse systems
- Gardening and irrigation applications
- Homeowners wanting constant pressure instead of basic on/off pump control
- Installations where quiet operation and compact design matter
Key Specifications
| Brand | DAB |
| Model | e.SYBOX Mini 3 |
| DAB Code | 60212600 |
| System Type | Integrated electronic pressurisation system |
| Pump Type | Self-priming multi-impeller booster pump |
| Control Type | Inverter / variable frequency drive pressure control |
| Power Supply | 1 x 220–240V, 50–60Hz |
| Power | 0.75kW / 1.1HP |
| Max Flow | Up to 4.8m³/h / 80L/min |
| Max Head | Up to 55m |
| Maximum Suction Depth | Up to 8m, installation dependent |
| Connection Size | 1” inlet and 1” outlet |
| Maximum Operating Pressure | 7.5 bar |
| Noise Level | Approximately 45dB |
| Protection Rating | IPX4 |
| Insulation Class | Class F |
| Weight | Approx. 14.6kg |
| Water Type | Clean water only, free from solids and abrasive particles |
Why Constant Pressure Matters
A standard booster pump usually switches on and off at set pressure points. The e.SYBOX Mini 3 uses inverter technology to adjust pump speed according to water demand, helping deliver smoother and more stable pressure while using only the energy required for the demand.
This is especially useful for homes where comfort, quiet operation and pressure consistency matter.
Premium Benefits
- Constant pressure: inverter control adjusts performance according to demand
- All-in-one system: pump, inverter, display, sensors and expansion vessel integrated into one unit
- Quiet operation: approximately 45dB, suitable for residential environments
- Compact installation: designed for horizontal or vertical fixed installation
- Energy efficient: variable speed operation helps reduce unnecessary energy use
- Easy setup: large display makes configuration easier for installers and users
- Integrated protection: designed with electronic control and system protection features
Ideal Applications
- Single-dwelling water pressure boosting
- Domestic potable water systems
- Tank-to-house pressure boosting
- Rainwater reuse systems
- Groundwater supply where conditions are suitable
- Garden taps and light irrigation
- Residential installations requiring quiet, compact pressure control
Not Suitable For
- Dirty water, grey water, sewage or sludge
- Water containing sand, grit or abrasive particles
- Deep borehole pumping
- Large apartment blocks or high-demand commercial systems
- Industrial water systems requiring engineered pump selection
- Outdoor exposure without suitable protection
Important Installation Guidance
The e.SYBOX Mini 3 should be installed by a competent installer. Correct performance depends on the water source, pipe sizing, suction height, pre-filtration where required, and the correct pressure setting for the home.
For suction lift installations, a suitable foot valve or check valve should be used, and the system must be filled with water before startup.
e.SYBOX Mini 3 vs Standard Pump & Controller
| Feature | e.SYBOX Mini 3 | Basic Pump + Controller |
|---|---|---|
| Pressure control | Variable speed constant pressure | Basic start/stop control |
| Installation | Integrated all-in-one system | Separate pump and controller components |
| Noise | Very quiet residential operation | Depends on pump and installation |
| Energy use | Adjusts speed to demand | Typically fixed speed |
| Best for | Premium home pressure comfort | Budget pressure boosting |
What’s Included
- DAB e.SYBOX Mini 3 integrated booster system
- Self-priming multi-impeller pump
- Variable frequency drive / inverter control
- Pressure and flow sensors
- Integrated expansion vessel
- Display for pressure and system settings
- Power cable and plug
Need Help Confirming This Booster?
Send Zisabo your water source, number of bathrooms, number of storeys, pipe distance and intended use. We’ll help confirm whether the e.SYBOX Mini 3 is the right premium booster for your home.
WhatsApp Zisabo: 083 349 8864
Frequently Asked Questions
Is the e.SYBOX Mini 3 better than a normal pressure pump?
It is a premium option. A normal pump and controller switches on and off, while the e.SYBOX Mini 3 uses inverter control to adjust pump speed and maintain more stable pressure.
Does it need a separate controller or pressure tank?
No. The e.SYBOX Mini 3 is an integrated system with pump, inverter, sensors, display and expansion vessel built in.
Is it quiet enough for domestic use?
Yes. It is designed for quiet residential operation, with DAB documentation indicating approximately 45dB operation.
Can I use it from a water storage tank?
Yes, it can be suitable for tank-to-house pressure boosting when correctly installed and supplied with clean water.
Can it handle dirty water?
No. It is designed for clean water only and should not be used with sand, grit, sludge, grey water or sewage.
Can it be installed outside?
It should be installed in a suitable protected position unless the correct outdoor protection/accessory is used. Contact Zisabo if you are planning an outdoor installation.
Is professional installation recommended?
Yes. Professional installation is recommended to ensure correct pipe sizing, suction setup, pressure setting, electrical safety and long-term reliability.
Buy with Confidence from Zisabo
Zisabo supplies premium pump, plumbing and water solutions for South African homes, contractors and installers. Need help deciding whether the DAB e.SYBOX Mini 3 is the right constant-pressure booster for your home? WhatsApp us before ordering.
Guarantees
Guarantees
Dab-backed 24 month warranty
Materials
Materials
Shipping
Shipping
2 - 3 Business Days
Additional Information
Additional Information
Electronic self priming multi-impeller system for pressurization, rainwater reuse, ground water, gardening and irrigation in residential building service. The system is “all inclusive” and ready to use, including among other components an expansion vessel, a self-priming multi-impeller pump, a variable frequency drive and a display. The special ABS construction makes it silent, just 45 dB, so it can be positioned even in quite environments. Water-cooled motor. The system can be installed vertically or horizontally.
The large display (adjustable to meet different installation needs) allows easy and precise configuration of the operating parameters. Complete with power cable and plug. It is possible to create groups of maximum two pumps. It supports the remote control function thanks to the DConnect service integrated directly into the system.
• Operating range: Capacity up to 4,8 m3/h; head up to 55 m.
• Liquid quality requirements: Clean, free from solid or abrasive contaminants, not viscous, not aggressive, not crystallised and chemically neutral.
• Liquid temperature range: From 0°C to +35°C for domestic use. For other use from 0°C to +40°C.
• Horse Power: 1.1
• Maximum suction depth 8 meters.
• Maximum ambient temperature +50°C.
• Maximum operating pressure 7,5 bar (750 kPa).
• Motor protection rating IPX4.
• Insulation class F.
• Installation horizontal or vertical fixed position.
