DIN Rail Distribution Block 2 & 4 Pole, 100A to 125A | MCE FJ207 FJ407 FJ411 FJ415

R 80.50

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model FJ207 – 2 Pole – 100A FJ407 – 4 Pole – 125A FJ411 – 4 Pole – 125A FJ415 – 4 Pole – 125A

MCE FJ multi-pole distribution blocks are DIN rail mounted blocks that split one supply into several outgoing connections. They suit electricians and panel builders working on distribution boards and control panels, and are available as a 2 pole 100A block or 4 pole 125A blocks in three lengths.

Mounting: DIN rail
FJ207: 100A, 2 pole, AC only
FJ407 / FJ411 / FJ415: 125A, 4 pole, AC/DC
Terminals: 6mm², 16mm² and 25mm² per pole

Key Features

Multiple outgoing terminals per pole in one compact block
4 pole versions suitable for AC and DC
Three 4 pole lengths for different numbers of outgoing circuits

Typical Applications

Sub-distribution in boards and panels
Neutral and phase distribution
Light commercial and industrial installations

Technical Specifications

Brand	MCE

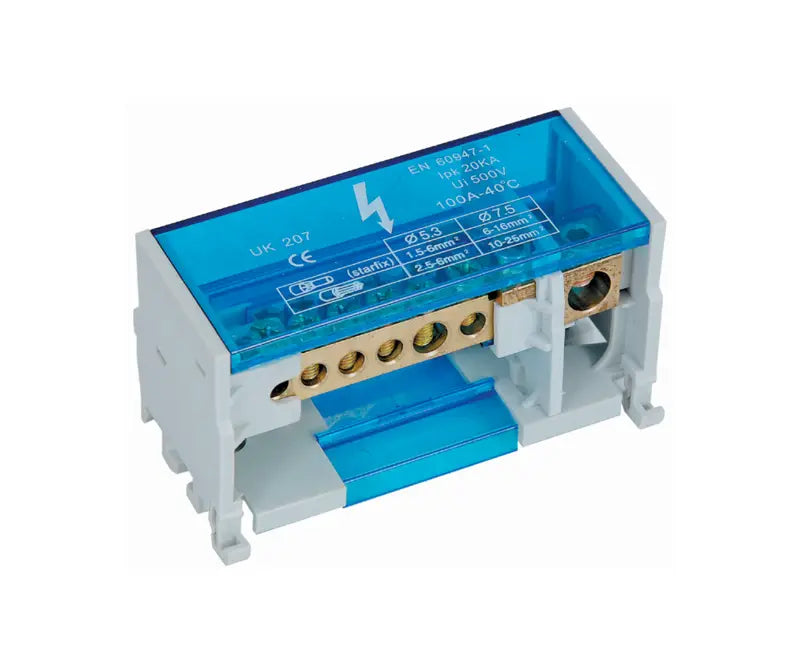

FJ207	100A, 2 pole, AC only. Per pole: 1 x 25mm², 3 x 16mm², 3 x 6mm². 64 x 50 x 45mm (L x D x W)

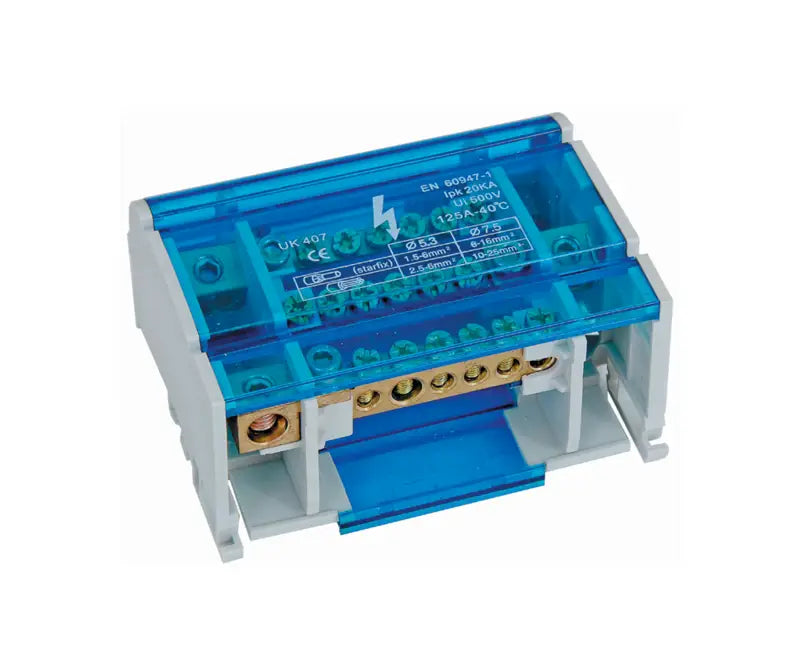

FJ407	125A, 4 pole, AC/DC. Per pole: 1 x 25mm², 1 x 16mm², 5 x 6mm². 64 x 50 x 85mm

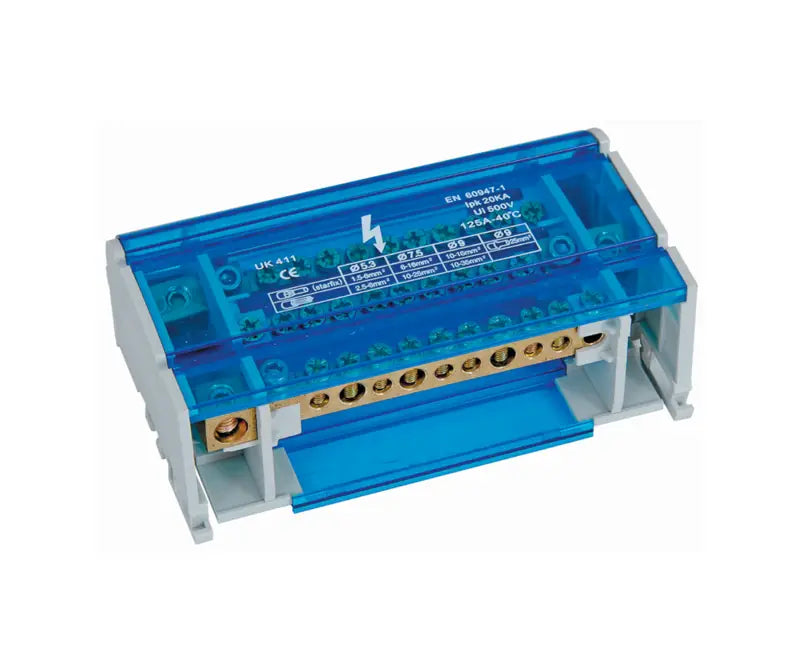

FJ411	125A, 4 pole, AC/DC. Per pole: 2 x 25mm², 2 x 16mm², 7 x 6mm². 100 x 50 x 85mm

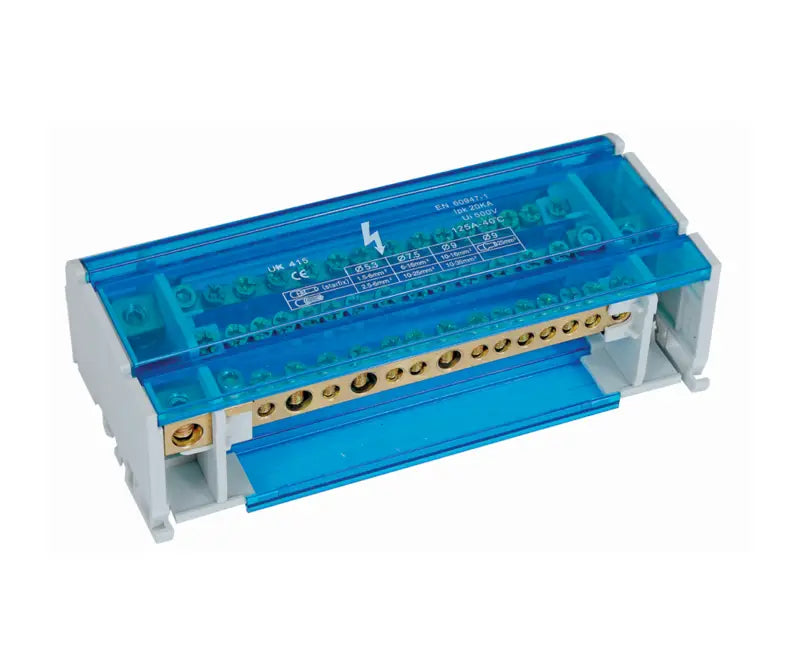

FJ415	125A, 4 pole, AC/DC. Per pole: 2 x 25mm², 2 x 16mm², 11 x 6mm². 129 x 50 x 85mm

What’s Included

1 x MCE FJ distribution block, selected model

Please note: Installation fittings, electrical protection, cartridges, control boxes, cables, unions, brackets, or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

Check the pole count, current rating and AC/DC requirement before ordering.
Check conductor sizes against the terminal sizes listed.
Installation should be carried out by a suitably qualified person.
