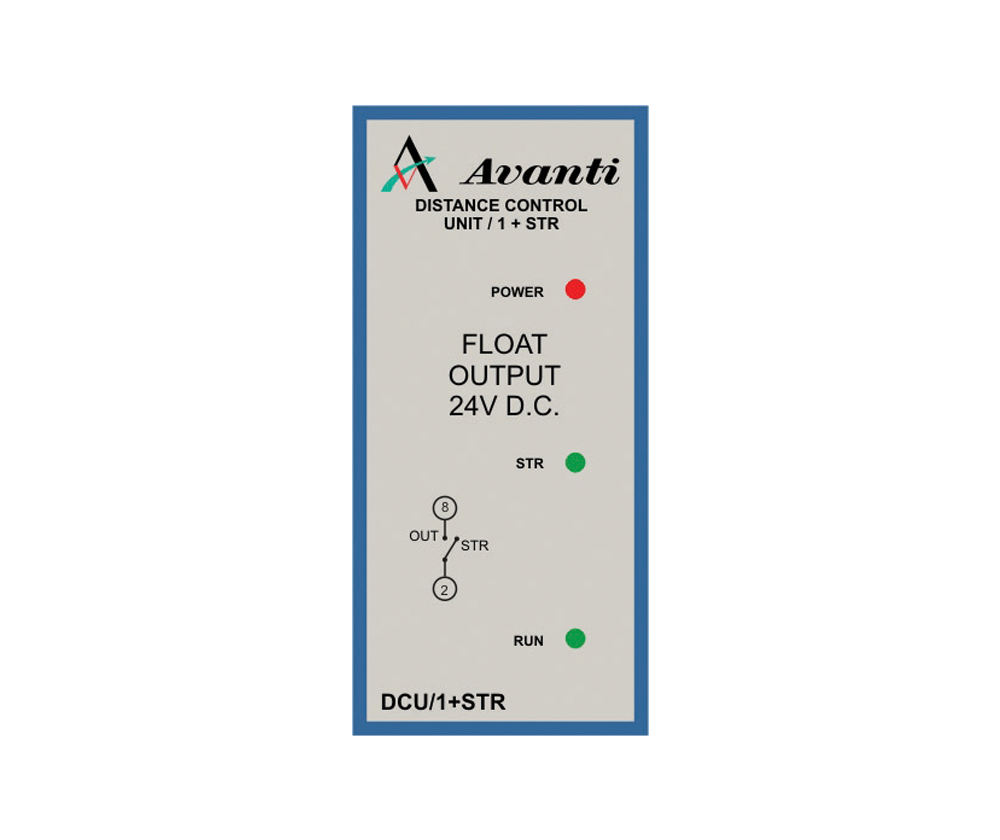

Distance Control Unit, Single Pump

The Avanti Distance Control Unit (DCU) is a remote float switch relay designed to control water levels in dams, reservoirs and tanks over long distances. It converts a simple float switch signal into a 24V DC output that can be run up to 4km away using standard 1.5mm copper wire, making it suitable for borehole users, farmers, property managers and installers who need to start or stop a single pump from a float positioned far from the control panel.

• Application: Suitable for single-pump water level control on dams, reservoirs, tanks and boreholes
• Key specification: 24V DC float circuit, supports both 2-wire (on/off) and 3-wire (separate start/stop float) control
• Distance: Up to 4km using 1.5mm copper wire cable
• Supply voltage: Available in 230V AC or 400V AC
• Indication: Power, STR and Run LED indicators for at-a-glance status

Key Features

• Two control modes on the same unit: 2-wire for simple float on/off switching, or 3-wire for separate stop and start floats
• Low-voltage (24V DC) float circuit keeps the float switch wiring safe over long cable runs
• Supports cable runs of up to 4km, ideal for dams and reservoirs where the float is far from the pump control panel
• Clear LED indication for power, float/start signal (STR) and pump run status
• Simple relay output for interfacing with a pump starter, contactor or control panel

Typical Applications

• Domestic and farm dam water level control
• Reservoir and tank level control
• Borehole water supply management
• Single-pump start/stop control from a remote float switch
• Tank-to-house or tank-to-irrigation transfer systems

Technical Specifications

What's Included

• 1 x Avanti Distance Control Unit (Model DCU/1+STR)

Please note: Float switches, control cable, enclosures, electrical protection and installation accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm your supply voltage (230V AC or 400V AC) before ordering — this determines whether you need the A-DCU-M or A-DCU-Q variant.
• Decide whether your application needs simple 2-wire float on/off control or 3-wire separate start/stop float control, and wire accordingly using the terminal layout supplied with the unit.
• The float circuit operates at 24V DC — do not connect mains voltage directly to the float terminals.
• Keep float cable runs within the 4km maximum using 1.5mm copper wire.
• Installation should be carried out by a suitably qualified electrician.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? If you are unsure whether this product is suitable for your system, contact Zisabo with your application details, required control mode, float distance, pump count and supply voltage, and we will assist where possible.
