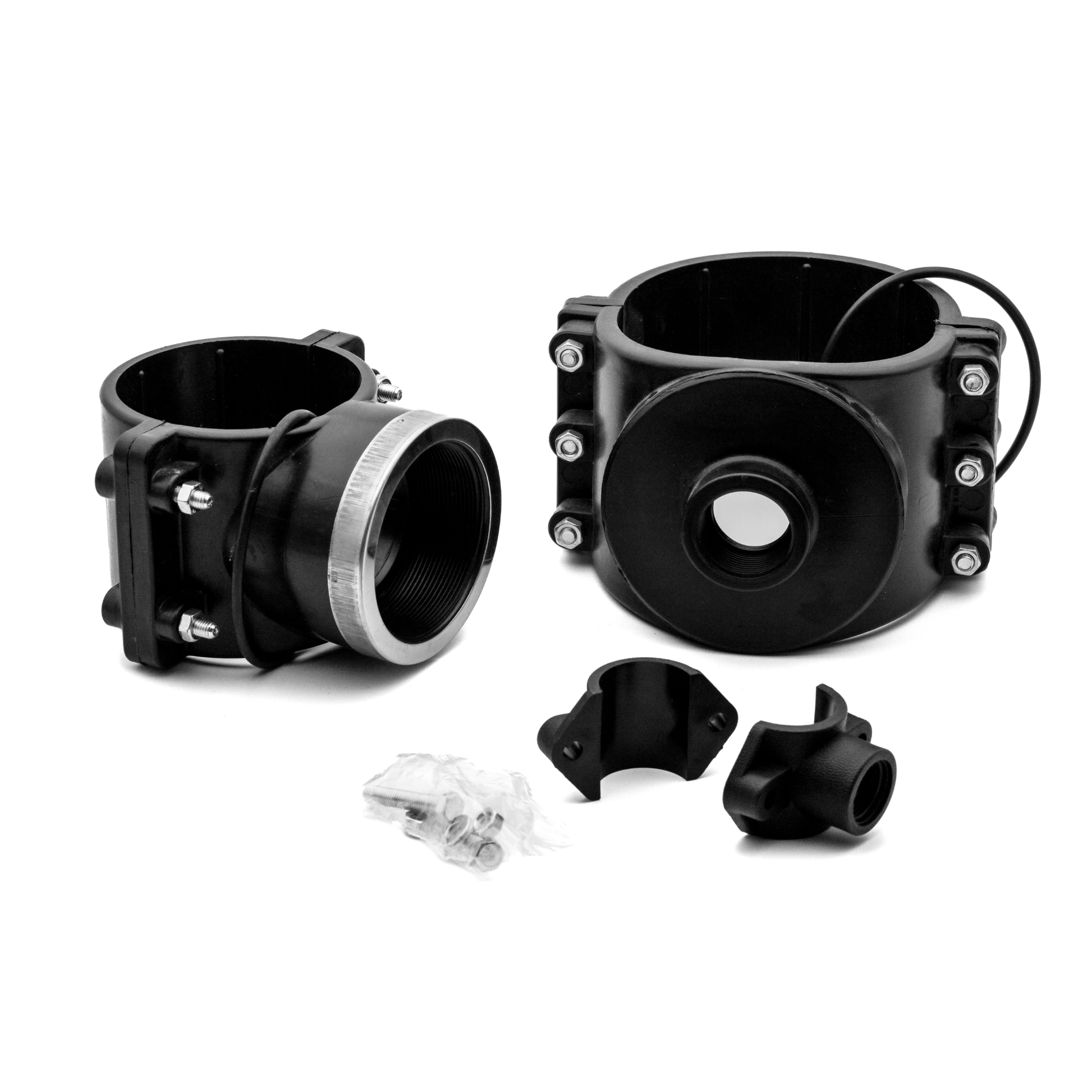

Donsen Compression Saddle PN16

The Donsen Compression Saddle PN16 is used to create a secure threaded branch connection from a compatible PE or HDPE pipe line. It is ideal for higher-pressure cold-water applications where a branch outlet, riser, valve or threaded fitting needs to be added to an existing pipe run.

The saddle clamps around the main pipe and provides a BSP threaded outlet for connecting irrigation fittings, valves, take-off lines and other water system components.

Key Features

• PN16 reinforced clamp saddle for PE or HDPE pipe systems
• Creates a threaded branch outlet from a main pipe line
• Higher pressure rating than PN10 saddle ranges
• Useful for irrigation take-offs, water points and branch connections
• No full pipe section removal required like a standard tee fitting
• Suitable for cold-water irrigation, garden and agricultural applications
• Available in multiple main pipe and outlet thread size combinations

Typical Applications

• Irrigation branch connections
• Garden and landscaping water systems
• Agricultural water distribution
• Connecting risers, valves and threaded fittings to PE pipe
• Adding take-off points to existing pipe lines
• Higher-pressure cold-water PE/HDPE pipe installations

Installation Notes

• Confirm the main pipe outside diameter and threaded outlet size before purchase.
• Ensure the pipe surface is clean before fitting the saddle.
• Position the saddle correctly and tighten bolts evenly to create a secure seal.
• Drill the pipe only after the saddle is correctly positioned and secured.
• Use suitable thread seal tape when connecting threaded fittings where required.

Important Note

Please confirm the pipe size, outlet thread size and pressure requirements before purchase. This product is intended for compatible PE/HDPE cold-water pipe systems and should be installed correctly to achieve a reliable seal.
