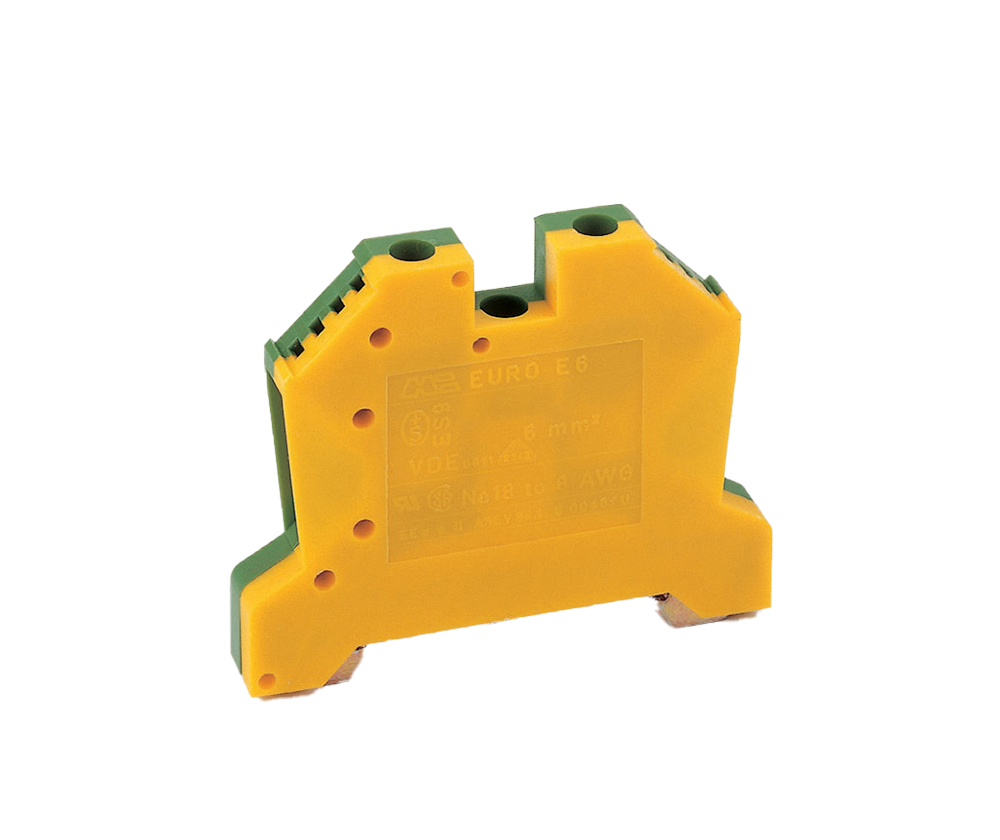

Earth Terminal Block – Green/Yellow | Polyamide 6.6 | DIN Rail | 4mm to 50mm

These green/yellow earth (PE) terminal blocks are manufactured from Polyamide 6.6 (PA6.6) and are designed for earthing and protective earth conductor termination on DIN rail. The green/yellow colour coding identifies them immediately as protective earth terminals in accordance with wiring standards. Available in sizes from 4mm² to 50mm² to suit a wide range of earth conductor cross-sections used in control panels, distribution boards, switchgear, and industrial installations. Sold individually.

• Application: Protective earth (PE) conductor termination on DIN rail
• Colour: Green/Yellow – PE identification
• Material: Polyamide 6.6 (PA6.6)
• Sizes available: 4mm / 6mm / 10mm / 25mm / 50mm
• Mounting: Standard DIN rail snap-on
• Termination: Screw clamp

Key Features

• Green/yellow colour coding for immediate PE identification in compliance with electrical wiring standards
• Polyamide 6.6 body – flame-retardant, heat-resistant engineering plastic
• Screw clamp termination for reliable, secure earth conductor connection
• Snap-on DIN rail mounting for fast installation and removal
• Full size range from 4mm² to 50mm² to accommodate all common earth conductor sizes
• Sold individually – order exactly the quantity required

Typical Applications

• Protective earth (PE) conductor termination in control panels and distribution boards
• Earth bar connections in industrial switchgear and MCC panels
• Machine wiring and process control panel earthing circuits
• DIN rail earthing terminal rows in junction boxes and enclosures
• Any installation requiring clearly identified, dedicated earth terminals on DIN rail

Technical Specifications

Variant Specifications

What's Included

• 1 x Earth Terminal Block in selected size

Please note: DIN rail, end plates, protective covers, bridge bars, and markers are not included. Compatible earth terminal accessories are available in the Zisabo terminal block accessory range.

Installation & Compatibility Notes

• Select the earth terminal size based on the earth conductor cross-section being terminated.
• Ensure the conductor cross-section falls within the wire range for the selected terminal size.
• Green/yellow terminals must only be used for protective earth (PE) conductors in accordance with SANS 10142 and applicable wiring regulations.
• Compatible end plates, covers, and accessories from the Zisabo standard terminal range should be verified for fit with earth terminal blocks before ordering.
• Mount on standard 35mm DIN rail and terminate conductors with an appropriate screwdriver.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation and correct application. Zisabo supplies quality electrical panel accessories with practical support. Contact us if you need assistance selecting the correct earth terminal size or compatible accessories for your installation.
