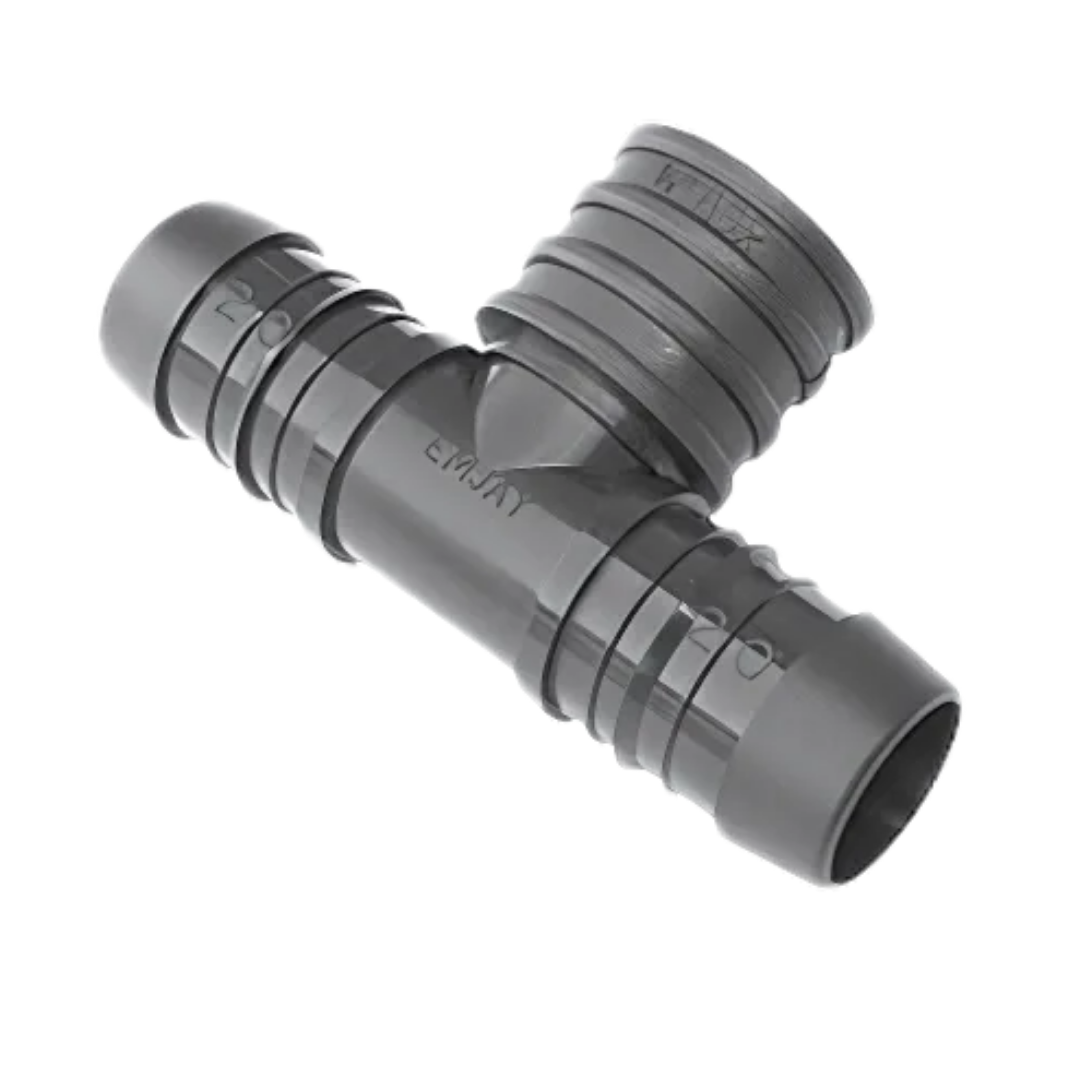

Emjay Nylon Female Tee – Barbed Poly Pipe x BSP Female Branch Fitting, 15mm to 50mm

The Emjay Nylon Female Tee is a barbed-to-female-BSP threaded branch fitting for poly irrigation pipe systems. The two inline ends are barbed and insert into the poly pipe run; the branch outlet is a BSP female thread that accepts a male-threaded fitting, nipple, or riser. Used to take a female-threaded branch connection off a poly pipe main line or lateral. Available in a wide range of pipe and BSP thread size combinations — select the required variant. Manufactured by Microjet Irrigation Systems in South Africa.

• Connection: Barbed (inline, both ends) × BSP female thread (branch)
• Material: Nylon
• Inline pipe sizes: 15mm, 20mm, 25mm, 32mm, 40mm, 50mm (see variants)
• Branch thread sizes: ½" BSP, ¾" BSP, 1" BSP and more (see variants)
• Brand: Emjay / Microjet Irrigation Systems

Key Features

• Creates a female BSP branch from a poly pipe run – accepts male-threaded fittings or risers
• Both inline ends barbed – insert directly into poly pipe bore
• BSP female branch – accepts male threaded nipples, valves, or sprinkler bodies
• Nylon construction – UV-resistant and durable for outdoor irrigation use
• Wide range of pipe/thread combinations available

Typical Applications

• Taking a female-threaded branch outlet off a poly irrigation main line
• Connecting male-threaded risers, valves, or sprinklers to poly pipe laterals
• Drip and micro irrigation branch connections requiring a female port

Technical Specifications

What's Included

• 1 x Emjay Nylon Female Tee (selected pipe size × BSP thread size)

Please note: Select the variant matching your pipe bore and the male BSP thread of your branch fitting. A pipe clamp is recommended on barbed ends under operating pressure.
