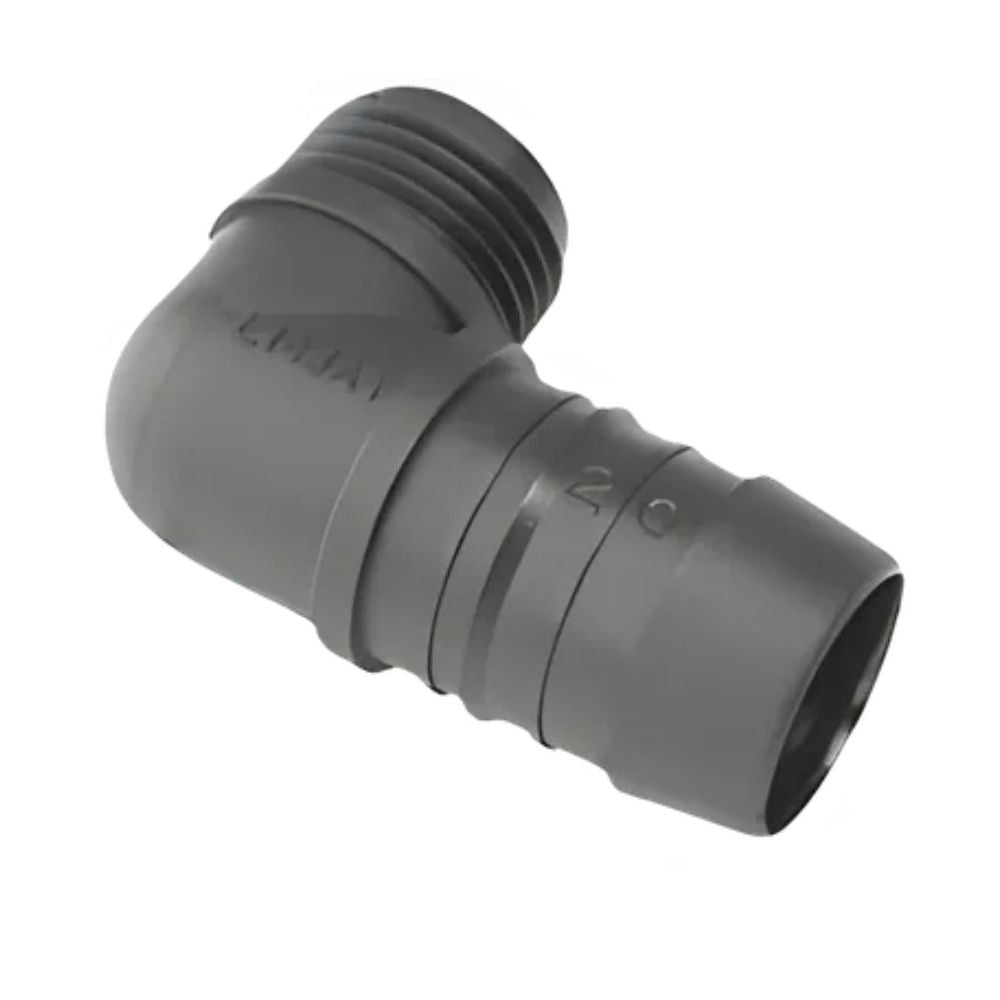

Emjay Nylon Male Elbow – Barbed Poly Pipe x BSP Male 90° Fitting, 13mm to 50mm

The Emjay Nylon Male Elbow is a 90° barbed-to-male-BSP threaded irrigation fitting used to change direction in a poly pipe run while making a male-threaded connection. The barbed end inserts into the poly pipe; the male BSP thread screws into a female-threaded valve, sprinkler, or fitting. Available in a range of pipe size and BSP thread combinations from 13mm to 50mm — select the required variant. Manufactured by Microjet Irrigation Systems in South Africa.

• Connection: Barbed insert (poly pipe) × BSP male thread — 90° angle
• Material: Nylon
• Pipe sizes: 13mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm (see variants)
• Thread sizes: ½" BSP to 2" BSP (see variants)
• Brand: Emjay / Microjet Irrigation Systems

Key Features

• 90° direction change with male BSP thread outlet — combines elbow and adaptor in one fitting
• Barbed insert end – grips positively into poly pipe bore
• BSP male thread – screws into standard female BSP fittings, valves, or sprinklers
• Nylon construction – UV-resistant and durable for outdoor irrigation use

Typical Applications

• Changing direction from poly pipe to a threaded fitting, valve, or sprinkler
• Poly pipe connections to sprinkler risers at 90°
• Corner connections in drip and micro irrigation laterals

Technical Specifications

What's Included

• 1 x Emjay Nylon Male Elbow (selected pipe size × BSP thread size)

Please note: Select the variant matching your pipe bore and the female BSP thread of your fitting. A pipe clamp is recommended under operating pressure.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty.
