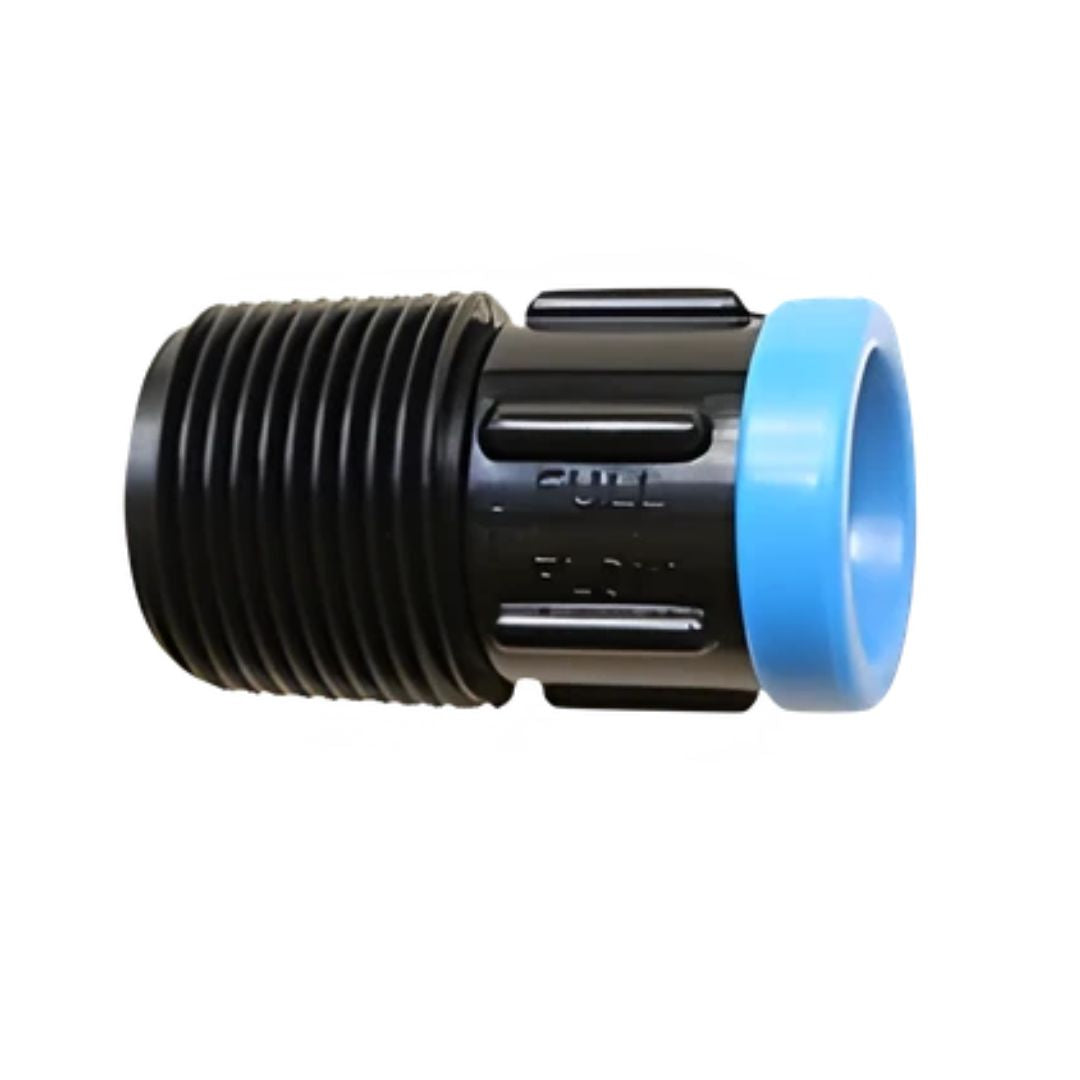

Full Flow Male Adaptor – Compression to BSP Male Thread 15mm to 25mm

The Microjet Full Flow Male Adaptor transitions from poly irrigation pipe (compression connection) to a BSP male threaded outlet. One end uses the Full Flow compression system for poly pipe; the other is a male BSP thread that screws into a female BSP port on a filter, pump, valve, manifold, or other threaded fitting. Available in 15mm, 20mm, and 25mm pipe sizes with ½", ¾", and 1" BSP thread options.

• Application: Connecting poly irrigation pipe to female BSP threaded components
• Pipe sizes: 15mm, 20mm, 25mm
• Thread sizes: ½" BSP, ¾" BSP, 1" BSP
• Connection type: Full Flow compression one end, male BSP thread the other
• Made by Microjet Irrigation Systems, South Africa

Key Features

• One-piece adaptor — no separate fittings needed to transition from poly pipe to BSP thread
• Full Flow compression end locks onto poly pipe without glue or heat
• Male BSP thread connects to filters, valves, manifolds, and pumps with female BSP ports
• Available in 8 combinations of pipe size and thread size
• Compatible with the full Full Flow fitting range

Typical Applications

• Connecting poly supply pipe to a filter with a female BSP inlet
• Terminating a poly mainline at a pump, valve, or manifold with female BSP ports
• Agricultural, garden, and commercial irrigation system connections

Technical Specifications

What's Included

• 1 x Full Flow Male Adaptor (selected pipe size and thread size) with compression nut and gripper ring

Please note: Apply PTFE tape to the male BSP thread. Pipe not included. Confirm both pipe size and thread size before ordering.

Installation & Compatibility Notes

Apply PTFE tape to the male BSP thread before screwing into the female port. Hand-tighten plus 1–2 turns only — do not overtighten polyprop threads. Push poly pipe squarely into the compression end and tighten the compression nut. Confirm the receiving fitting has a female BSP thread of the same size.

Warranty & Support

Manufactured by Microjet Irrigation Systems, South Africa. Supplied with applicable manufacturer warranty subject to correct installation.
