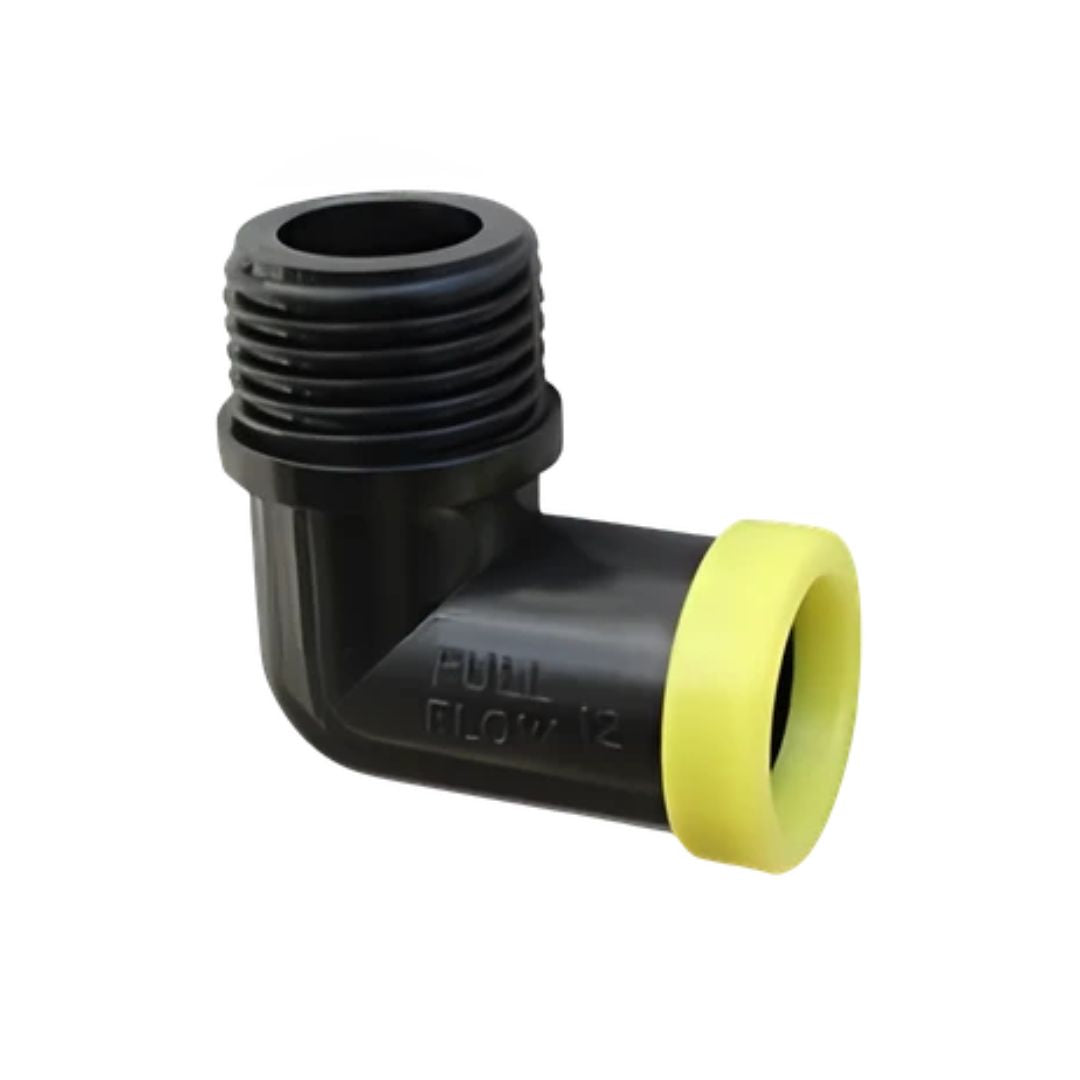

Full Flow Male Elbow – Compression Poly Pipe to BSP Male Thread 90° Elbow

The Microjet Full Flow Male Elbow is a 90° elbow fitting that connects poly irrigation pipe (via Full Flow compression on one end) to a female BSP threaded port (via male BSP thread on the other). It is used where a poly pipe must turn and connect to a threaded component in one fitting. Available in 12mm, 15mm, 20mm, and 25mm pipe sizes with ½", ¾", and 1" BSP thread options.

• Application: 90° poly pipe to female BSP threaded connection
• Pipe sizes: 12mm, 15mm, 20mm, 25mm
• Thread: ½" BSP, ¾" BSP, 1" BSP male
• Connection type: Full Flow compression one end, male BSP thread the other
• Made by Microjet Irrigation Systems, South Africa

Key Features

• Combines a 90° direction change with a poly-to-BSP thread transition in one fitting
• Full Flow compression end for secure poly pipe connection without glue
• Male BSP thread screws into female BSP ports on filters, valves, and manifolds
• Available in 9 pipe-and-thread combinations from 12mm x ½" to 25mm x 1"
• Compatible with the full Full Flow fitting range

Typical Applications

• Connecting a poly sub-main at 90° into a filter or valve with a female BSP inlet
• Right-angle termination of a poly line into a threaded manifold port
• Agricultural and garden irrigation system connections where space is limited

Technical Specifications

What's Included

• 1 x Full Flow Male Elbow (selected size) with compression nut and gripper ring

Please note: Apply PTFE tape to the male BSP thread. Pipe not included. Confirm pipe size and thread size before ordering.

Installation & Compatibility Notes

Apply PTFE tape to the male BSP thread. Screw into the female BSP port before tightening — do not overtighten polyprop threads. Insert poly pipe squarely and tighten the compression nut. Confirm the matching component has a female BSP thread of the same size.

Warranty & Support

Manufactured by Microjet Irrigation Systems, South Africa. Supplied with applicable manufacturer warranty subject to correct installation.
