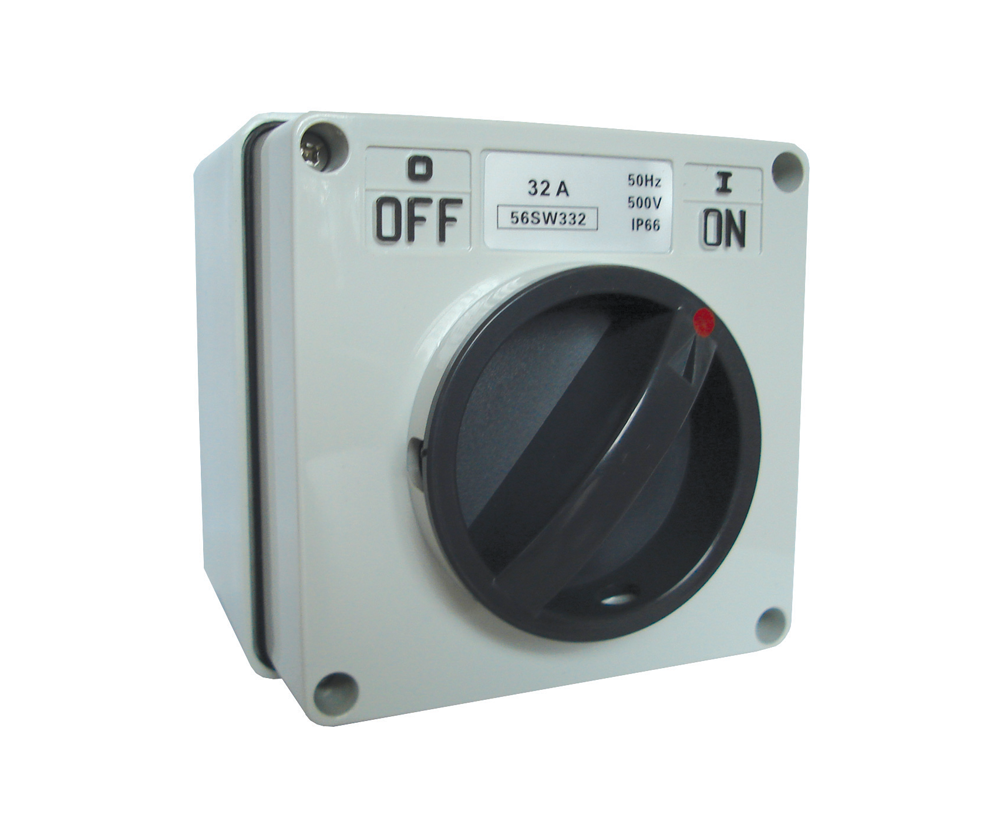

Lockable Surface Mount Isolator IP65, 16A-63A, 3 Pole, Grey | MCE 56SW

Lockable Surface Mount Isolator IP65, 16A-63A, 3 Pole, Grey | MCE 56SW

Regular price R 353.00
Regular price Sale price R 353.00
Taxes included. Shipping calculated at checkout.
Current Rating
Poles
Quantity

The MCE 56SW is a lockable 3 pole isolator supplied in a grey IP65 surface mount enclosure, used to switch off and lock out equipment locally for safe maintenance. It suits electricians, installers and maintenance teams, and is available in 16A, 32A and 63A ratings.

  • Application: Local isolation of motors, pumps and machinery
  • Current range: 16A, 32A and 63A
  • Poles: 3 pole
  • Protection: IP65 enclosure (per MCE catalogue)
  • Mounting: Surface mount, lockable

Key Features

  • Lockable operation allows the isolator to be locked off during maintenance
  • Ready-to-fit enclosure means no separate box is needed
  • IP65 enclosure suits dusty and splash-exposed locations
  • Rated for motor loads of 5.5kW (16A), 15kW (32A) and 30kW (63A) per MCE

Typical Applications

  • Local isolation next to motors, pumps and compressors
  • Machine and plant isolation in workshops and factories
  • Isolator installation for air conditioning and fixed equipment
  • Domestic, commercial or light industrial use

Technical Specifications

Brand MCE Electric
Model 56SW (56SW316, 56SW332, 56SW363)
Product type Lockable surface mount isolator in enclosure
Rated current 16A, 32A, 63A
Poles 3 pole
Motor rating 16A: 5.5kW, 32A: 15kW, 63A: 30kW (per MCE)
Protection rating IP65 (per MCE catalogue)
Enclosure colour Grey
Rated voltage Not specified by supplier

What’s Included

  • 1 x lockable surface mount isolator in enclosure, in the current rating selected

Please note: Installation fittings, electrical protection, cartridges, control boxes, cables, unions, brackets, or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

  • An isolator is a switch only. It does not protect against overload or short circuit, so fit a suitably rated breaker or fuse in the circuit.
  • Select a rating at or above the full-load current of the motor or equipment being isolated.
  • This is a 3 pole isolator. Check your supply and whether the neutral must be isolated.
  • Use suitable cable glands to maintain the enclosure protection rating.
  • Installation should be carried out by a suitably qualified person, with a Certificate of Compliance issued where required.

Warranty & Support

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? If you are unsure whether this product is suitable for your system, contact Zisabo with your supply type, load current and number of poles required, and we will assist where possible.
