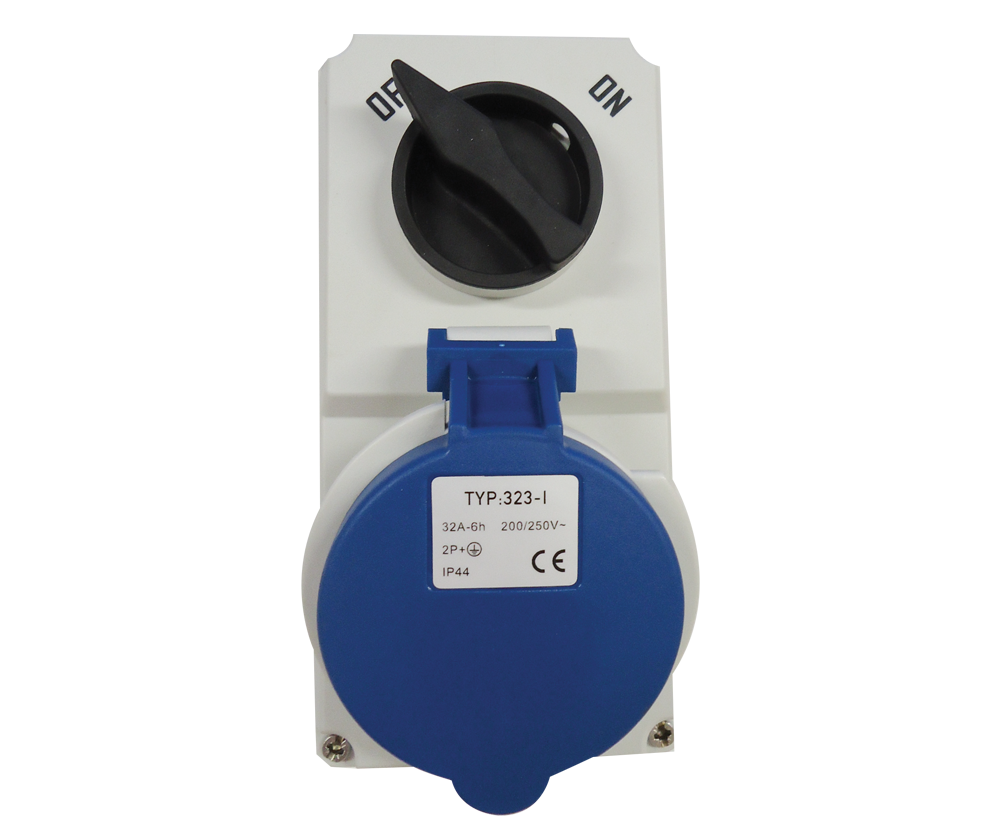

Industrial Interlocked Switched Socket (SSO) – IP44 | 16A & 32A | 230V & 415V | Surface Mount

The Industrial Interlocked Switched Socket (SSO) range provides safe, controlled power outlets for industrial, commercial, and outdoor installations requiring mechanical interlocking. The interlock mechanism prevents the plug from being inserted or removed while the switch is in the ON position, eliminating the risk of connecting or disconnecting a live plug. Rated at IP44 for protection against solid particles and water splashing, these surface-mount sockets are suitable for workshops, factories, plant rooms, and covered outdoor areas. Available in 16A and 32A ratings, and in 3-pin (230V single phase), 4-pin (415V 3-phase), and 5-pin (415V 3-phase + neutral) configurations.

• Application: Industrial and commercial interlocked power outlet – safe plug change under no-load conditions
• Current Ratings: 16A and 32A
• Configurations: 3-pin 230V, 4-pin 415V, 5-pin 415V
• Protection Rating: IP44 – splash and dust resistant
• Interlock: Mechanical interlock prevents plug insertion/removal under load
• Mounting: Surface mount

Key Features

• Mechanical interlock prevents plug insertion or removal while switch is ON – key safety feature for industrial use
• IP44 protection rating – splash and dust resistant, suitable for covered outdoor and industrial environments

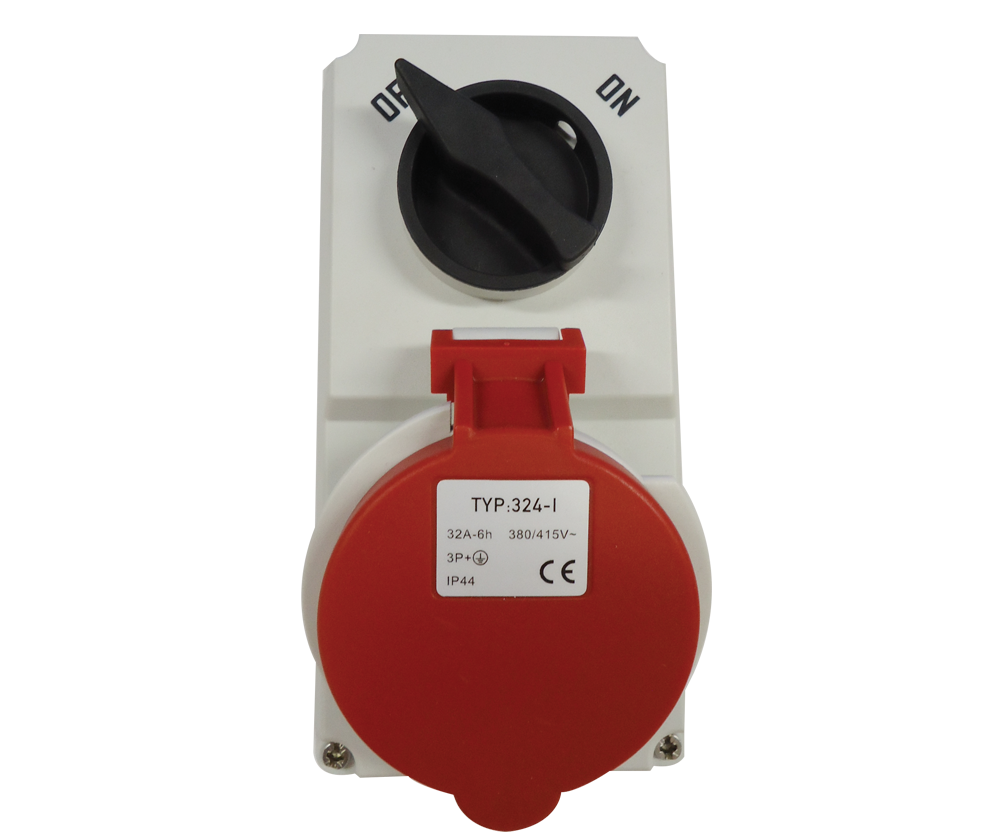

• Available in 3-pin (2P+E 230V), 4-pin (3P+E 415V), and 5-pin (3P+N+E 415V) configurations
• Surface-mount housing for straightforward wall or enclosure installation
• IEC 60309 / CEE format compatible with standard industrial plugs
• Integrated rotary switch with clear ON/OFF indication

Typical Applications

• Industrial machinery and equipment connection points
• Workshop and factory power distribution panels
• Pump and motor starter connection points
• Commercial kitchen and food processing equipment outlets
• Agricultural and irrigation pump power points
• Covered outdoor power points on commercial and industrial sites

Technical Specifications

Variant Reference

What's Included

• 1 x Interlocked Switched Socket in selected specification

Please note: Mounting hardware, conduit, wiring accessories, and plugs are not included. Plugs must be compatible IEC 60309 industrial plugs of the correct current rating and pin configuration.

Installation & Compatibility Notes

• Confirm your supply voltage (230V or 415V) and phase configuration before selecting a variant.
• Select 3-pin for single-phase 230V; 4-pin for 3-phase 415V without neutral; 5-pin for 3-phase 415V with neutral.
• The interlock prevents plug insertion/removal with the switch in the ON position – always switch OFF before plugging or unplugging.
• IP44 is suitable for covered outdoor or splash-prone areas. For fully exposed outdoor or submerged-risk environments, use IP67-rated products.
• Use only compatible IEC 60309 plugs of matching current rating and pin configuration.
• Installation must be carried out by a suitably qualified electrician in accordance with SANS 10142.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms. Zisabo supplies quality electrical products with practical support to help customers choose the correct item for their application. If you are unsure which variant is correct for your installation, contact us before ordering.
