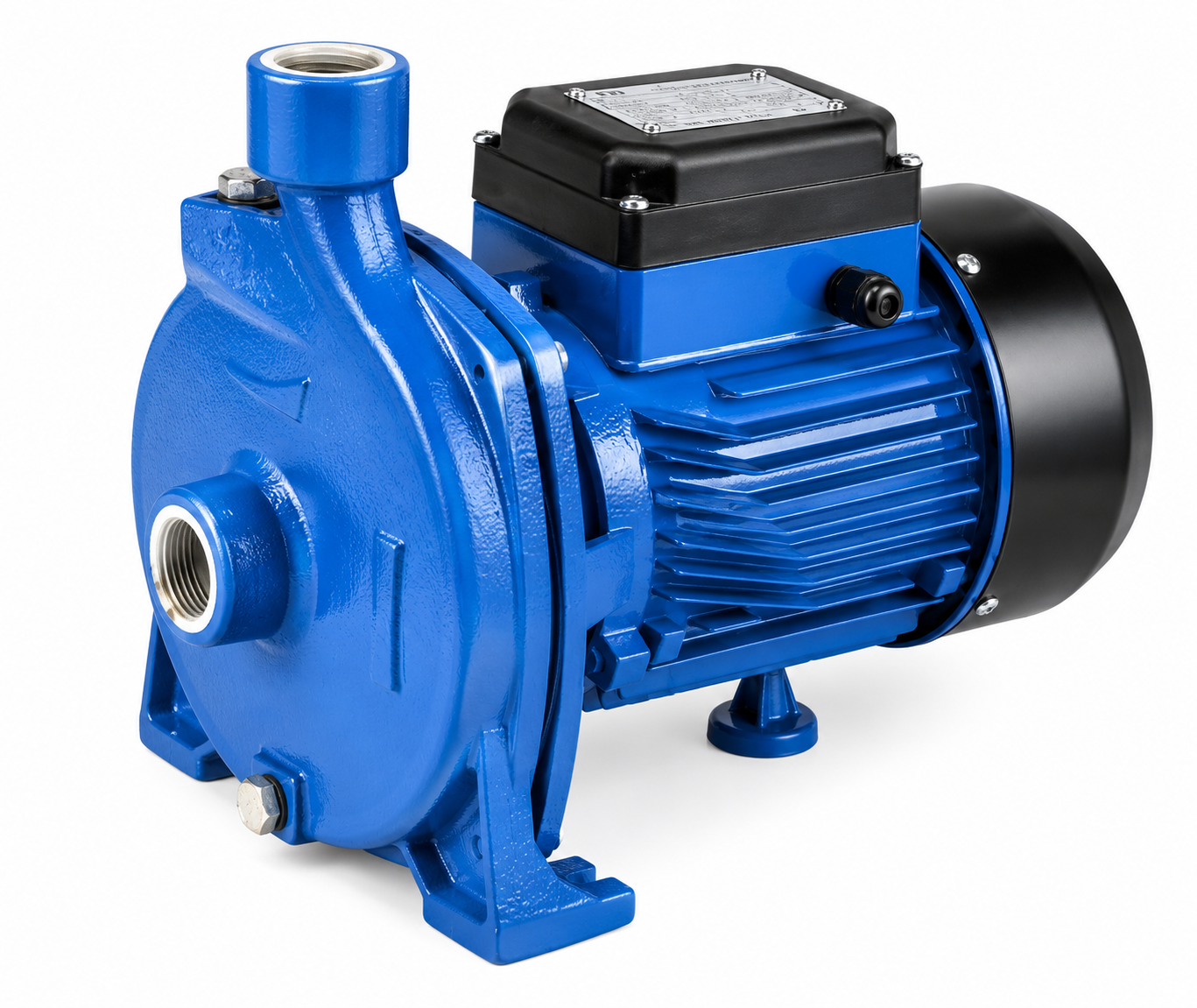

Johntech CPM & CPW Series Single Stage Centrifugal Pump

• Application: Rainwater tanks, garden irrigation, water transfer, HVAC, pressure boosting and urban water supply
• Power range: 0.33kW (CPM-128) up to 2.20kW (CPW-300), single phase, 230V
• Max flow: up to 150 L/min (CPW-300)
• Max head: up to 46m (CPW-300)
• Non-self-priming: suction point must be installed below tank water level

Key Features

• Cast iron pump body and front cover with an aluminium motor housing and brass impeller
• Energy efficient, low noise operation, built for heavy duty continuous work
• Automatic start/stop and run-dry protection when fitted with a PS-01 controller (optional extra, sold separately; PS-01A for CPW-300)
• Motor fitted with an overload switch and total electric separation
• Carbon/ceramic/stainless steel mechanical seal for simple servicing
• Liquid temperature stability up to 60°C
• Class B insulation, IP44 protection, stainless steel/carbon steel shaft, externally ventilated cooling
• Fully factory tested and pre-wired with cable
• 12-month ex-factory warranty under normal operating conditions from date of purchase

Typical Applications

• Domestic rainwater harvesting tank supply
• Small to medium garden irrigation systems
• Long distance water transfers
• Heating, ventilation and air-conditioning (HVAC) systems
• Pressure boosting water pipe systems and urban water supply systems

Technical Specifications

Full flow/head/connection data for CPM-128 was not included in the supplier catalogue provided - contact Zisabo for confirmation of this model's performance figures before ordering.

What's Included

• 1 x Johntech CPM or CPW Series pump (model as selected), pre-wired with cable

Please note: The PS-01/PS-01A controller, pipe fittings, foot valve and installation accessories are not included unless specifically listed above.

Installation & Compatibility Notes

This is a non-self-priming pump - the suction point must always be installed below the water level of the tank, and the pump itself must be installed on a flat, dry surface that will not flood in heavy rain. Confirm your required flow rate and head fall within the selected model's range, and that pipework matches the connection size. Add a PS-01 controller (PS-01A for CPW-300) for automatic start/stop and run-dry protection - sold separately. Use a qualified installer for all electrical and plumbing connections, and contact Zisabo if you are unsure which model is right for your application.

Warranty & Support

This Johntech CPM/CPW Series pump is supplied with a 12-month ex-factory warranty under normal operating conditions from date of purchase. Zisabo supplies quality pumps and water solutions with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.
