Joystick Controller – 22mm or 30mm, 2 or 4 Direction | MCE XD4 & XD7

The MCE XD4 and XD7 joystick controllers are panel-mount multi-direction control switches for cranes, hoists and machinery. They suit electricians, panel builders and crane maintenance teams who need a joystick with 2 or 4 directions in a 22mm (XD4) or 30mm (XD7) mounting size.

• Application: Directional control for cranes and machinery

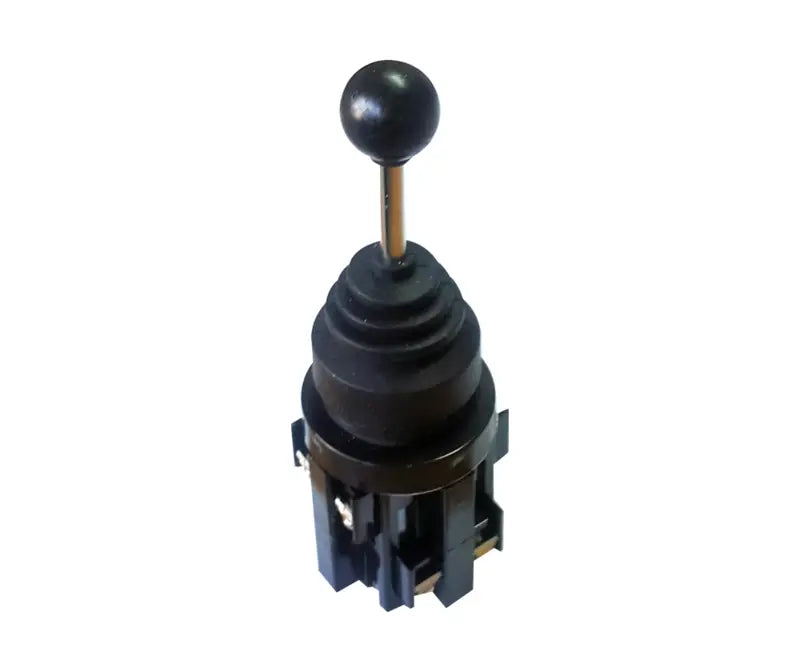

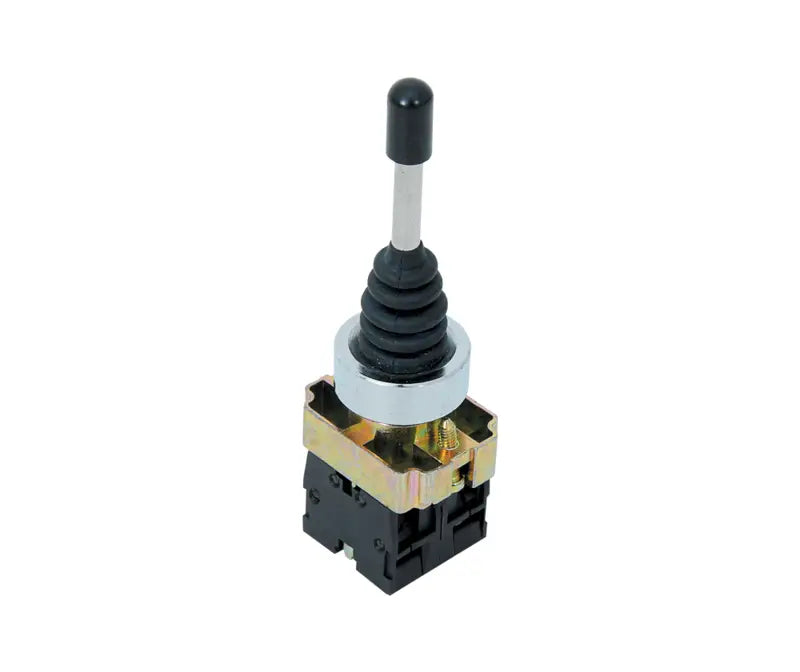

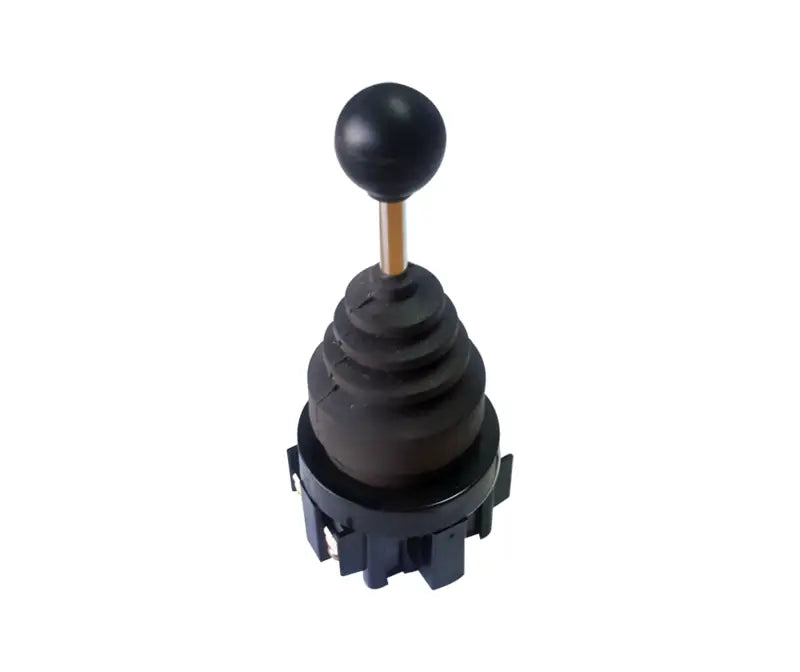

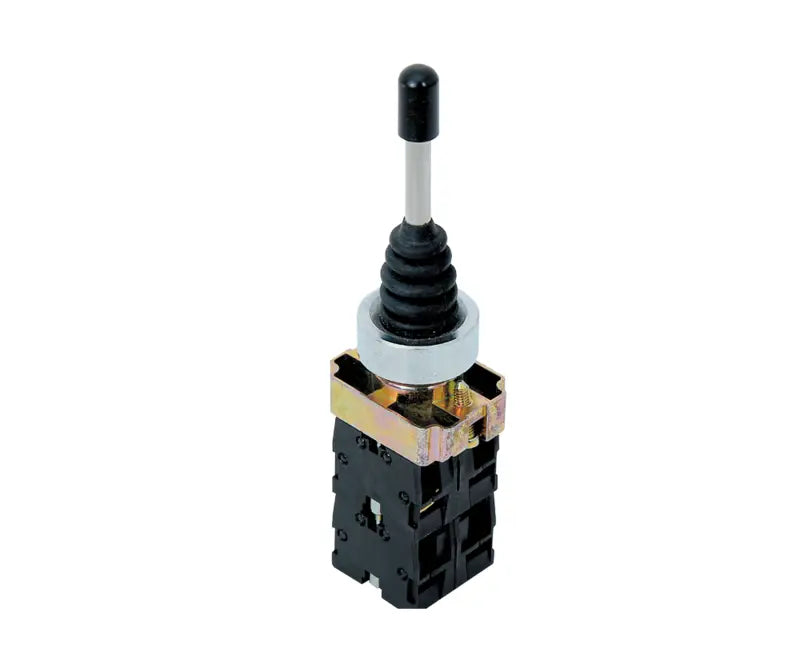

• Mounting sizes: 22mm (XD4) and 30mm (XD7)
• Directions: 2 direction (2NO) or 4 direction (4NO)
• Models: PA12 and PA22 (2 direction), PA14 and PA24 (4 direction)

Key Features

• Two mounting sizes to suit different cut-outs
• Two-direction and four-direction versions
• One NO contact per direction

Typical Applications

• Overhead crane and hoist control
• Machine directional control stations
• Control panels and pendant stations

Technical Specifications

Variant Reference

What's Included

• 1 x joystick controller in the selected model

Please note: Enclosures, wiring and additional contact blocks are not included.

Installation & Compatibility Notes

• Confirm the mounting size (22mm or 30mm) and number of directions before ordering.
• Confirm the PA12/PA22 (or PA14/PA24) difference with Zisabo, as it is not stated in the supplier data.
• Installation and wiring must be carried out by a suitably qualified person in accordance with SANS 10142.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms. Zisabo supplies quality electrical products with practical support to help customers choose the correct item for their application. If you are unsure which variant is correct, contact us before ordering.

Need help choosing? Send Zisabo the mounting size, number of directions and your control voltage, and we will assist where possible.
