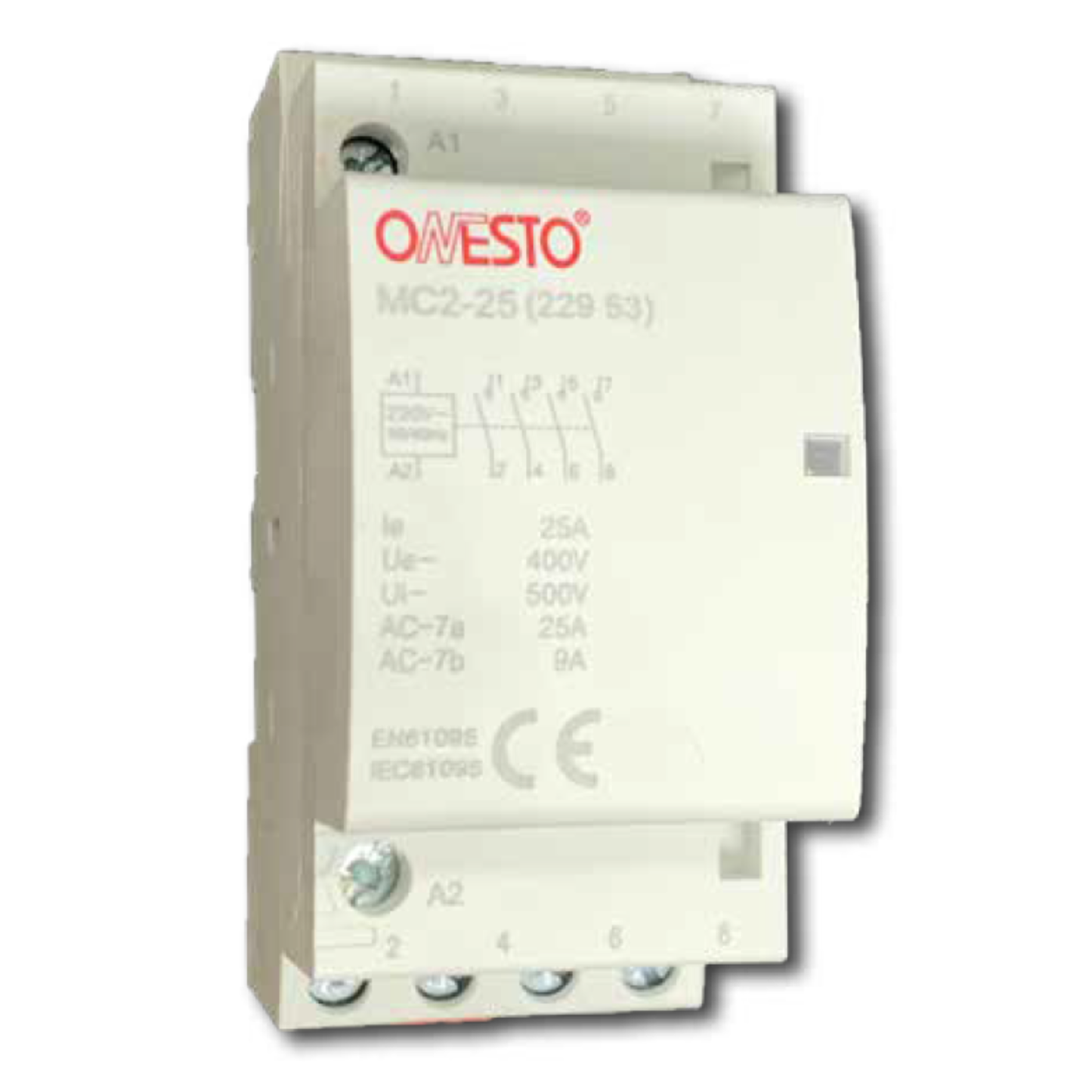

MC2 Modular Contactor Range 16A–25A | 3P & 4P | 230V Coil | DIN Rail Mount (36mm)

The MC2 Modular Contactor range is designed for efficient switching of electrical loads in residential, commercial, and light industrial distribution boards. With a compact 36mm DIN rail footprint and a standard 230V AC coil, these contactors are a practical choice for lighting circuits, pump control, HVAC switching, and general load automation. Available in 16A, 20A, and 25A ratings across a full range of 3-pole and 4-pole contact configurations to suit your specific application.

• Application: Load switching in distribution boards, lighting automation, pump and HVAC control
• Current Ratings: 16A, 20A, and 25A
• Poles: 3-pole and 4-pole configurations available
• Contact Arrangements: 3NO, 4NO, 2NO+2NC, 3NO+1NC, 2NO+1NC
• Coil Voltage: 230V AC
• Mounting: 36mm DIN rail

Key Features

• Compact 36mm modular DIN rail design – space-saving for busy distribution boards
• Standard 230V AC coil – compatible with most domestic and commercial control circuits
• Wide range of contact configurations – 3NO, 4NO, 2NO+2NC, 3NO+1NC, and 2NO+1NC available
• 3-pole models suitable for 3-phase or single-phase switched neutral applications
• 4-pole models provide full isolation of all live conductors including neutral
• High electrical and mechanical endurance for reliable long-term operation
• Quiet operation – suitable for residential and office environments

Typical Applications

• Lighting circuit switching and automation in domestic and commercial DB boards
• Water pump and borehole pump control systems
• HVAC, air conditioning, and ventilation switching
• Solar system load control and inverter integration
• General single-phase and 3-phase load switching
• Timer and contactor-based automation circuits

Technical Specifications

Available Variants

What's Included

• 1 x MC2 Modular Contactor in selected rating and contact configuration

Please note: Control wiring, auxiliary contacts, timers, and mounting accessories are not included unless specifically listed.

Installation & Compatibility Notes

• Confirm your required current rating (16A, 20A, or 25A) based on the load being switched.
• Select 3-pole for most lighting and pump applications; 4-pole where full isolation including neutral is required.
• Choose the correct contact configuration (NO / NC ratio) to suit your control circuit logic.
• Coil voltage is 230V AC – ensure your control circuit operates at 230V before ordering.
• Rated for DIN rail mounting – confirm DIN rail availability and panel space before installation.
• Installation should be carried out by a suitably qualified electrician in accordance with SANS 10142.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms. Zisabo supplies quality electrical products with practical support to help customers choose the correct item for their application. If you are unsure which variant suits your control circuit or load, contact us before ordering and our team will assist where possible.

Need help choosing? If you are unsure which MC2 variant is correct for your application, contact Zisabo with your load type, current requirement, and control circuit voltage and we will assist where possible.
