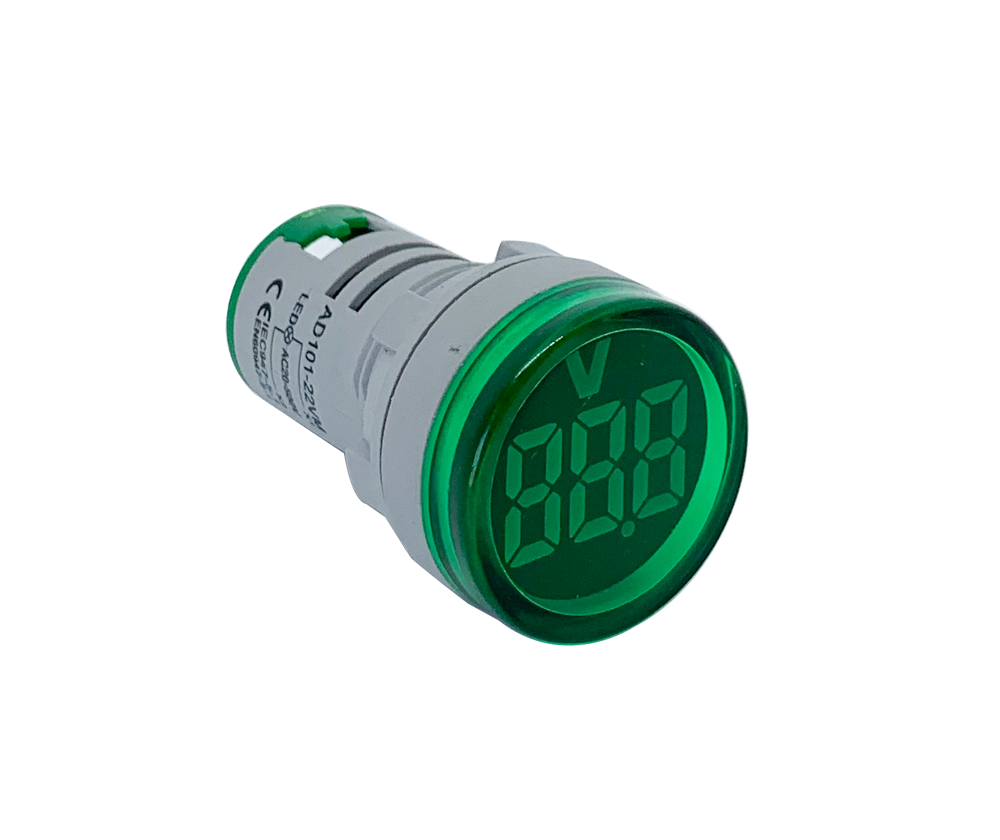

MCE AD22 22mm DC Digital Voltmeter – 5VDC to 60VDC

The MCE AD22 22mm DC Digital Voltmeter is a compact round panel-mount instrument for monitoring DC voltage from 5VDC to 60VDC. The 22mm round format fits standard 22mm panel cutouts and is available in green and red LED display colours. Suitable for battery systems, solar and renewable energy panels, DC power supplies, and industrial DC equipment where clear voltage monitoring is required in a compact panel format.

• Application: DC voltage monitoring in battery systems, solar panels, DC power supplies, and industrial DC equipment
• Measurement range: 5VDC to 60VDC
• Cutout size: 22mm round
• Colours available: Green, Red

Key Features

• Compact 22mm round format – fits standard 22mm panel cutouts
• DC voltage range: 5VDC to 60VDC – suitable for 12V, 24V, 48V battery and DC systems
• Direct connection – no external shunt or transformer required
• Digital LED display for clear, accurate DC voltage readings

Typical Applications

• Battery voltage monitoring (12V, 24V, 48V systems)
• Solar panel and renewable energy system voltage display
• DC power supply and UPS battery monitoring
• Industrial DC control panel instrumentation
• Telecoms and data centre DC power monitoring

Technical Specifications

Variant Reference

What's Included

• 1 x AD22 22mm DC Digital Voltmeter (selected colour)

Please note: Panel cutout, wiring, and installation hardware are not included. For AC voltage monitoring, see the MCE AD22 22mm AC Digital Voltmeter (AD22-22VM-AC range).

Installation & Compatibility Notes

• Requires a 22mm round panel cutout
• For DC voltage measurements between 5VDC and 60VDC only – do not use on AC supply
• Installation should be carried out by a suitably qualified person

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms. Contact Zisabo for assistance selecting the correct panel instrument for your application.
