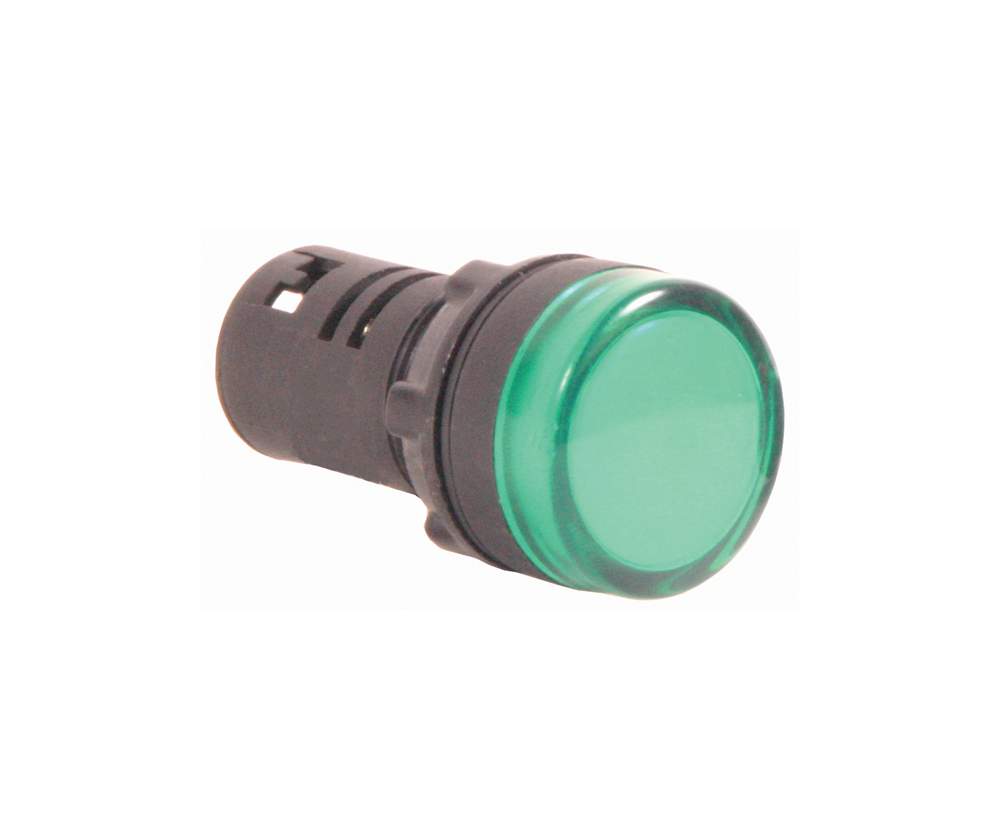

MCE AD22 22mm LED Pilot Light – 22mm Panel Mount Indicator

The MCE AD22 22mm LED Pilot Light is a compact panel-mount signal indicator for use in electrical control panels, motor starters, distribution boards, and industrial equipment. Available in five LED colours (Blue, Green, Red, White, Yellow) and four operating voltages (24V, 110V, 230V, 400V) to cover the full range of AC and DC panel applications. The 22mm round format fits standard 22mm panel cutouts. Select the correct colour and voltage for your specific panel.

• Application: Status and signal indication in control panels, motor starters, and distribution boards
• Colours available: Blue, Green, Red, White, Yellow
• Voltages available: 24V, 110V, 230V, 400V
• Cutout size: 22mm round
• Type: LED – low power, long service life

Key Features

• 22mm round format – fits all standard 22mm panel cutouts
• LED light source – low power consumption and long service life
• Available in 5 colours: Blue, Green, Red, White, Yellow
• Available in 4 voltages: 24V, 110V, 230V, 400V – select to match your panel voltage
• Suitable for AC and DC panel applications depending on voltage variant selected

Typical Applications

• Power-on indication in control panels
• Fault, run, stop, and alarm status indication
• Motor starter and DOL panel indication
• Distribution board phase and supply indication
• Generator panel status indication
• Pump and compressor control panel signalling

Technical Specifications

Variant Reference

What's Included

• 1 x AD22 22mm LED Pilot Light (selected colour and voltage)

Please note: Panel cutout, wiring, and installation hardware are not included. Confirm operating voltage before ordering.

Installation & Compatibility Notes

• Requires a 22mm round panel cutout
• Select the voltage variant that matches your panel supply voltage (24V, 110V, 230V, or 400V)
• Do not connect to a voltage other than the rated voltage for the selected variant
• Installation should be carried out by a suitably qualified electrician

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms. Zisabo supplies quality electrical products with practical support to help customers choose the correct item for their application.
