MCE Electric Automatic Pump Control (Pressure Switch), 220-240V

The MCE Electric Automatic Pump Control is an inline pressure switch that automatically starts and stops a pump based on system pressure, turning a manually-switched pump into a self-contained automatic pressure system. It fits between the pump outlet and the pipework and suits homeowners, contractors and installers adding automatic operation to a peripheral or centrifugal pump such as the MCE Electric HSm or HCm range.

• Application: Suitable for automatic start/stop control of domestic water pumps
• Key specification: 10A, 220-240V, IP65, 1" connection (1"¼ for HS-13A)
• Starting pressure: Fixed 1.5 Bar (HS-10, HS-13) or adjustable 1.5-3 Bar (HS-13A)

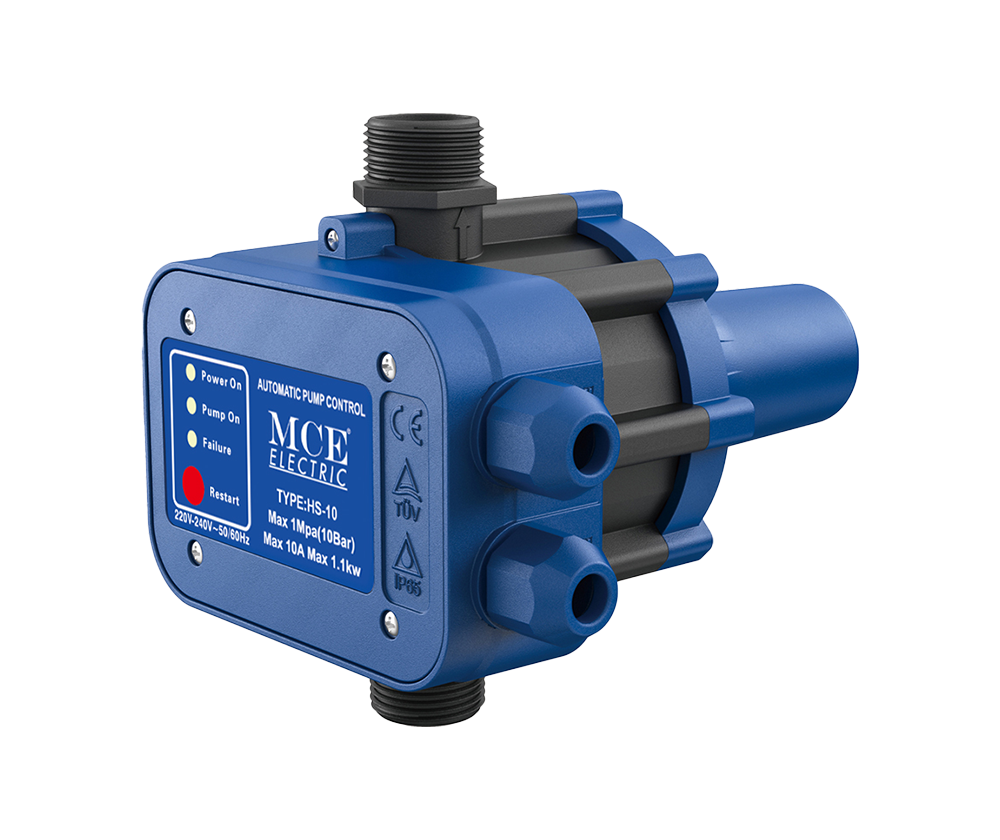

• Gauge: HS-13 and HS-13A include a built-in pressure gauge; HS-10 does not
• Max working pressure: 10 Bar

Key Features

• Automatically starts the pump when pressure drops and stops it when pressure is reached, without manual switching
• IP65 protection rating suitable for typical outdoor/pump-house installation

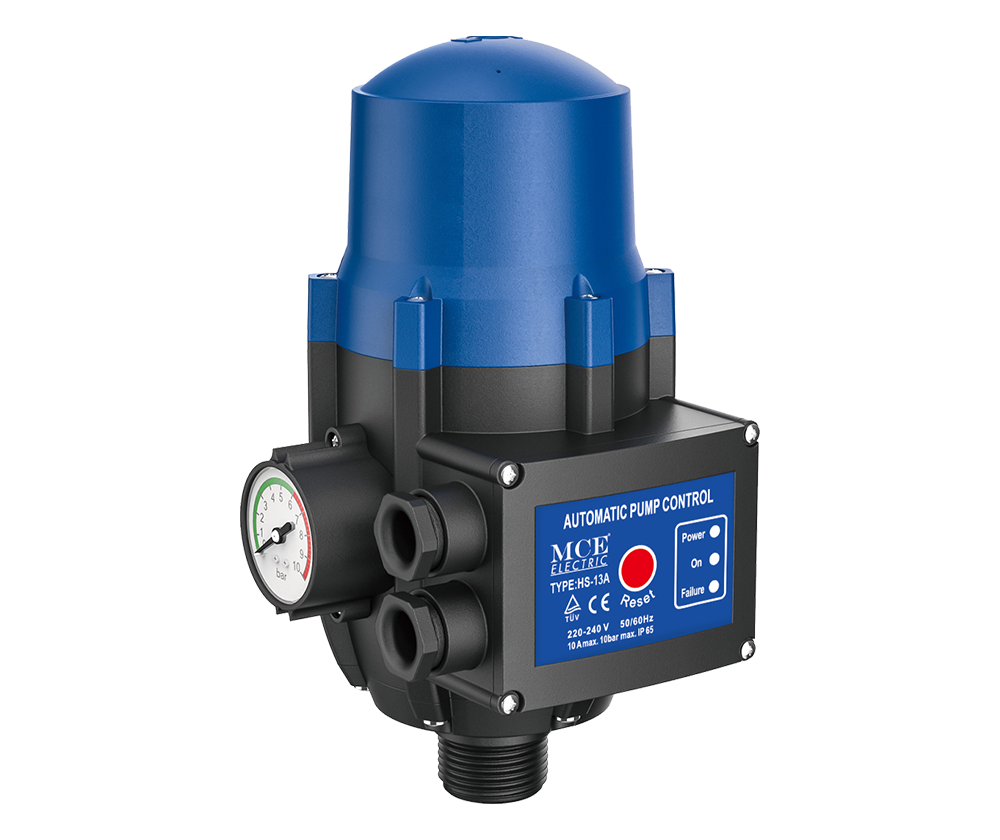

• HS-13A offers an adjustable starting pressure (1.5-3 Bar) for tuning to your system, plus a built-in gauge
• HS-13 adds a pressure gauge to the HS-10's fixed 1.5 Bar setting for at-a-glance system pressure monitoring
• Compact inline fitting, straightforward to retrofit onto an existing pump outlet

Typical Applications

• Automating a manually-switched peripheral or centrifugal pump (e.g. MCE Electric HSm or HCm range)
• Domestic water pressure boosting systems
• Garden irrigation and general water supply automation
• Retrofitting automatic control onto an existing pump installation

Technical Specifications

What's Included

• 1 x Automatic pump control / pressure switch (model per variant selected)

Please note: Pump, plumbing fittings, wiring accessories and electrical protection are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm the connection size (1" or 1"¼ for HS-13A) matches your pump outlet before ordering.
• Confirm your pump's flow and pressure characteristics are compatible with the starting pressure and max working pressure shown above.
• Choose HS-13A if you need to adjust the starting pressure to suit your specific system; choose HS-10 or HS-13 for a fixed 1.5 Bar setting.
• Installation should be carried out by a suitably qualified installer.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? If you are unsure which model is correct for your pump, contact Zisabo with your pump details and required pressure setting, and we will assist where possible.
