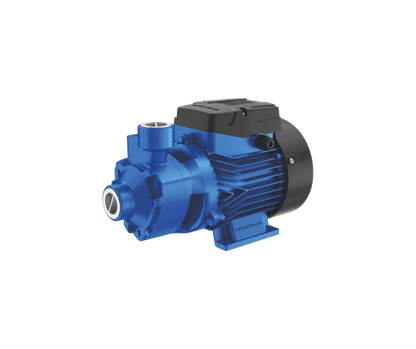

MCE Electric HSm Peripheral Water Pump, 0.37kW & 0.75kW, 220-240V

The MCE Electric HSm range is a single-phase peripheral clean water pump designed for domestic pressure boosting and general water transfer. It suits homeowners, contractors and installers who need a compact, affordable pump for boosting water pressure from a tank or low-pressure supply, in two power sizes to match different flow and pressure needs.

• Application: Suitable for domestic water pressure boosting and clean water transfer
• Key specification: 0.37kW (HSm370) or 0.75kW (HSm750), single-phase 220-240V
• Connection size: 1" inlet / 1" outlet
• Protection rating: IP44
• Liquid type: Clean water only, up to 45°C

Key Features

• Peripheral pump design suited to boosting pressure at relatively low flow rates
• Two power options (0.37kW/0.5HP and 0.75kW/1.0HP) to match different pressure and flow requirements
• IP44 protection rating for standard indoor/sheltered domestic installation
• Single-phase 220-240V motor — no three-phase supply required
• 1" inlet and outlet connections for straightforward plumbing into an existing system

Typical Applications

• Domestic water pressure boosting
• Tank-to-house water transfer
• Garden irrigation water supply
• General clean water transfer in domestic plumbing installations

Technical Specifications

What's Included

• 1 x MCE Electric HSm peripheral pump (model per variant selected)

Please note: Pressure controller, tank, isolators, plumbing fittings and installation accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• This pump must be primed before use.
• Confirm your required flow and pressure against the published performance curve before choosing between HSm370 and HSm750.
• Only suitable for clean water — do not use with abrasive, dirty or chemically aggressive liquids.
• Confirm your supply voltage (220-240V single phase) matches your installation before ordering.
• Installation should be carried out by a suitably qualified installer.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? If you are unsure whether this product is suitable for your system, contact Zisabo with your required flow, pressure and application details, and we will assist where possible.
