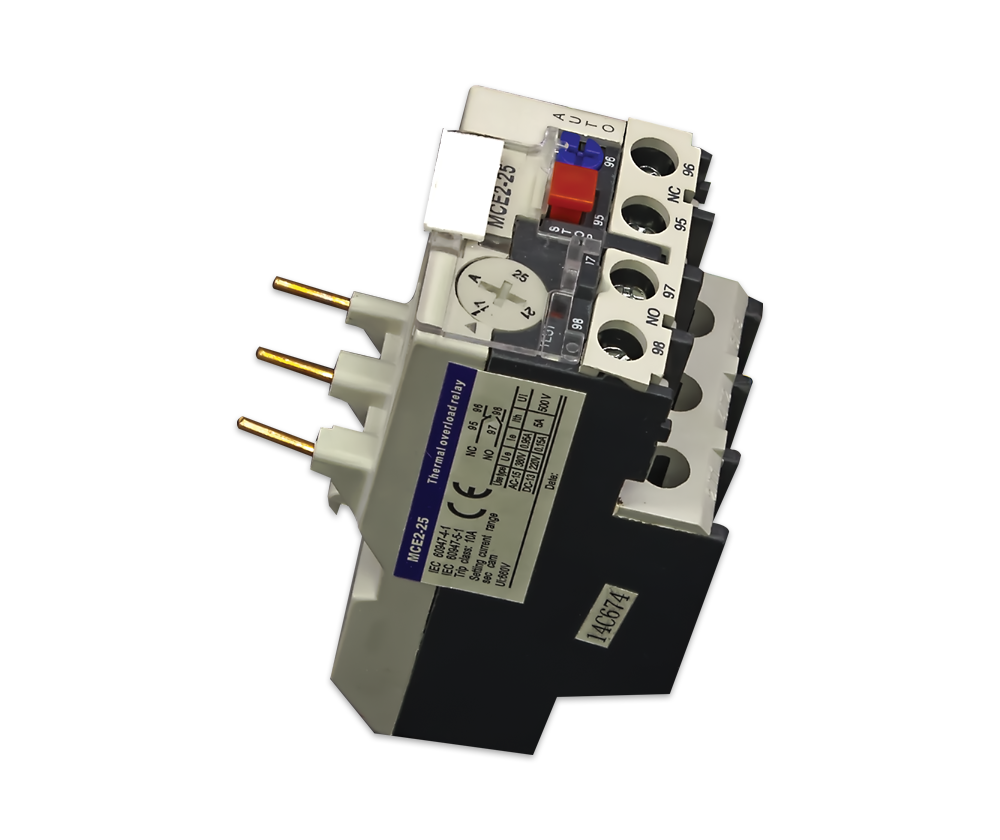

Thermal Overload Relay, Adjustable

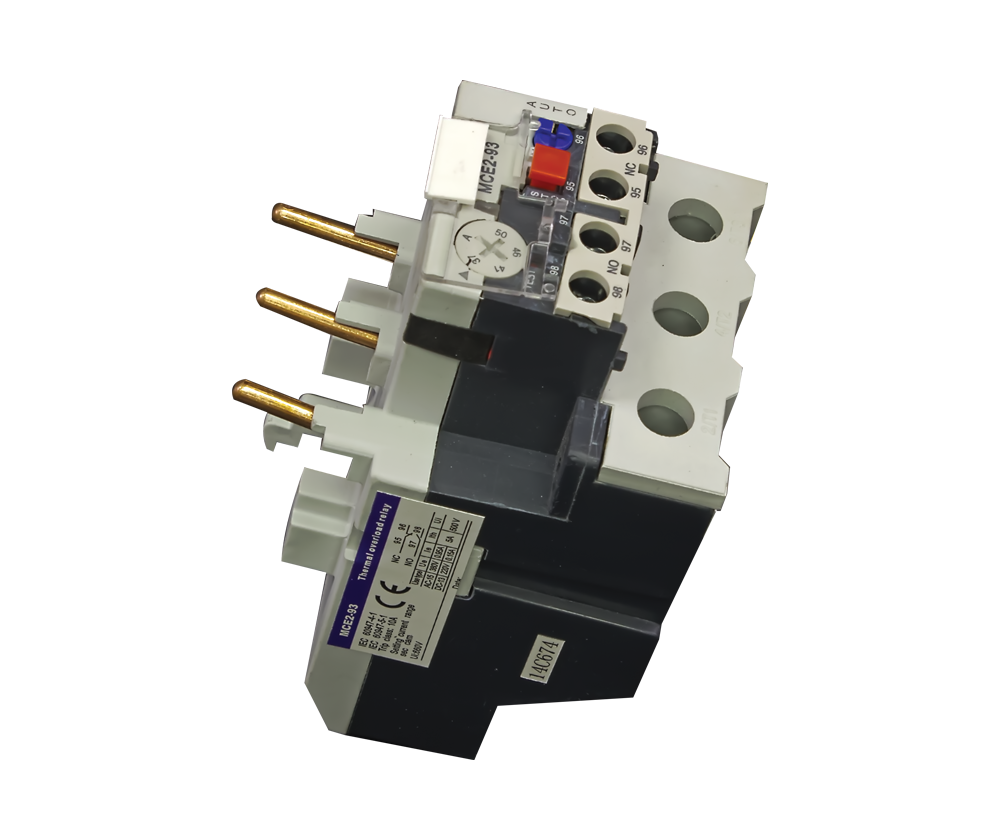

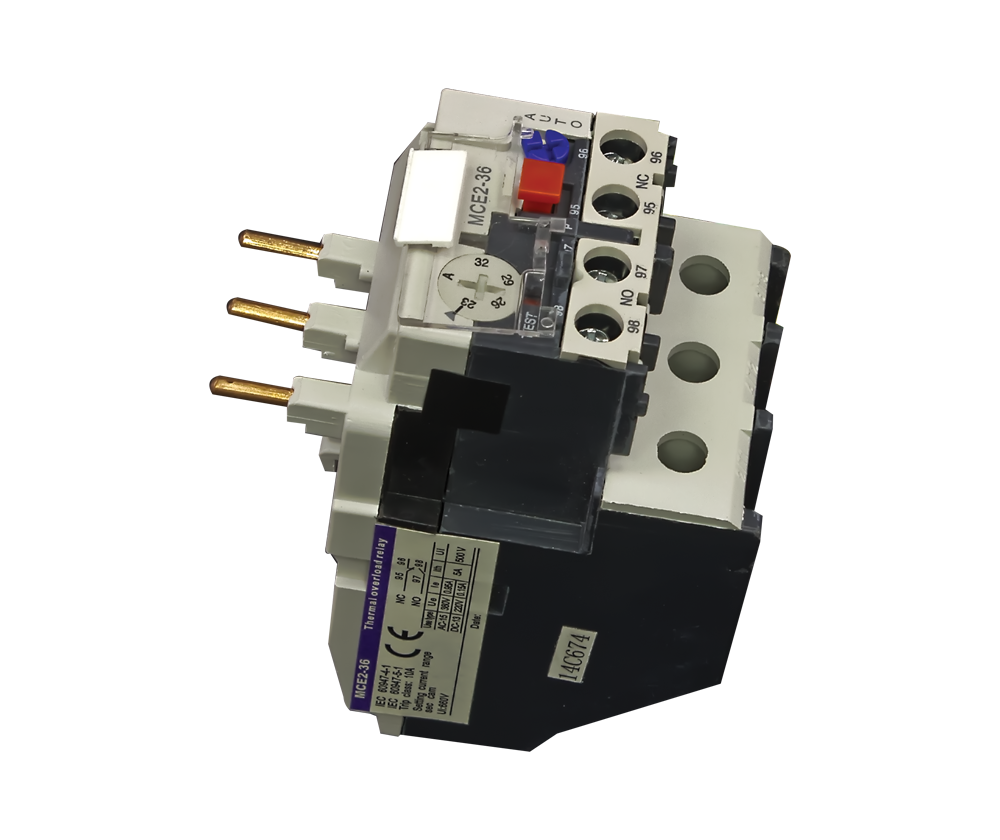

The MCE2 Thermal Overload Relay is a bi-metal overload relay designed to protect three-phase motors from sustained overcurrent. It is suitable for panel builders, electricians and maintenance teams fitting or replacing overload protection on contactor-based starters, and is available in three frame sizes to match a wide range of contactor and current ratings.

• Application: Motor overload protection on contactor starters
• Frame sizes: Small, Medium and Large frame
• Contactor compatibility: Small Frame: MCE-D09 to D32; Medium Frame: MCE-D25 to D38; Large Frame: MCE-D40 to D95
• Adjustment: Adjustable current rating within each frame's range

Key Features

• Bi-metal thermal sensing trips reliably on sustained overload conditions
• Direct mount to matching MCE contactor frame, keeping the starter compact
• Adjustable current dial allows fine-tuning to the actual motor full-load current
• Three frame sizes cover small to large motor starter builds without over-specifying

Typical Applications

• Motor starter overload protection
• Panel building and starter assembly
• Pump and fan motor circuits
• Contractor and maintenance replacement of failed overloads

Technical Specifications

What's Included

• 1 x MCE2 Thermal Overload Relay (frame and current range as selected)

Please note: Matching MCE contactor, wiring and enclosure are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm the frame size (Small/Medium/Large) matches your MCE contactor before ordering.
• Set the adjustable dial to the motor's actual full-load current, not the contactor rating.
• Installation should be carried out by a suitably qualified electrician where required.
