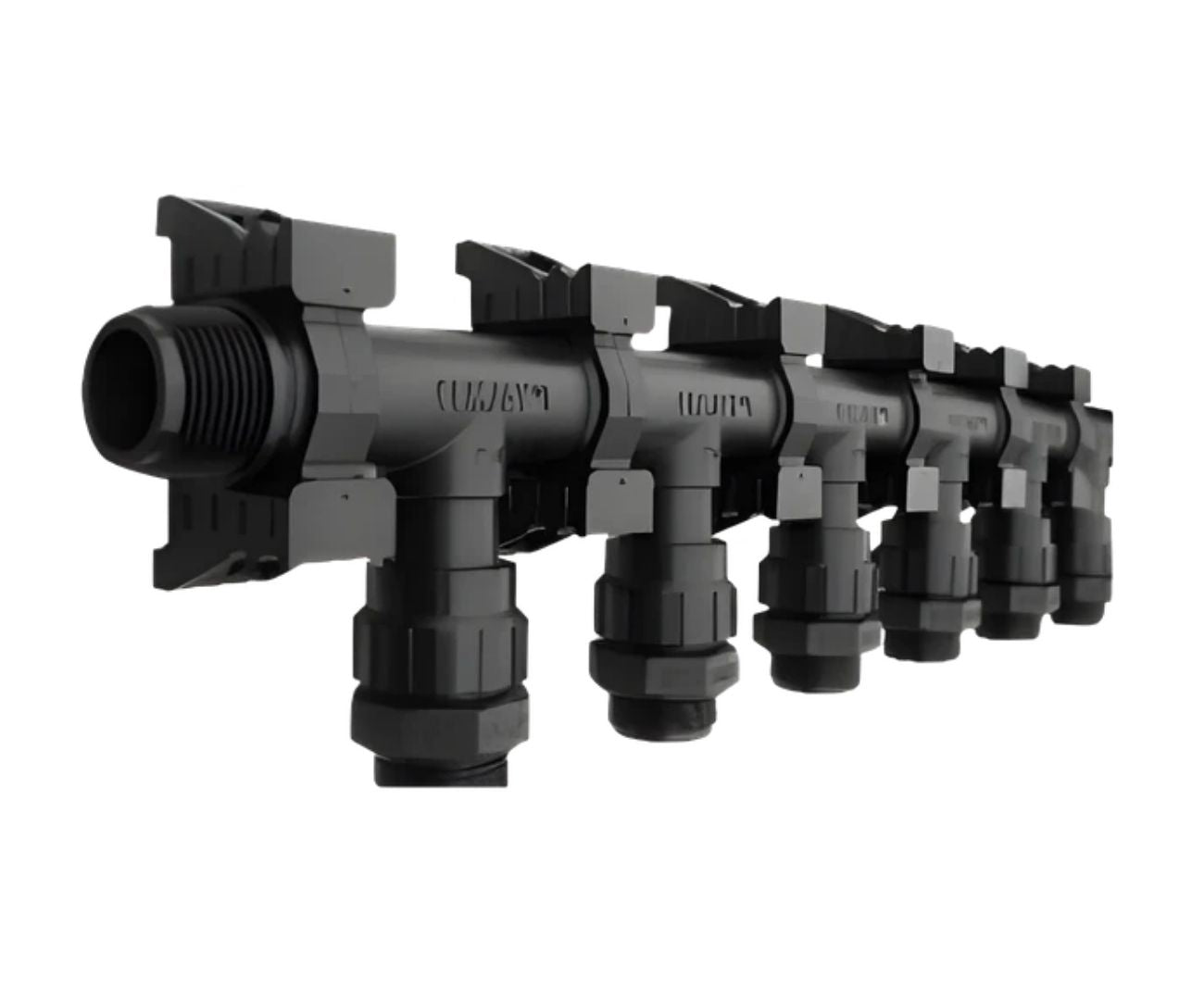

Microjet Assembled Union Manifold – 1\" BSP 1 to 6 Station and Extension Kit (MM250–MM256)

The Microjet Assembled Union Manifold is a pre-built 1" BSP irrigation manifold system used for distributing water to multiple irrigation zones from a single supply line. Available from 1 to 6 stations, each station being a valve/fitting outlet point. The MM250 Extension Kit allows an existing manifold to be extended by one additional station.

• Application: Multi-zone irrigation water distribution from a single supply
• Thread: 1" BSP throughout
• Stations available: Extension Kit, 1, 2, 3, 4, 5, and 6 station
• Made by Microjet Irrigation Systems, South Africa

Key Features

• Pre-assembled — no need to source and build individual manifold components
• 1" BSP union-style connections throughout for easy assembly and removal
• Scalable — start with 1 station and add stations using the Extension Kit (MM250)
• Suitable for connecting to solenoid valves, ball valves, or other 1" BSP fittings at each station
• Extension Kit (MM250) includes: Tee, Coupling, and Clips for adding one station to an existing manifold

Typical Applications

• Residential and commercial irrigation zone distribution
• Header manifold for drip or Microjet irrigation zones
• Valve bank installations for automated irrigation systems

Technical Specifications

What's Included

• Extension Kit (MM250): 1 x Tee, 1 x Coupling, 2 x Clips
• Station manifolds (MM251–MM256): 1 x pre-assembled manifold of selected station count

Please note: Supply pipe fittings, valves, and installation materials are not included. Apply PTFE tape to all BSP thread connections.

Installation & Compatibility Notes

Mount using the wall clips included. Connect your supply pipe to the 1" BSP inlet. Each station outlet accepts a 1" BSP valve or fitting. Use the MM250 Extension Kit to grow the manifold to the required number of stations. For individual manifold components, see the Microjet Manifold Fittings listing (MM101–MM180).

Warranty & Support

Manufactured by Microjet Irrigation Systems, South Africa. Contact Zisabo if you need help sizing your manifold for the number of irrigation zones required.
