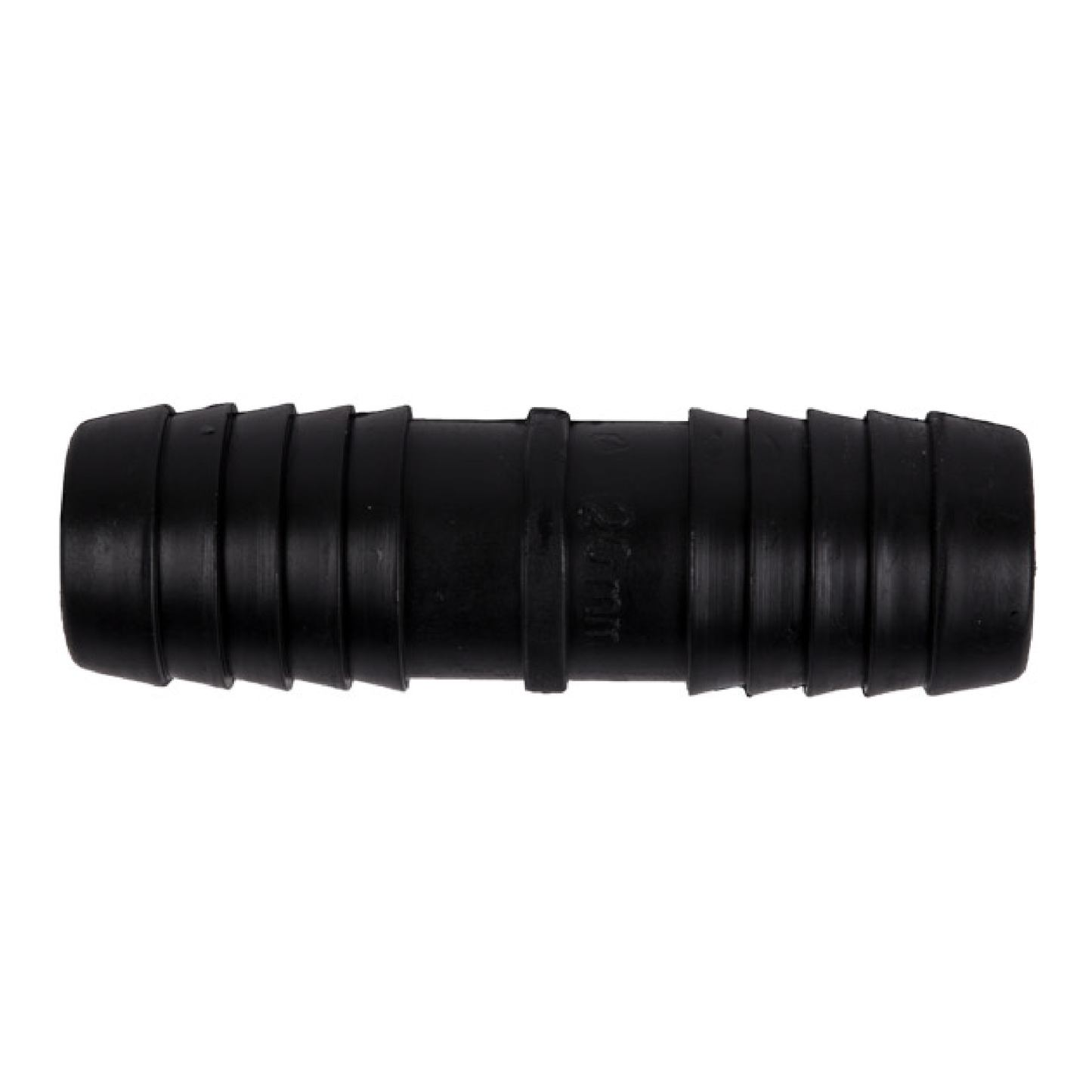

Nylon Insert Coupling – Barbed Poly Pipe Joiner, 12mm to 80mm, Class 3 & 6 LDPE

The Nylon Insert Coupling is a straight barbed joiner for connecting two lengths of Class 3 or Class 6 low-density polyethylene (LDPE) poly pipe. Both ends are barbed and push into the pipe bore – the barbs grip the pipe and create a secure, leak-resistant connection without clamps or solvent. Available from 12mm to 80mm to suit the most common poly pipe sizes used in South African irrigation and water reticulation systems.

• Application: Joining two runs of LDPE poly pipe in-line
• Connection type: Barbed insert – push-fit into poly pipe bore
• Compatible pipe: Class 3 and Class 6 LDPE poly pipe
• Sizes available: 12mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 80mm
• Material: Polypropylene (nylon)

Key Features

• Barbed insert design – no clamps or adhesive needed; barbs lock into the pipe bore and hold securely under pressure
• Suitable for Class 3 and Class 6 LDPE poly pipe – the most widely used poly pipe classes in South African agricultural and domestic irrigation
• Wide size range – from 12mm to 80mm to suit main lines, sub-mains, and lateral runs
• Polypropylene construction – UV-stable, chemically resistant, and suitable for outdoor irrigation use
• Quick installation – push-fit installation with no specialist tools or adhesive required

Typical Applications

• Joining poly pipe runs in agricultural and garden irrigation systems
• Repairing a damaged or cut poly pipe line
• Extending an existing poly pipe run
• Domestic water reticulation and supply lines using LDPE poly pipe
• Farm water supply systems and irrigation mains

Technical Specifications

What's Included

• 1 x Nylon Insert Coupling (selected size)

Please note: Poly pipe and clamps are not included. For reducing joins (two different pipe sizes), see the Nylon Insert Reducing Coupling. For connections to BSP-threaded fittings, see the Nylon Insert Male or Female Adaptor range.

Installation & Compatibility Notes

Select the size that matches your poly pipe internal bore. On larger sizes (40mm and above), heating the pipe end slightly or using a mallet makes insertion easier. Confirm your pipe is Class 3 or Class 6 LDPE before ordering – this fitting is not intended for PVC pressure pipe or HDPE pipe. For irrigation use, a poly pipe clamp over each barbed end is recommended to maintain connection integrity under sustained pressure.

Warranty & Support

Zisabo supplies quality irrigation fittings to farmers, contractors, and installers across South Africa. Contact us if you need help selecting the correct fitting size or type for your system.
