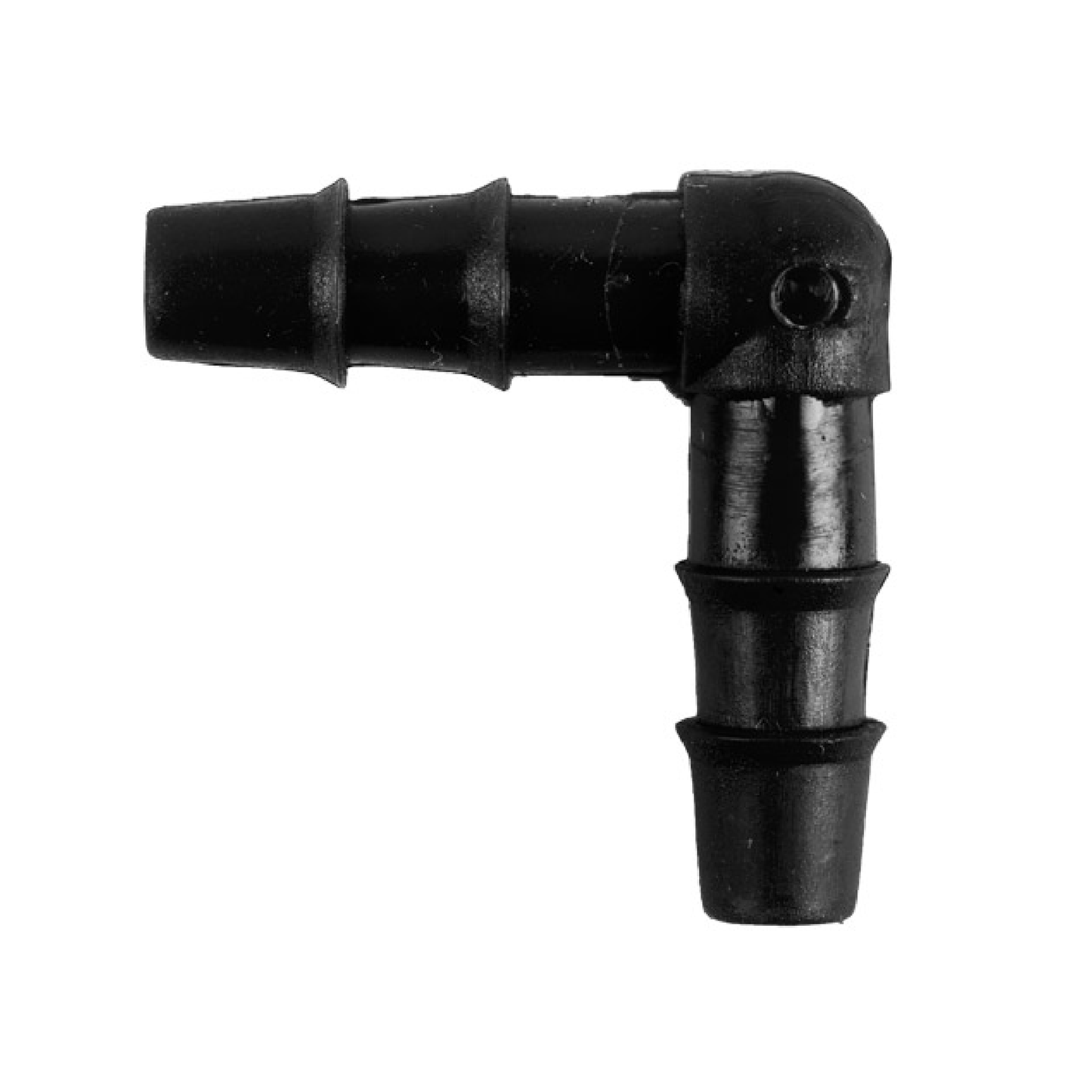

Nylon Insert Elbow – 90° Barbed Poly Pipe Elbow, 12mm to 50mm, Class 3 & 6 LDPE

The Nylon Insert Elbow is a 90° barbed fitting for changing direction in Class 3 or Class 6 LDPE poly pipe systems. Both ends are barbed and push into the pipe bore, creating a secure corner connection without clamps or adhesive. Used wherever a poly pipe run needs to turn 90° – around obstacles, along fence lines, or at the end of a run before a riser or valve.

• Application: 90° directional change in poly pipe runs
• Connection type: Barbed insert – both ends push into poly pipe bore
• Compatible pipe: Class 3 and Class 6 LDPE poly pipe
• Material: Polypropylene (nylon)
• Also available: Nylon Insert Female Elbow (barbed x BSP female) and Male Elbow (barbed x BSP male)

Key Features

• 90° barbed elbow – changes pipe direction cleanly without kinking
• Barbed insert design – no adhesive or clamps needed; barbs grip the pipe bore and hold under pressure
• Suitable for Class 3 and Class 6 LDPE poly pipe
• Polypropylene construction – UV-stable and suitable for buried and surface irrigation
• Quick and easy installation – no specialist tools required

Typical Applications

• Turning a poly pipe run at 90° around obstacles, buildings, or fence posts
• Farm and garden irrigation lateral and main line routing
• Connecting poly pipe to a riser or sprinkler assembly at a right angle
• Domestic water reticulation using LDPE poly pipe

Technical Specifications

What's Included

• 1 x Nylon Insert Elbow – 90° (selected size)

Please note: Poly pipe and clamps are not included. For an elbow with one BSP female thread, see the Nylon Insert Female Elbow. For one BSP male thread, see the Nylon Insert Male Elbow.

Installation & Compatibility Notes

Select the size matching your poly pipe bore. Confirm the pipe is Class 3 or Class 6 LDPE. Push both barbed ends firmly into the pipe until fully seated. For sustained pressure applications, poly pipe clamps over each barbed end are recommended.

Warranty & Support

Zisabo supplies quality irrigation fittings to contractors, farmers, and irrigation installers across South Africa. Contact us if you need help selecting the correct fitting for your application.
