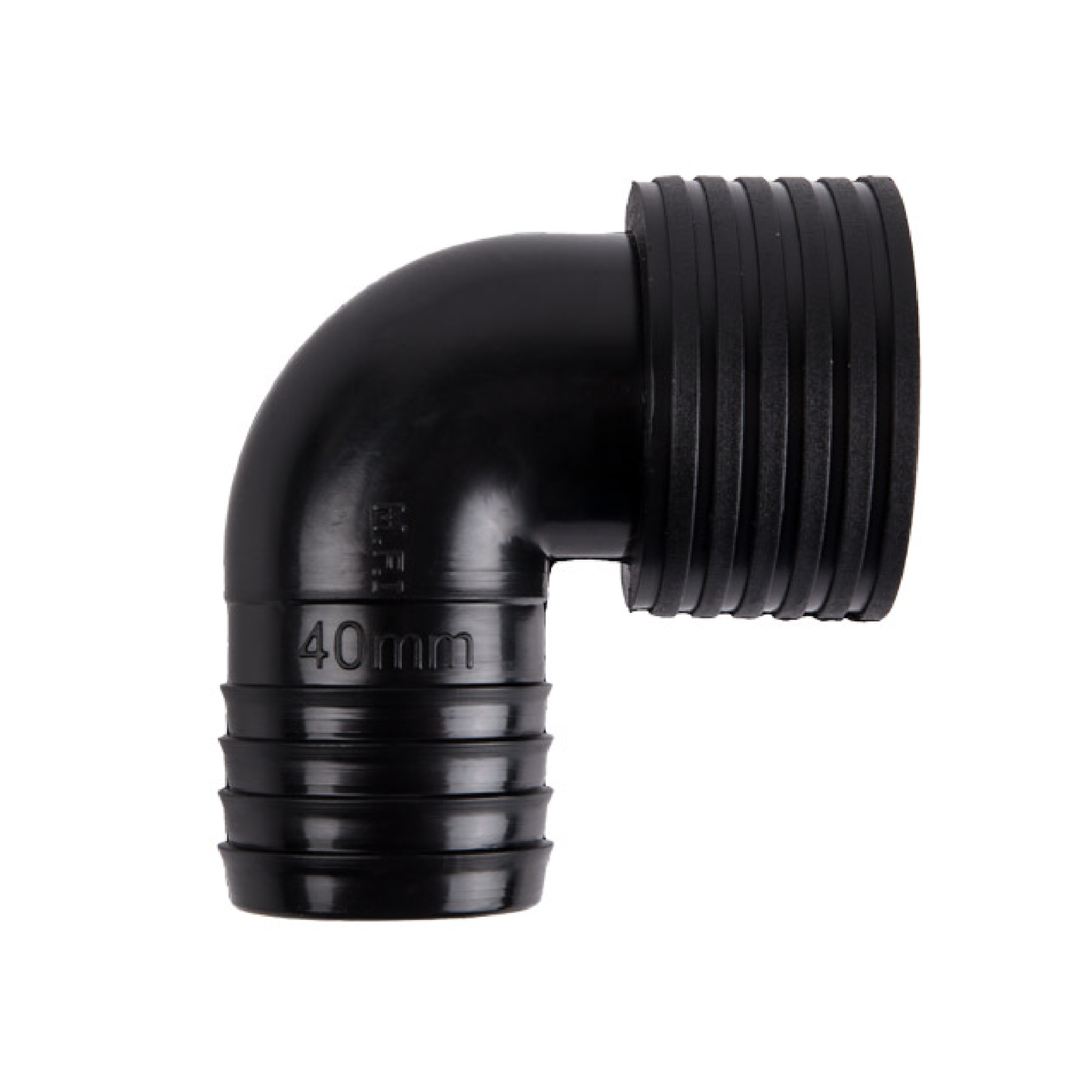

Nylon Insert Female Elbow – Barbed Poly Pipe x BSP Female 90° Elbow, 15mm to 50mm

The Nylon Insert Female Elbow combines a 90° direction change with a BSP female threaded outlet on one end and a barbed insert on the other. Use it where a poly pipe run needs to turn and connect to a BSP male-threaded riser, nipple, sprinkler, or fitting. It eliminates the need for a separate insert elbow and female adaptor – one fitting does the job.

• Application: 90° turn in poly pipe run with a BSP female threaded outlet
• Connection type: Barbed insert x BSP female thread
• Compatible pipe: Class 3 and Class 6 LDPE poly pipe
• Material: Polypropylene (nylon)
• Also available: Insert Elbow (barbed x barbed), Male Elbow (barbed x BSP male)

Key Features

• Combined elbow and female BSP thread in one fitting – reduces the number of fittings needed at a turn point
• Barbed poly pipe end x BSP female thread – connects poly pipe to a BSP male nipple, riser, or threaded fitting at a 90° angle
• Suitable for Class 3 and Class 6 LDPE poly pipe
• Polypropylene construction – UV-stable for outdoor use

Typical Applications

• Connecting a poly pipe lateral to an upright BSP male riser or standpipe at 90°
• Turning a poly pipe run and transitioning to a threaded sprinkler or valve inlet
• Garden and farm irrigation lateral routing

Technical Specifications

What's Included

• 1 x Nylon Insert Female Elbow (selected size)

Please note: Poly pipe, clamps, and male threaded fittings are not included. Apply PTFE tape to the male thread that connects into this fitting before assembly.

Installation & Compatibility Notes

Match the barbed end size to your poly pipe bore and confirm the BSP female thread size matches your riser or male threaded fitting. Apply PTFE tape to the male thread before screwing in. For sustained pressure applications, clamp the barbed poly pipe end.

Warranty & Support

Contact Zisabo if you need help selecting the correct fitting configuration for your layout.
