CEE Industrial Coupler 16A-125A | IP44 & IP67 | 3P, 4P, 5P & 7P | Onesto Onyx Range

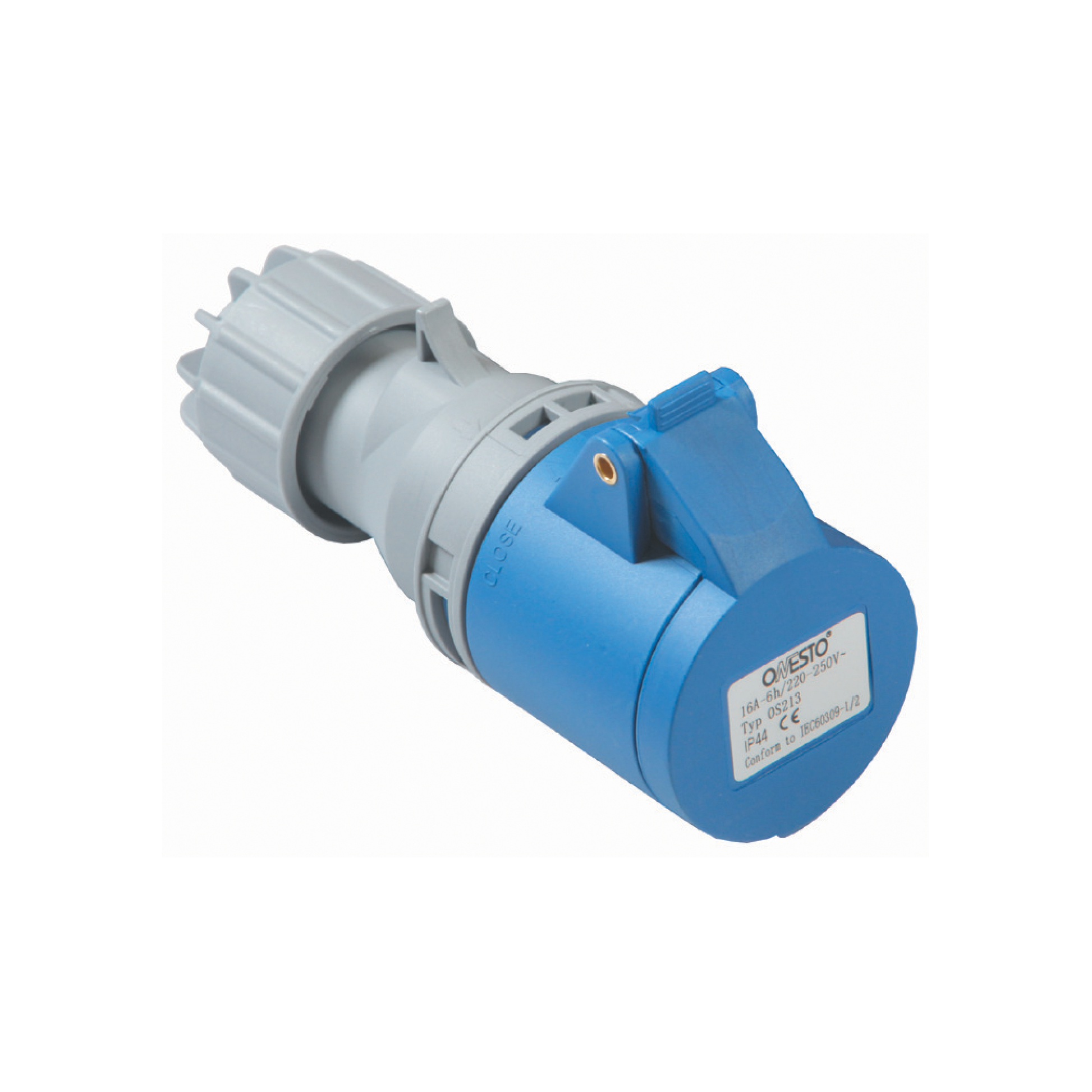

The Onesto Onyx CEE Industrial Coupler is the female in-line connector used to extend or join industrial supply cables fitted with IEC 60309 / CEE plugs. It is available from 16A to 125A, in IP44 and IP67, with 3-pin (230V), 4-pin and 5-pin (three-phase) configurations plus a 16A 7-pin version. It suits electricians, contractors, event and site power teams and maintenance crews.

• Application: In-line cable coupler for CEE plugs and extension leads
• Current ratings: 16A, 32A, 63A and 125A
• Configurations: 3-pin 230V, 4-pin and 5-pin three-phase, 16A 7-pin
• Protection: IP44 or IP67 depending on variant
• Colour coding: Blue & Grey for 230V, Red & Grey for three-phase and 7-pin versions

Key Features

• Standard IEC 60309 / CEE format for compatibility with matching Onyx and other CEE plugs
• IP67 versions for exposed outdoor and wet environments, IP44 for covered and splash-prone areas
• A 32A 4-pin 3-hour (3HR) IP67 container coupler version is available (OS2241-3)
• Voltage-coded colours help identify the correct supply

Typical Applications

• Extension leads and portable power cables
• Construction sites and temporary power
• Events, stage and marine power
• Workshops, plant rooms and agricultural installations

Technical Specifications

What's Included

• 1 x CEE Industrial Coupler in the selected specification

Please note: Plugs, cables and glands are not included. Actual product image may vary based on product size.

Installation & Compatibility Notes

• Match the coupler current rating, pin count and voltage to the plug it will connect to.
• Choose IP67 for exposed outdoor or wet use and fit suitable glands to keep the IP rating.
• Installation must be carried out by a suitably qualified electrician in accordance with SANS 10142.
