Onesto Onyx IP44 & IP67 Industrial CEE Male Plug Top – 16A to 125A | 3P, 4P, 5P & 7P

R 93.10

Sale Sold out

Taxes included. Shipping calculated at checkout.

The Onesto Onyx range of industrial CEE male plug tops are built to IEC 60309 standard and cover IP44 and IP67 protection ratings across 16A, 32A, 63A, and 125A current ratings. Available in 3-pin (2P+E / 230V), 4-pin (3P+E / 380V), 5-pin (3P+N+E / 380V), and 7-pin configurations. Cable entry is screw-type and hand-tightenable for quick site installation without additional tools. Engineering plastic construction provides a robust and lightweight plug top suitable for a wide range of industrial, commercial, and site power applications. IP44 variants are suitable for splash-protected indoor and semi-outdoor use; IP67 variants provide full dust-tight and temporary immersion protection for demanding outdoor and industrial environments.

Application: Industrial power distribution, site power, generator connections, motor feeds, and panel distribution
Current ratings: 16A, 32A, 63A, and 125A
Configurations: 3 Pin (2P+E / 230V), 4 Pin (3P+E / 380V), 5 Pin (3P+N+E / 380V), 7 Pin
Protection: IP44 (splash-proof) and IP67 (dust-tight, temporary immersion)
Standard: IEC 60309-1 & IEC 60309-2 (2012)
Cable entry: Screw type, hand-tightenable
Material: Engineering plastic

Key Features

Full IP44 and IP67 range in a single product family for both splash-protected and full outdoor environments
Screw-type cable entry tightenable by hand – no tools required for cable clamping
Engineering plastic construction – robust, lightweight, and resistant to industrial environments
IEC 60309 standard – compatible with matching Onesto and other branded CEE sockets and appliance inlets
Colour-coded per IEC standard: blue for 230V single-phase, red for 380V three-phase
Wide current range from 16A to 125A covering light, medium, and heavy industrial loads

Typical Applications

Site power and temporary power connections on construction sites
Generator and distribution board power feeds
Industrial panel and motor control centre (MCC) connections
Motor, pump, and compressor power supply
Commercial and factory power distribution
Outdoor and all-weather power installations (IP67 variants)
Agricultural and farm power connections

Technical Specifications

Brand	Onesto
Range	Onyx Industrial Plugs & Sockets
Product Type	Industrial CEE Male Plug Top
IP Ratings	IP44 and IP67
Standard	IEC 60309-1: 1999 + A1:2005 + A2:2012; IEC 60309-2: 1999 + A1:2005 + A2:2012
Available Current Ratings	16A, 32A, 63A, 125A
Available Voltages	230V (3-pin), 380V (4-pin & 5-pin)
Available Pin Configurations	3 Pin (2P+E), 4 Pin (3P+E), 5 Pin (3P+N+E), 7 Pin
Cable Entry	Screw type, hand-tightenable
Material	Engineering plastic
Type	Male (Plug Top)

Variant Reference

Specification	SKU	Amps	Pins	Configuration	Voltage	IP Rating

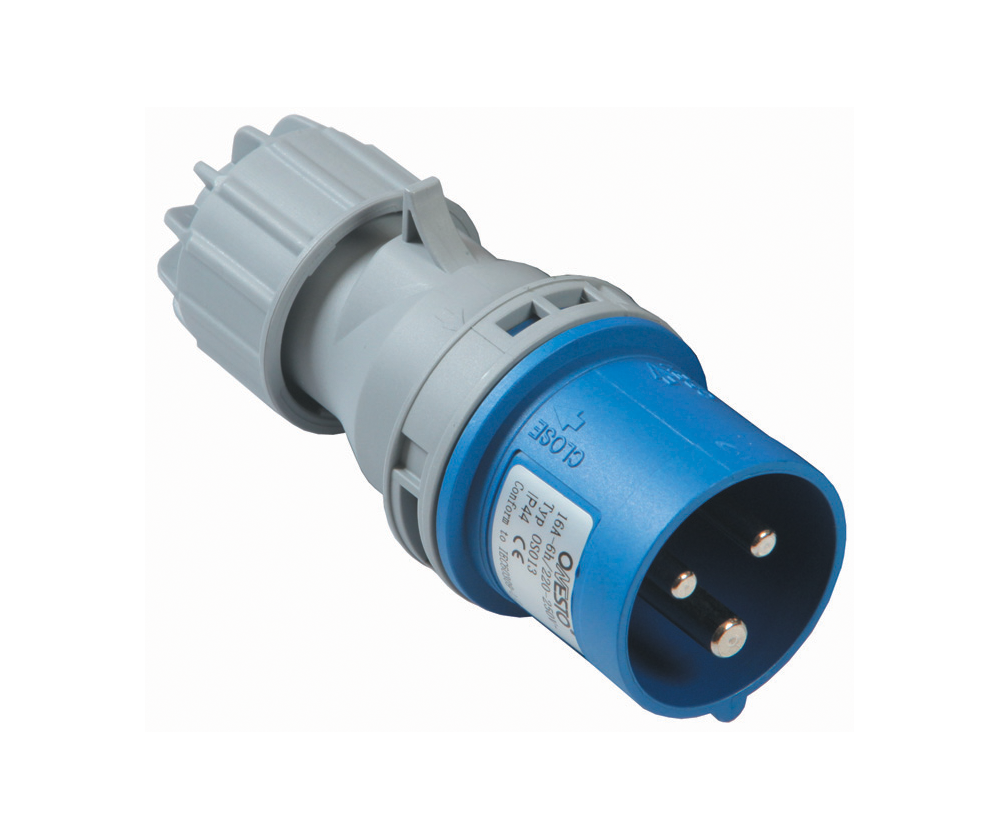

16A – 3P 230V IP44	OS013	16A	3 Pin	2P+E	230V	IP44
16A – 3P 230V IP67	OS0131	16A	3 Pin	2P+E	230V	IP67

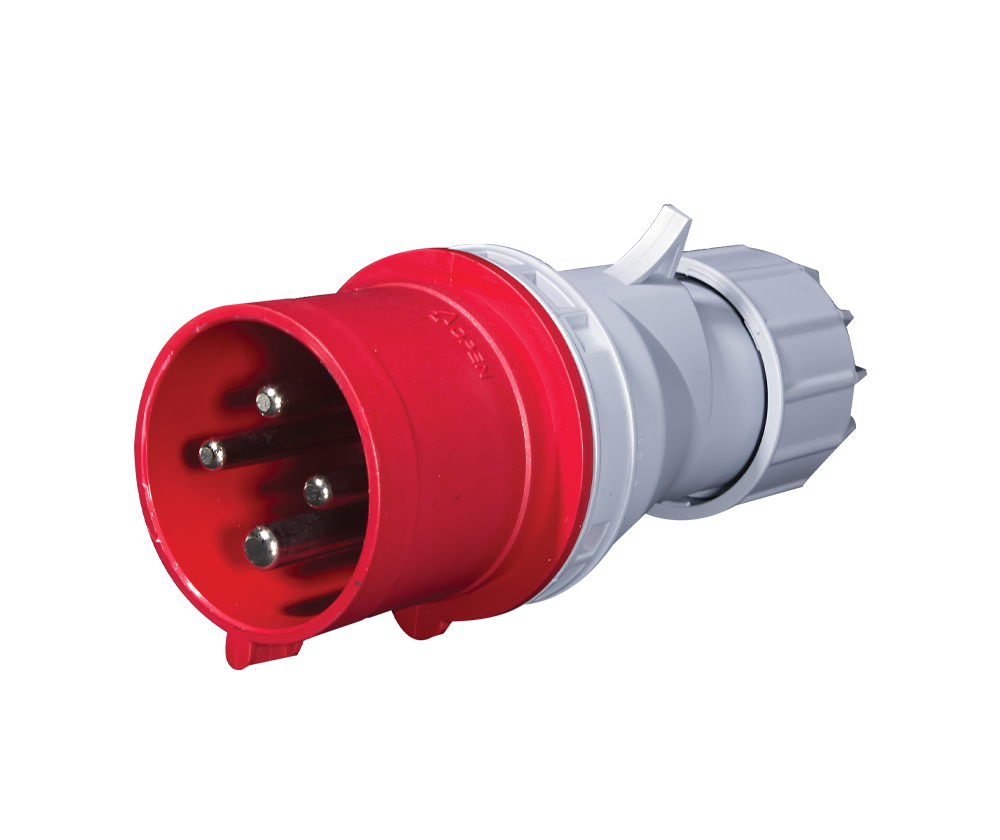

16A – 4P 380V IP44	OS014	16A	4 Pin	3P+E	380V	IP44
16A – 4P 380V IP67	OS0141	16A	4 Pin	3P+E	380V	IP67
16A – 5P 380V IP44	OS015	16A	5 Pin	3P+N+E	380V	IP44
16A – 5P 380V IP67	OS0151	16A	5 Pin	3P+N+E	380V	IP67

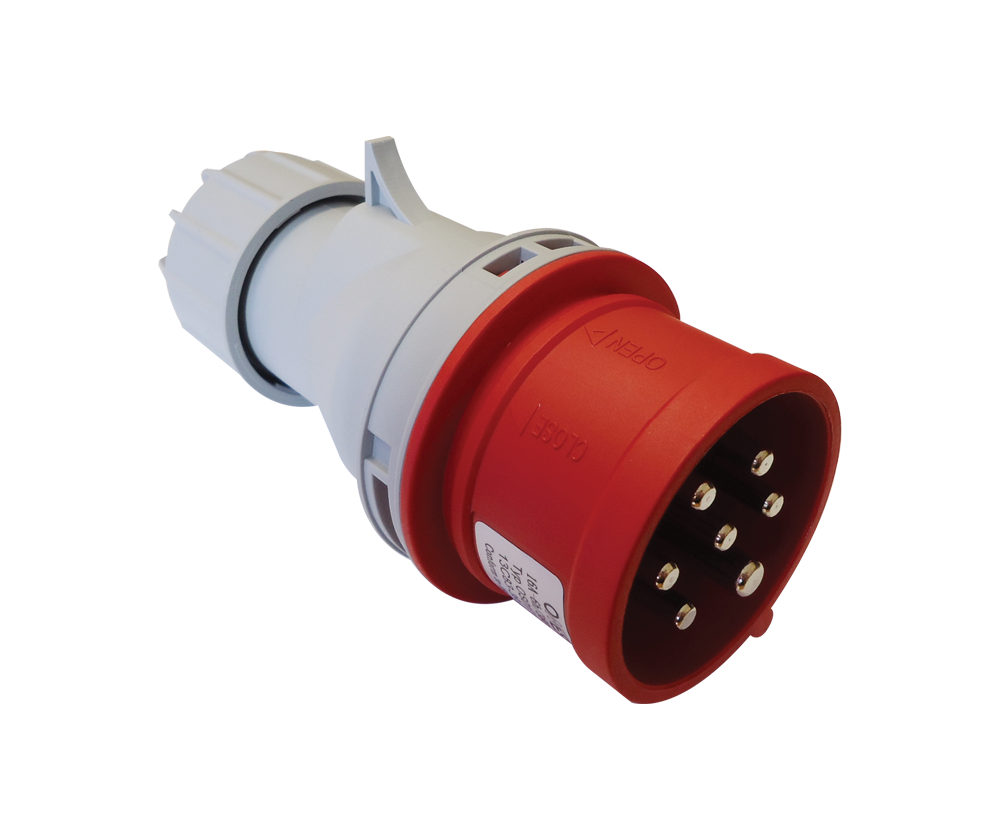

16A – 7P IP44	OS017	16A	7 Pin	7P	–	IP44
32A – 3P 230V IP44	OS023	32A	3 Pin	2P+E	230V	IP44

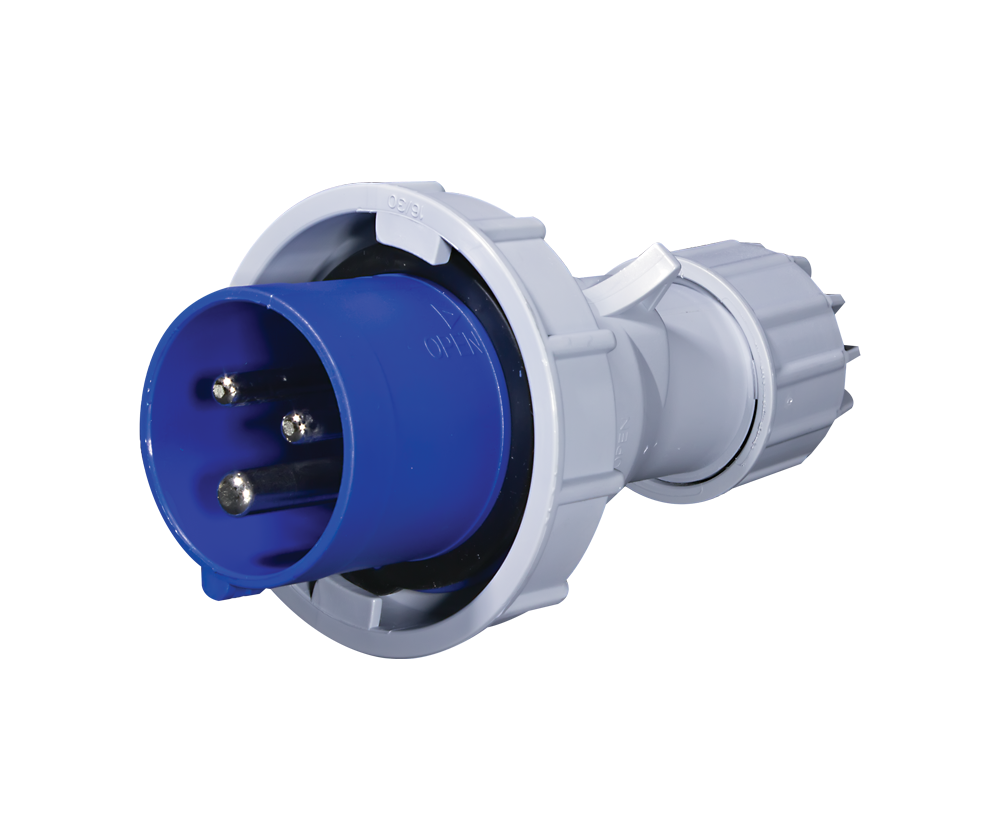

32A – 3P 230V IP67	OS0231	32A	3 Pin	2P+E	230V	IP67

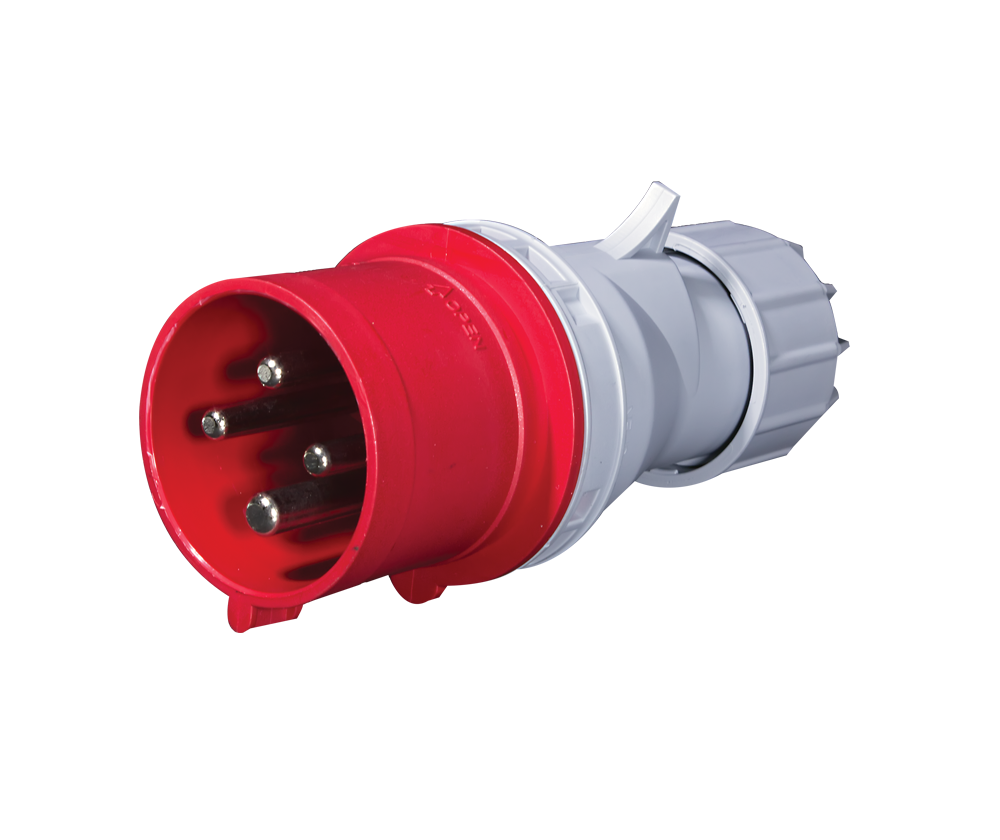

32A – 4P 380V IP44	OS024	32A	4 Pin	3P+E	380V	IP44
32A – 4P 380V IP67	OS0241	32A	4 Pin	3P+E	380V	IP67
32A – 4P 380V IP67 3HR	OS0241-3	32A	4 Pin	3P+E (3HR)	380V	IP67
32A – 5P 380V IP44	OS025	32A	5 Pin	3P+N+E	380V	IP44
32A – 5P 380V IP67	OS0251	32A	5 Pin	3P+N+E	380V	IP67
63A – 3P 230V IP67	OS0331	63A	3 Pin	2P+E	230V	IP67

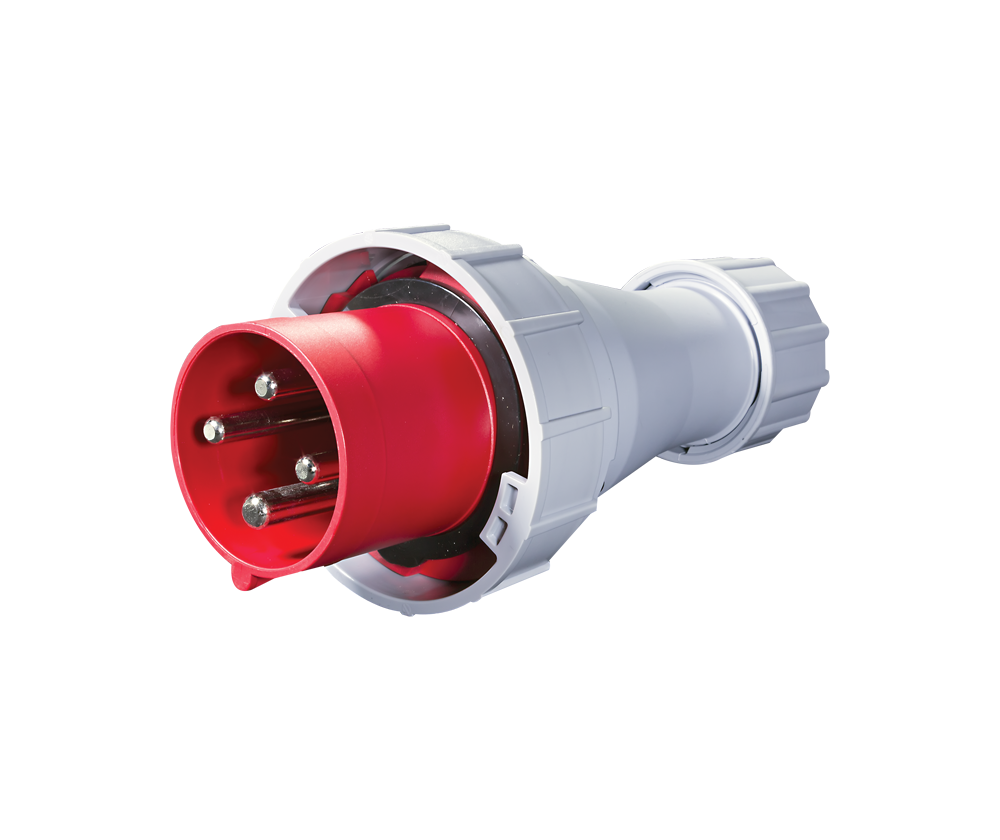

63A – 4P 380V IP67	OS0341	63A	4 Pin	3P+E	380V	IP67
63A – 5P 380V IP67	OS0351	63A	5 Pin	3P+N+E	380V	IP67

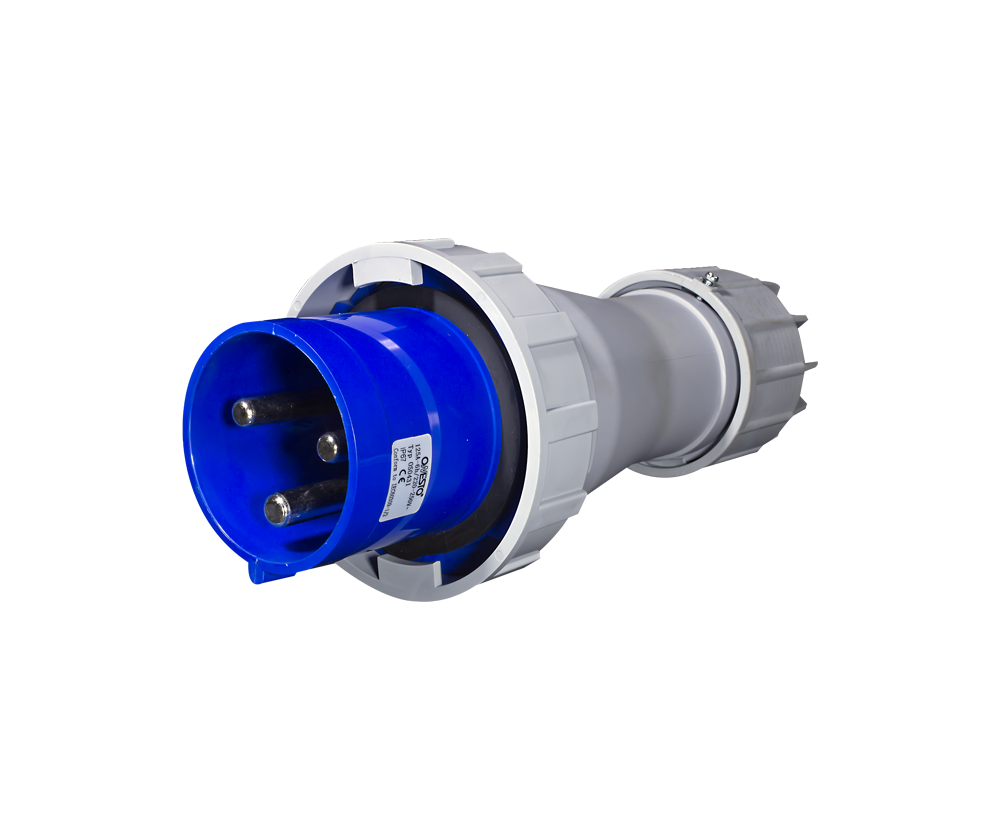

125A – 3P 230V IP67	OS0431	125A	3 Pin	2P+E	230V	IP67
125A – 4P 380V IP67	OS0441	125A	4 Pin	3P+E	380V	IP67
125A – 5P 380V IP67	OS0451	125A	5 Pin	3P+N+E	380V	IP67

What's Included

1 x Onesto Onyx Industrial CEE Male Plug Top (as per selected specification)

Please note: Cable, socket outlets, appliance inlets, and installation accessories are not included. Matching Onesto Onyx CEE socket outlets and panel mount appliance inlets are available separately from Zisabo.

Installation & Compatibility Notes

Select the correct current rating (16A, 32A, 63A, or 125A) for your load and circuit protection
Select the correct pin configuration: 3P (230V single phase), 4P (380V 3-phase), 5P (380V 3-phase + neutral), or 7P for specialist applications
Select the correct IP rating: IP44 for splash-protected indoor/semi-outdoor use; IP67 for full outdoor and harsh industrial environments
Ensure your matching socket outlet or appliance inlet is the same current rating and pin configuration
The OS0241-3 is a 3-hour position (3HR) keyed plug – confirm your socket outlet is also keyed for 3HR before ordering
Cable entry is screw-type and hand-tightenable – confirm the correct cable entry diameter for your cable
IEC 60309 standard – compatible with matching IEC 60309 CEE socket outlets and inlets from Onesto and other compliant brands
Installation should be carried out by a suitably qualified electrician in accordance with applicable standards

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms. Zisabo supplies quality electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need help choosing? Contact Zisabo with your supply voltage, current rating, pin configuration, and IP rating requirements and we will assist where possible.
