Base Mount Isolator With Shaft & Lockable Handle 16A-100A, 3-4 Pole | MCE C-B

Base Mount Isolator With Shaft & Lockable Handle 16A-100A, 3-4 Pole | MCE C-B

Regular price R 317.40
Regular price Sale price R 317.40
Taxes included. Shipping calculated at checkout.
Current Rating
Poles
Quantity

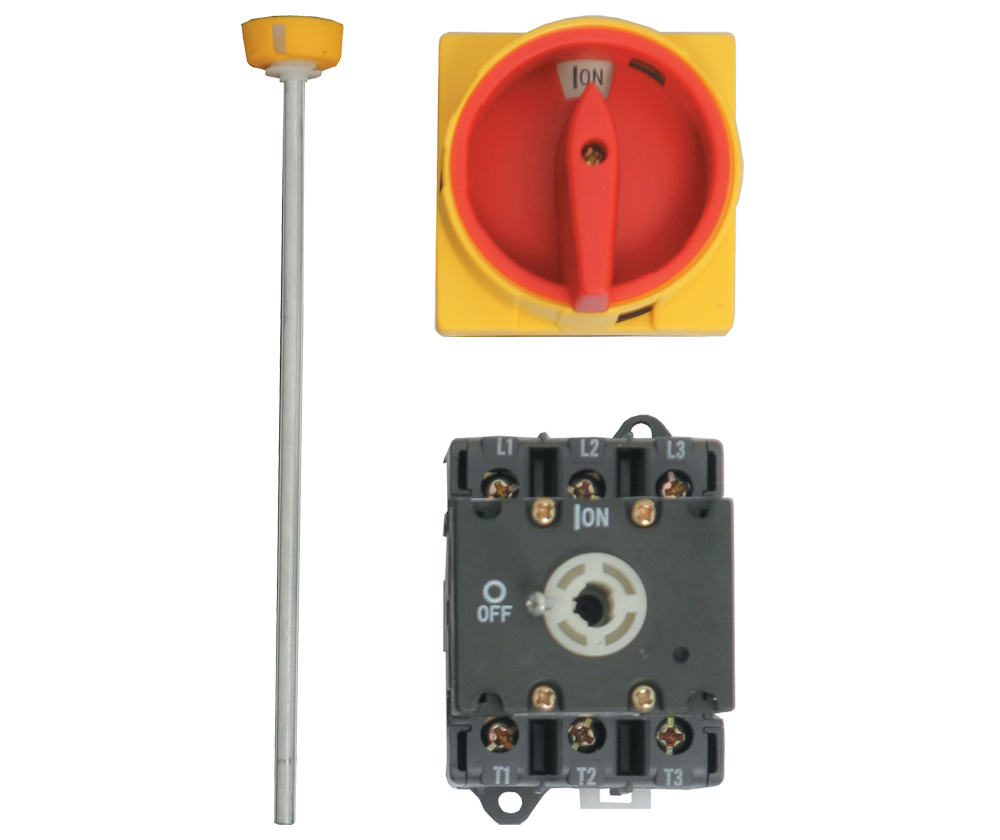

The MCE C-B series is a base mount isolator supplied with an extension shaft and lockable red and yellow handle, used for secure external operation of an isolator mounted inside a panel. It suits panel builders, electricians and maintenance teams, and is available from 16A to 100A in 3 and 4 pole versions.

  • Application: Lockable isolation in switchboards, panels and control enclosures
  • Current range: 16A to 100A
  • Poles: 3 pole and 4 pole
  • Operation: Extension shaft with lockable red/yellow handle
  • Motor rating: 5.5kW at 16A up to 45kW at 100A (per MCE)

Key Features

  • Lockable handle allows the isolator to be locked off during maintenance
  • Extension shaft lets the isolator sit inside the panel and be operated from the front
  • Red and yellow handle clearly marks an emergency or isolation point
  • Aluminium shaft supplied with the handle

Typical Applications

  • Door-mounted isolator handles on control panels
  • Machine and plant isolation
  • Motor control centre and switchboard isolation
  • Commercial and light industrial use

Technical Specifications

Brand MCE Electric
Series C-B series (e.g. C16B-3P, C100B-4P)
Product type Base mount isolator with extension shaft and lockable handle
Rated current 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A
Poles 3 pole and 4 pole
Motor rating (AC) 16A 5.5kW, 20A 7.5kW, 25A 11kW, 32A 15kW, 40A 18.5kW, 63A 30kW, 80A 37kW, 100A 45kW (per MCE)
Handle Red/yellow lockable handle (per MCE)
Shaft Aluminium extension shaft (per MCE)
Rated voltage Not specified by supplier

What’s Included

  • 1 x base mount isolator with extension shaft and lockable handle, in the current rating and pole configuration selected

Please note: Installation fittings, electrical protection, cartridges, control boxes, cables, unions, brackets, or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

  • An isolator is a switch only. It does not protect against overload or short circuit, so fit a suitably rated breaker or fuse in the circuit.
  • Select a rating at or above the full-load current of the equipment being isolated.
  • Check the pole count against your supply and whether the neutral must also be isolated.
  • Confirm the shaft length suits the depth of your enclosure before ordering.
  • Installation should be carried out by a suitably qualified person, with a Certificate of Compliance issued where required.

Warranty & Support

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Need help choosing? If you are unsure whether this product is suitable for your system, contact Zisabo with your supply type, load current, number of poles and enclosure depth, and we will assist where possible.
