Pascali 4" Submersible Borehole Pump Combo Kit | 0.37kW – 0.75kW | Complete Installation Set
Pascali 4" Submersible Borehole Pump Combo Kit | 0.37kW – 0.75kW | Complete Installation Set
Couldn't load pickup availability
Complete 4" Borehole Pump Combo Kit for Reliable Water Supply
The Pascali 4" Submersible Borehole Pump Combo Kit is a complete installation-ready set designed for reliable water supply from boreholes, wells, and reservoirs. It is well suited to domestic household use, garden irrigation, smallholdings, and light agricultural applications where a practical matched pump package is required.
This combo brings together the pump, motor, control box, cable, and key installation accessories in one convenient package to simplify selection and make installation easier.
Quick Decision Guide
| Best for: | Homes, gardens, smallholdings, tank filling, and light agricultural water supply |
| Includes: | Pump, motor, control box, cable, rope, base plate, compression adaptors, and plug top |
| Voltage: | Single Phase 230V |
| Power range: | 0.37kW to 0.75kW |
| Max head range: | 64m to 106m depending on model selected |
| Pump type: | 4" multi-impeller submersible borehole pump |
| Need help choosing? | Send us your borehole depth and intended use before ordering. |
Why Buy from Zisabo
- Complete combo set for easier buying and installation
- Suitable for domestic and irrigation applications
- Need help sizing? WhatsApp us before ordering

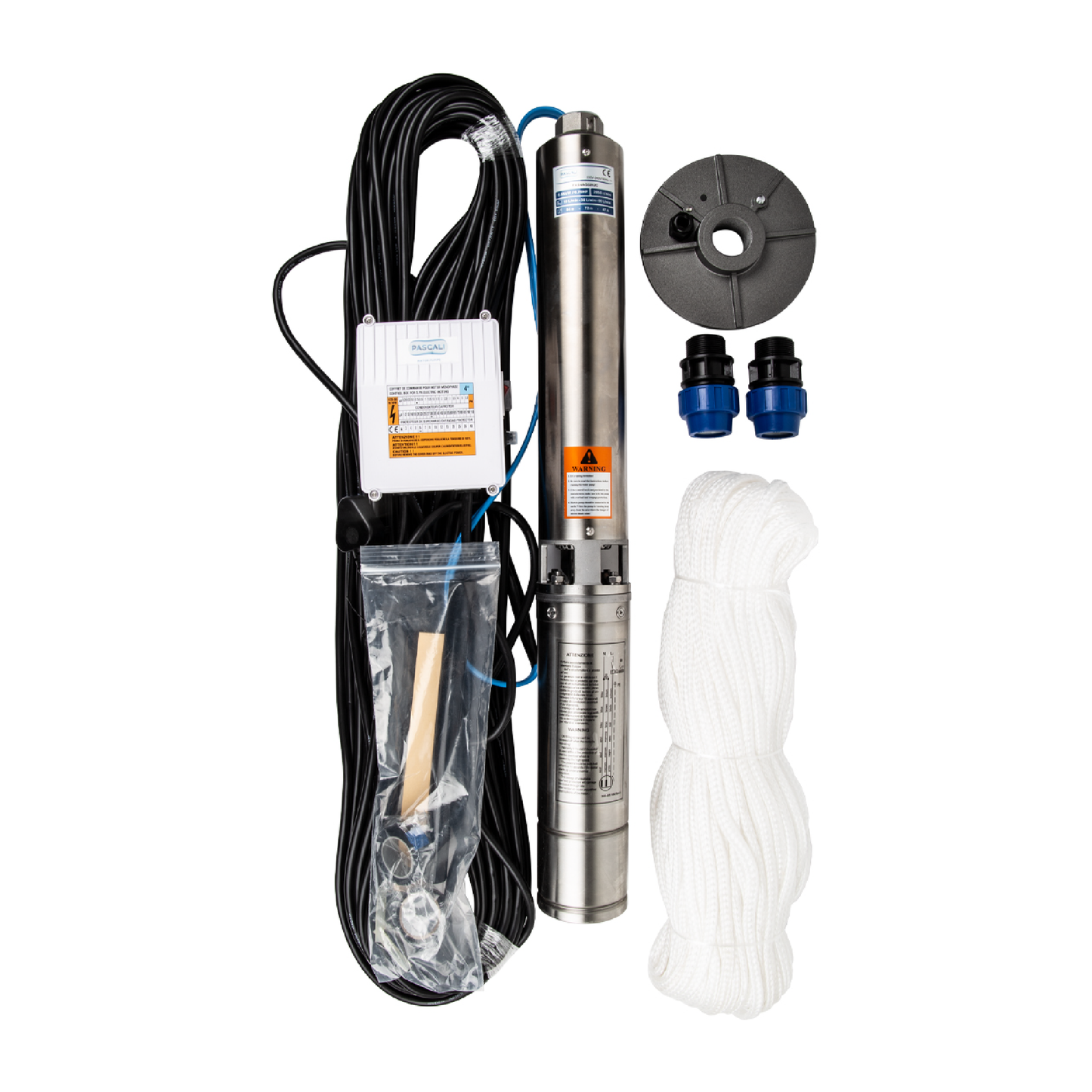

What’s Included in the Combo
- 100mm submersible borehole pump
- Submersible motor (230V)
- Control box
- Aluminium base plate
- 2 x compression adaptors
- Ski rope
- Submersible cable
- Electrical cable
- 3-point South African plug top
Not included
- Delivery pipe
- Professional installation
- Any additional site-specific fittings required beyond the supplied combo contents
Key Features
- 4" multi-impeller borehole pump
- Floating impeller design for reduced starting torque
- Reliable operation where minor sand content may be present
- Rewindable motor with 100% copper winding
- POM impeller construction
- Ceramic graphite mechanical seal
- Stainless steel outlet
- NEMA compliant motor design
- Plug top included for easier connection
Applications
- Water supply from wells and reservoirs
- Domestic household water systems
- Garden irrigation
- Small agricultural installations
- Civil and light-duty water transfer applications
Operating Conditions
- Maximum fluid temperature: +35°C
- Maximum sand content: 0.25%
- Minimum well diameter: 4"
- Single-phase: 220–240V / 50Hz
Available Combo Sizes
| Model | Power | Max Head | Flow |
|---|---|---|---|
| PAS4AG0209C | 0.37kW | 64m | Up to 55 L/min |
| PAS4AG0212C | 0.55kW | 85m | Up to 55 L/min |
| PAS4AG0215C | 0.75kW | 106m | Up to 55 L/min |
How to Choose the Right Borehole Combo
The right pump size depends on your borehole depth, the pressure you need at the house or irrigation point, and how much water you need to deliver.
Choose based on:
- Borehole depth
- Required pressure at the point of use
- Water demand or flow requirement
- Pipe run and elevation
- Available power supply
Before ordering, send us:
- Your borehole depth
- Your intended use
- Your required water demand
- Your available power supply
Guarantees
Guarantees
12 months manufacturer warranty
Materials
Materials
Shipping
Shipping
2 - 5 Business Days
Additional Information
Additional Information
0.37kW Combo: Is Able To Deliver Up To 3 300L/Hour And Is Able To Pump Head Heights Of Up To 63M. The 4Ag2/09 Combo Includes The Pump; Motor (0.37Kw); Control Box; As Well As An Aluminium Base Plate; 2 X Male Adaptors; 50M Ski Rope And 50M Submersible Cable.
0.55kW Combo: Is Able To Deliver Up To 3 300L/Hour And Is Able To Pump Head Heights Of Up To 84M. The 4Ag2/12 Combo Includes The Pump; Motor (0.55Kw); Control Box; As Well As An Aluminium Base Plate; 2 X Male Adaptors; 50M Ski Rope And 50M Submersible Cable.
0.75kW Combo: Is Able To Deliver Up To 3 300L/Hour And Is Able To Pump Head Heights Of Up To 105M. The 4Ag2/15 Combo Includes The Pump; Motor (0.75Kw); Control Box; As Well As An Aluminium Base Plate; 2 X Male Adaptors; 80M Ski Rope And 80M Submersible Cable.
