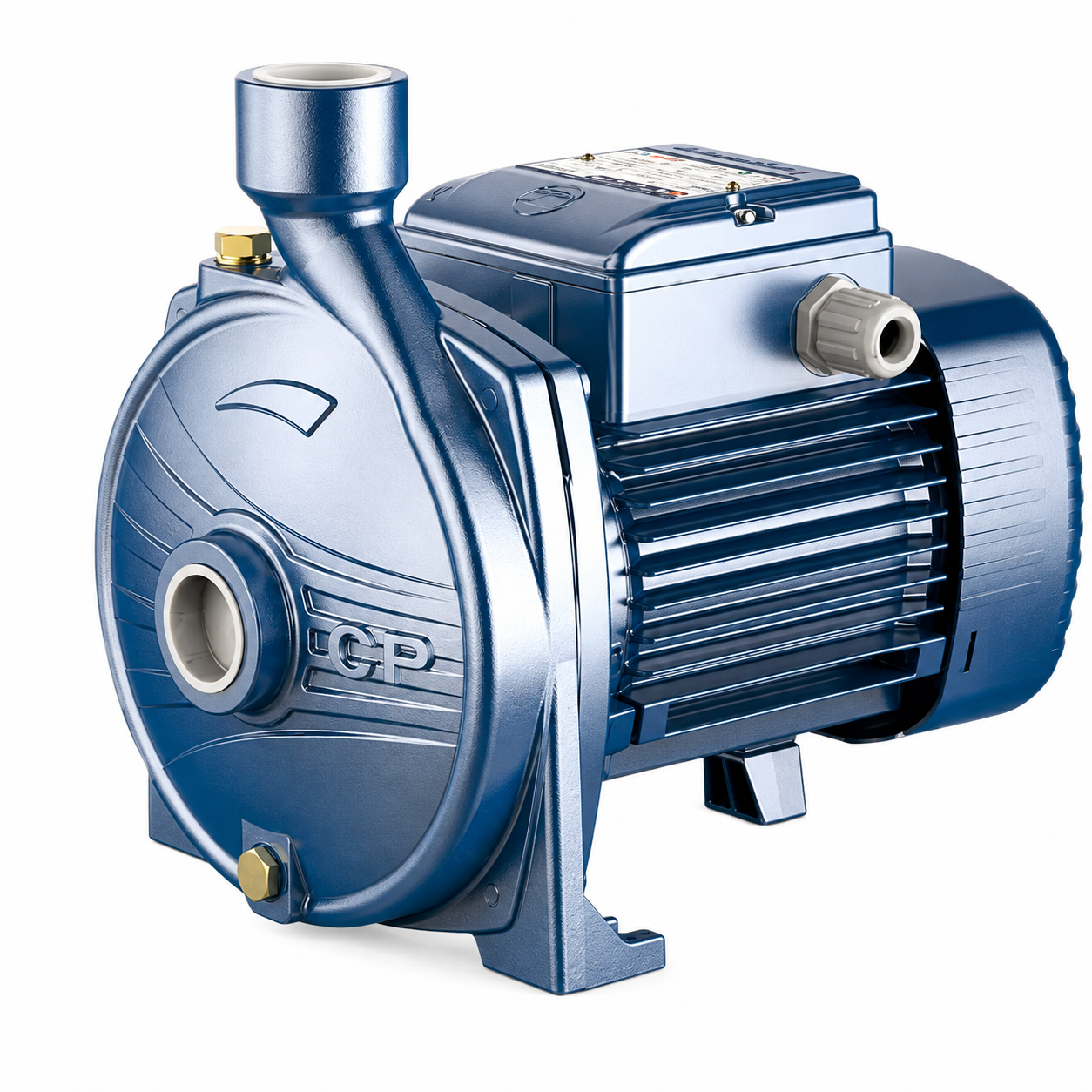

Pedrollo 2CP/2CPM Twin-Impeller Centrifugal Pump – 25/14, 25/16 Range

The Pedrollo 2CP/2CPM Twin-Impeller Centrifugal Pump range is built for applications needing higher head than a standard single-stage centrifugal pump of the same power. Its two-impeller design suits water distribution with autoclave/pressure tanks, boosting network pressure, and higher-head domestic or small commercial systems. Available in single-phase 230V (2CPm) across four model sizes from 1.1kW to 2.2kW. The 25/14B and 25/16B models are also available bundled with a Pedrollo Easy Press 2 electronic controller.

• Application: Pressure-tank water distribution, network pressure boosting, higher-head domestic and small commercial supply.
• Motor options: Single-phase 230V (2CPm range).
• Power range: 1.1kW (1.5HP) to 2.2kW (3HP) across 4 model sizes.
• Performance: Max head from 54m up to 68m, higher than a single-impeller CP pump of equivalent power.
• Pump type: Twin (two-stage) impeller centrifugal, for higher head at a given power.
• Motor efficiency: IE2 single-phase motor class, per IEC 60034-30-1.

Key Features

• Twin-impeller design: Two impellers in series deliver more head than a single-stage CP pump of the same power – useful where you need pressure, not just flow.
• Integrated thermal protection: Single-phase (2CPm) motors have winding-integrated thermal motor protection built in.
• Four size options: Sized from 1.1kW up to 2.2kW so you can match the pump to your required head.

Typical Applications

• Water distribution with autoclave / pressure tank systems
• Increasing network or household water pressure
• Domestic and small commercial systems needing higher head than a standard centrifugal pump

Technical Specifications

Performance figures are read from the manufacturer's official Q/H curve at the flow points supplied. Tolerance of characteristic curves complies with EN ISO 9906 Grade 3B.

Configuration Options

Most models are sold as "Pump Only". The 25/14B and 25/16B models are also available bundled with Pedrollo's Easy Press 2 electronic controller (standard 1.5 bar restart pressure version), which automatically starts/stops the pump on demand and protects against dry running.

What's Included

• 1 x Pedrollo twin-impeller centrifugal pump (model as selected)
• Plus the controller listed in the Configuration option, where selected

Please note: Installation fittings, electrical protection, control boxes, cables, unions, brackets, or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm your required flow rate and head against the table above before ordering.
• These models run off a standard single-phase 230V household supply.
• Confirm connection size and pipe compatibility with Zisabo before ordering.
• Qualified installation is recommended, particularly where used with a pressure/autoclave tank system.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need help choosing? If you're unsure which model or configuration suits your system, contact Zisabo with your required flow rate, head, and pipe size, and we'll help you select the correct pump.
