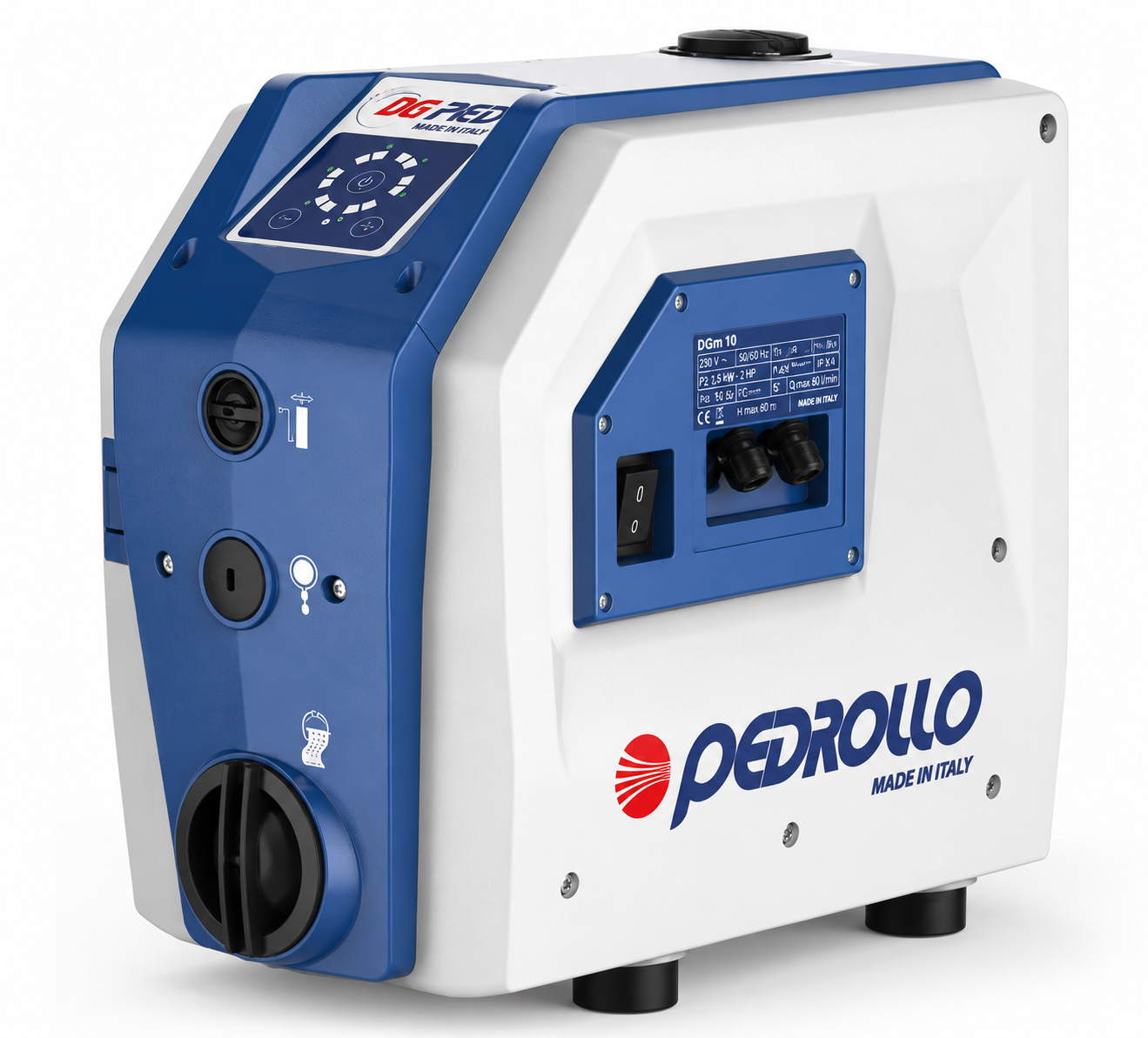

Pedrollo DG PED Automatic Pressurisation System with Inverter – 230V

The Pedrollo DG PED is an automatic pressurisation system with a built-in inverter, delivering constant water pressure that adjusts pump speed to match demand rather than cycling on and off at fixed speed. The pressure set point is adjustable between 1 and 5.5 bar (shipped set to 3 bar), so the system can be tuned to the household or system it's installed on. Available in single-phase 230V.

• Application: Domestic and small commercial constant-pressure water supply.
• Motor: Single-phase 230V.
• Power range: 0.75kW (1HP) to 1.1kW (1.5HP).
• Performance: Max flow 80–120 L/min, max head 55m, depending on model.
• Pressure control: Adjustable set point from 1 bar to 5.5 bar, standard setting 3 bar.
• Motor efficiency: IE3 motor class, per IEC 60034-30-1.

Key Features

• Inverter-driven constant pressure: Automatically varies pump speed to hold a set pressure, rather than the on/off cycling of a standard pressure switch pump.
• Adjustable set point: Tune the working pressure anywhere from 1 bar to 5.5 bar to suit your system, rather than being locked to one fixed pressure.
• Two size options: DG PED 3 for smaller systems, DG PED 5 for higher flow demand.

Typical Applications

• Domestic water supply where consistent pressure is wanted regardless of how many outlets are open
• Small commercial systems needing constant pressure
• Replacing a standard pressure-switch pump where pressure fluctuation is a problem

Technical Specifications

Performance figures are read from the manufacturer's official performance chart. At the minimum 1 bar set point, DG PED 3 delivers 35–80 L/min and DG PED 5 delivers 50–120 L/min; at the maximum 5.5 bar set point, DG PED 3 delivers 5–30 L/min and DG PED 5 delivers 5–50 L/min.

What's Included

• 1 x Pedrollo DG PED automatic pressurisation system with inverter (model as selected)

Please note: Installation fittings, electrical protection, cables, unions, brackets, or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm your required flow rate and pressure set point against the table above before ordering.
• Runs off a standard single-phase 230V household supply.
• Confirm connection size and pipe compatibility with Zisabo before ordering.
• Qualified installation is recommended.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need help choosing? If you're unsure which model suits your system, contact Zisabo with your required flow rate and desired pressure, and we'll help you select the correct system.
