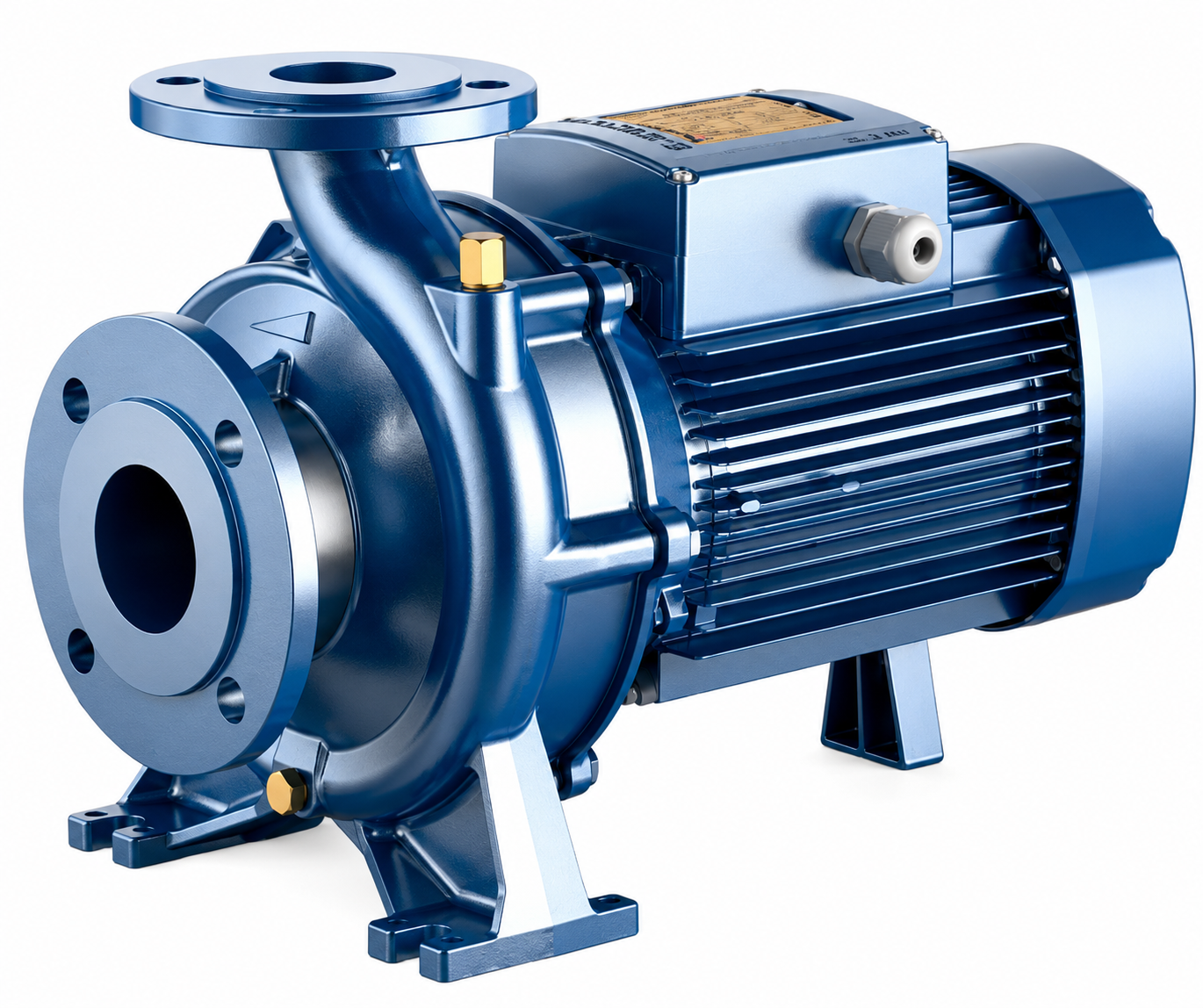

Pedrollo F32 Flanged Centrifugal Pump – 160/200 Range, 400V

The Pedrollo F32 Flanged Centrifugal Pump is a close-coupled, flanged centrifugal pump built to the EN733 standard, for clean water free of abrasive particles. It suits water supply, pressurisation, irrigation, water circulation, power washing and industrial applications where higher flow and head are needed than a standard threaded-connection pump can deliver. Available in three-phase 400V only.

• Application: Water supply, pressurisation, irrigation, industrial and agricultural water systems.
• Motor: Three-phase 400V.
• Power range: 2.2kW (3HP) to 7.5kW (10HP) across 6 model sizes.
• Performance: Max head from 31m up to 60m, flow rates up to 500 L/min depending on model.
• Pump type: Close-coupled flanged centrifugal pump, EN733 standard.
• Motor efficiency: IE3 three-phase motor class (IEC 60034-30-1); range meets Minimum Efficiency Index (MEI) ≥ 0.40.

Key Features

• Flanged EN733 connections: DN32 (1¼") flanged inlet/outlet, suited to industrial pipework rather than threaded fittings.
• Cast iron construction: Cast iron pump body and cover for durability under industrial duty.
• Wide temperature range: Rated for liquid temperatures from -10°C to +90°C, suited to a broader range of industrial applications than a standard domestic pump.
• Continuous duty (S1): Built to run continuously under rated conditions.

Typical Applications

• Industrial and agricultural water supply
• Pressurisation systems
• Irrigation at higher flow rates
• Water circulation in air conditioning systems
• Power washing systems

Technical Specifications

F32/200A, F32/200B and F32/200C performance figures are from the manufacturer's chart supplied by Zisabo. F32/160A, F32/160B and F32/200AH performance figures are read from Pedrollo's official published Q/H curve. Tolerance of characteristic curves complies with EN ISO 9906 Grade 3B.

What's Included

• 1 x Pedrollo F32 flanged centrifugal pump (model as selected)

Please note: Flanges, counter-flanges, gaskets, bolts, electrical protection, control boxes and cabling are not included – see the separate F32 Counter-Flange Set listing.

Installation & Compatibility Notes

• Confirm your required flow rate and head against the table above before ordering – F32/200AH is a higher-head, lower-flow variant of the 200 tier at the same power rating as F32/200C, so check carefully which one your system needs.
• This range is three-phase 400V only and requires installation by a qualified electrician.
• Flanged connections require a matching counter-flange, gasket and bolts – order the F32 Counter-Flange Set separately if you don't already have compatible flanges.
• Suited to well-ventilated indoor or protected installation areas.
• Qualified installation is recommended for all models in this range.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need help choosing? If you're unsure which model suits your system, contact Zisabo with your required flow rate, head, and pipe size, and we'll help you select the correct pump.
