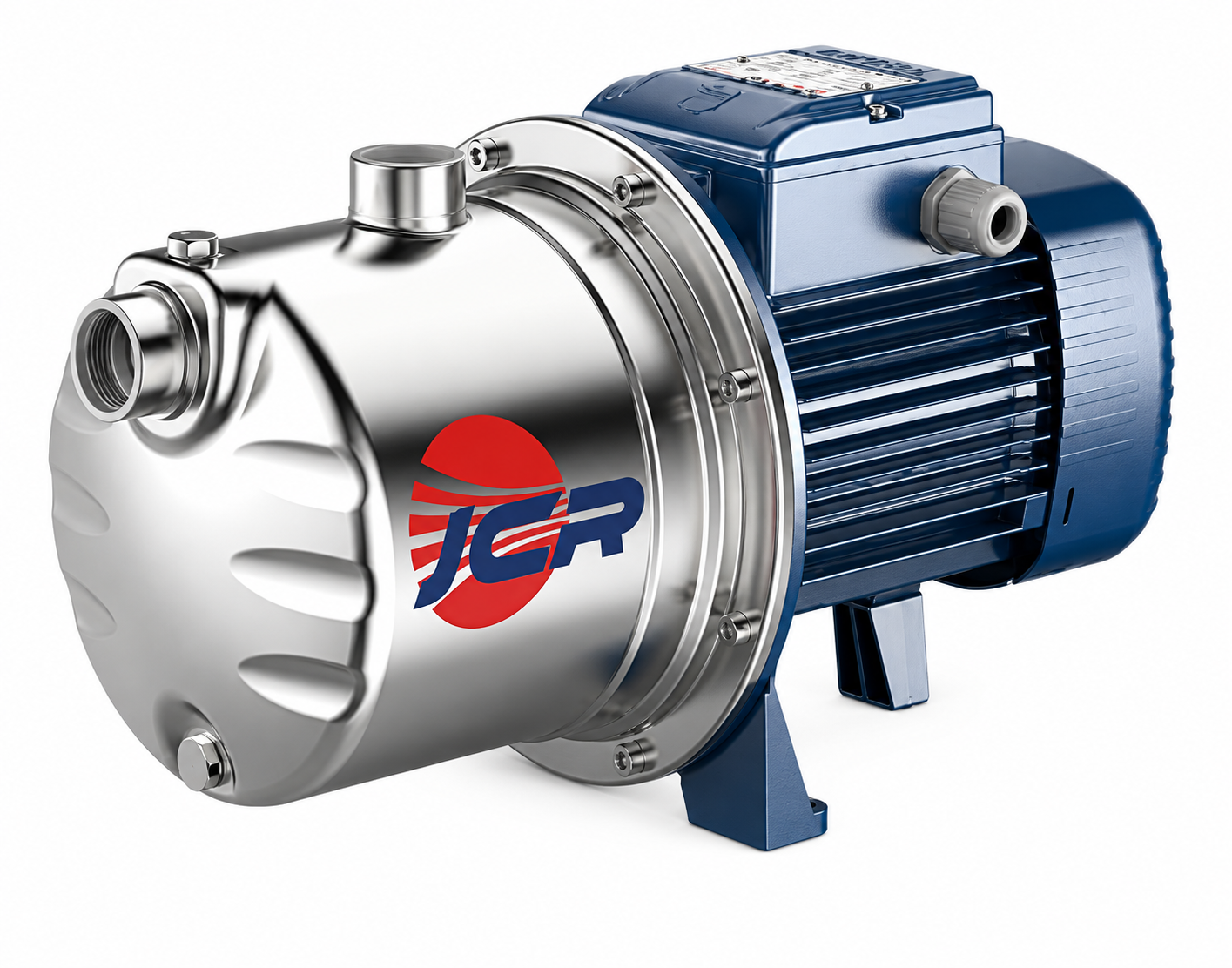

Pedrollo JCR/JCRm Self-Priming Jet Pump – JCR1/JCR2 Range, 230V

The Pedrollo JCR/JCRm Self-Priming Jet Pump range draws water and liquids that contain air, making it well suited to domestic water distribution with small to medium-sized pressure tanks and general irrigation. The range spans two size tiers (JCR1, JCR2) from 0.37kW up to 1.1kW, with a stainless steel AISI304 pump body, cover and impeller throughout. Available in single-phase 230V.

• Application: Domestic water distribution with pressure tanks, garden and general irrigation, civil water supply.
• Motor: Single-phase 230V (JCRm).
• Power range: 0.37kW (0.50HP) to 1.1kW (1.5HP) across two size tiers.
• Performance: Max head from 34m up to 60m depending on model.
• Pump type: Self-priming jet pump with built-in check valve – can draw water/air mixtures.
• Construction: Stainless steel AISI304 pump body, cover and impeller.
• Motor efficiency: IE2 single-phase motor class, per IEC 60034-30-1.

Key Features

• True self-priming operation: The jet/ejector design can draw water containing air, useful where the suction line isn't always fully flooded.
• Fully stainless steel wetted parts: AISI304 pump body, cover and impeller for corrosion resistance and durability.
• Built-in check valve: Helps maintain prime between pump cycles.
• Two size tiers: JCR1 (compact) and JCR2 (higher head/flow) so you can match the pump to your system.

Typical Applications

• Domestic water distribution with pressure/autoclave tanks
• General garden and irrigation use
• Civil water supply
• Installations where the suction line may draw in air

Technical Specifications

JCR1 performance figures are read from Pedrollo's official published Q/H curve. JCR2A performance figures are from the manufacturer's chart supplied by Zisabo. Tolerance of characteristic curves complies with EN ISO 9906 Grade 3B.

What's Included

• 1 x Pedrollo JCR/JCRm self-priming jet pump (model as selected)

Please note: Installation fittings, electrical protection, control boxes, cables, unions, brackets, or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm your required flow rate and head against the table above before ordering.
• These models run off a standard single-phase 230V household supply.
• Confirm connection size and pipe compatibility with Zisabo before ordering.
• Qualified installation is recommended.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need help choosing? If you're unsure which model suits your system, contact Zisabo with your required flow rate, head, and pipe size, and we'll help you select the correct pump.
