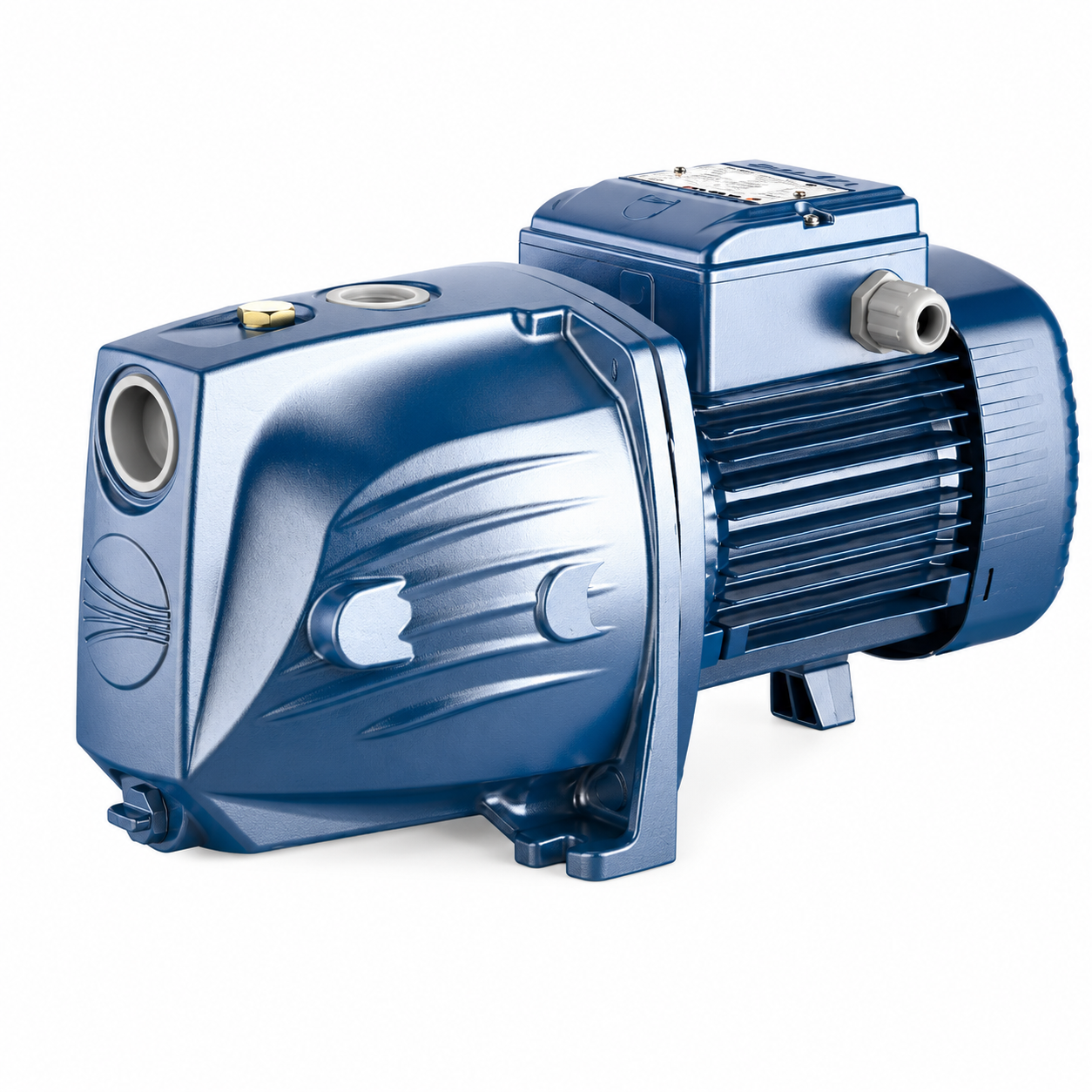

Pedrollo JSW/JSWm Self-Priming Jet Pump – JSW1/JSW2/JSW3 Range, 230V/400V

The Pedrollo JSW/JSWm Self-Priming Jet Pump range draws water and liquids that contain air, making it well suited to domestic water distribution with small to medium-sized pressure tanks and general irrigation. The range spans three size tiers (JSW1, JSW2, JSW3) from 0.48kW up to 2.2kW, available in single-phase 230V (JSWm) or three-phase 400V (JSW) motor versions.

• Application: Domestic water distribution with pressure tanks, garden and general irrigation, civil water supply.
• Motor options: Single-phase 230V (JSWm range) or three-phase 400V (JSW range).
• Power range: 0.48kW (0.65HP) to 2.2kW (3HP) across three size tiers.
• Performance: Max head from 39.5m up to 97m depending on model and tier.
• Pump type: Self-priming jet pump – can draw water/air mixtures, unlike a standard centrifugal or peripheral pump.
• Motor efficiency: IE2 (single-phase) or IE3 (three-phase), per IEC 60034-30-1.

Key Features

• True self-priming operation: The jet/ejector design can draw water containing air, useful where the suction line isn't always fully flooded.
• Choice of motor: Single-phase 230V (JSWm) models work off a standard household supply; three-phase 400V (JSW) models suit properties or sites with a 3-phase electrical connection.
• Three size tiers: JSW1 (compact), JSW2 (mid-size), and JSW3 (higher head/flow) so you can match the pump to your system.
• JSW3 head tiers: The JSW3 range offers Medium (M) and High (H) head variants at the same power rating – confirm which tier you need before ordering.

Typical Applications

• Domestic water distribution with pressure/autoclave tanks
• General garden and irrigation use
• Civil and small commercial water supply
• Installations where the suction line may draw in air

Technical Specifications

JSW2 performance figures are from the manufacturer's chart supplied by Zisabo. JSW1 and JSW3 performance figures are read from Pedrollo's official published Q/H curve. Tolerance of characteristic curves complies with EN ISO 9906 Grade 3B.

Configuration Options

Most models are sold as "Pump Only". Selected single-phase models are also available bundled with an Aquasystems pressure tank or a Pedrollo Easy Press 2 electronic controller – see the Configuration option on this listing.

What's Included

• 1 x Pedrollo JSW/JSWm self-priming jet pump (model and phase as selected)
• Plus the tank or controller listed in the Configuration option, where selected

Please note: Installation fittings, electrical protection, control boxes, cables, unions, brackets, or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Confirm your required flow rate and head against the table above before ordering.
• Single-phase 230V (JSWm) models run off a standard household supply. Three-phase 400V (JSW) models require a 3-phase electrical connection and installation by a qualified electrician.
• JSW2A and JSW3AM/AH are three-phase only in this range – confirm phase availability before ordering.
• Confirm connection size and pipe compatibility with Zisabo before ordering.
• Qualified installation is recommended, particularly for three-phase wiring, electrical protection, and any control box requirements.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need help choosing? If you're unsure which model, phase or configuration suits your system, contact Zisabo with your required flow rate, head, pipe size, and available power supply, and we'll help you select the correct pump.
