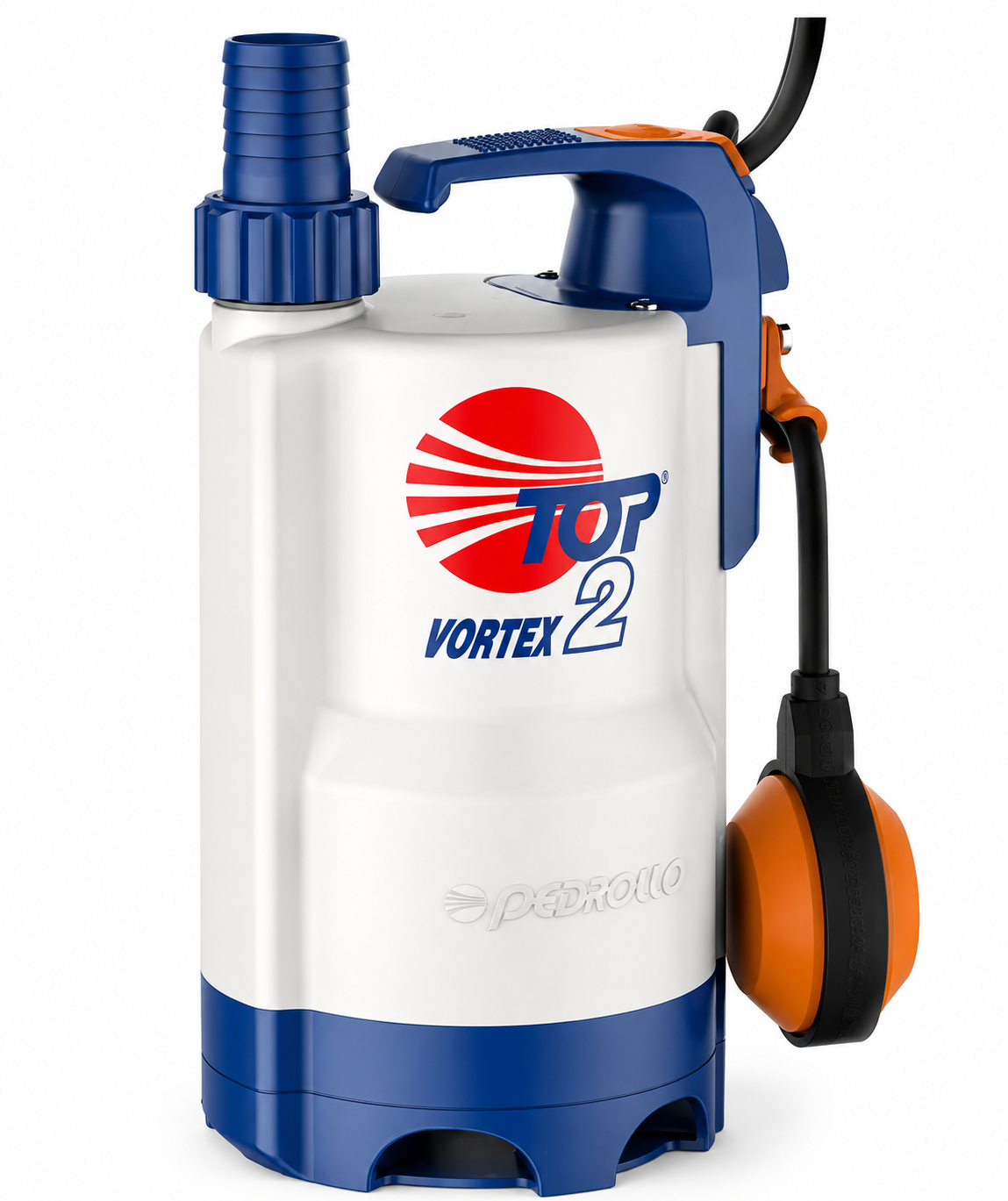

Pedrollo TOP-VORTEX Submersible Drainage Pump – 230V

The Pedrollo TOP-VORTEX Submersible Drainage Pump is designed for draining dirty water in domestic settings – emptying tanks, managing domestic drains, and clearing sumps. Its vortex impeller can pass suspended solids up to 25mm in diameter, and it includes a float switch and 5m power cable ready for installation. Available in single-phase 230V.

• Application: Domestic dirty-water drainage, sump clearing, tank emptying.
• Motor: Single-phase 230V.
• Power range: 0.37kW (0.50HP) to 0.55kW (0.75HP).
• Performance: Max head from 7.6m up to 8.7m, flow up to 155–170 L/min depending on model.
• Solids handling: Vortex impeller passes suspended solids up to Ø25mm.
• Included: Float switch and 5m power cable with Schuko plug.

Key Features

• Vortex impeller: Creates a whirlpool effect that lets solids pass through the pump body without clogging, unlike a standard closed impeller.
• Automatic float switch included: Starts and stops the pump automatically as water level rises and falls in the sump.
• Double shaft seal: Seal with interposed oil chamber for added protection against water ingress into the motor.
• Technopolymer construction: Lightweight, corrosion-resistant pump body, suction filter, diffuser and impeller.

Typical Applications

• Domestic sump and pit drainage
• Emptying tanks and containers
• Clearing flood water or drainage from domestic areas
• General dirty-water removal around the home

Technical Specifications

Performance figures are read from the manufacturer's official Q/H curve at the flow points supplied. Tolerance of characteristic curves complies with EN ISO 9906 Grade 3B.

What's Included

• 1 x Pedrollo TOP-VORTEX submersible drainage pump (model as selected)
• 1 x float switch
• 5m power cable with Schuko plug
• Hose connector (Ø35mm)

Please note: This pump is for dirty/waste water, not clean drinking water distribution. Not suited to water containing abrasive particles that could damage the pump.

Installation & Compatibility Notes

• Confirm your required flow rate and head against the table above before ordering.
• Maximum submersion depth is 3m – for deeper sumps or pits, ask Zisabo about the RX-VORTEX range instead.
• Maximum solids size is 25mm – larger debris should be screened out before it reaches the pump.
• Runs off a standard single-phase 230V household supply.
• Qualified installation is recommended, particularly for permanent sump installations.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need help choosing? If you're unsure which model suits your system, contact Zisabo with your required flow rate, head, sump depth and expected solids size, and we'll help you select the correct pump.
