Pendant Control Station – 2 to 12 Pushbuttons, With or Without Emergency Stop | MCE XAC Series

The MCE XAC Pendant Control Station range is a set of hand-held pushbutton pendants for crane, hoist and lifting equipment control. It suits electricians, crane maintenance teams and panel builders who need a pendant with 2, 4, 6, 8, 10 or 12 buttons, with or without an emergency stop, in a 1 speed or 2 speed (double depression) version.

• Application: Crane, hoist and lifting equipment pendant control

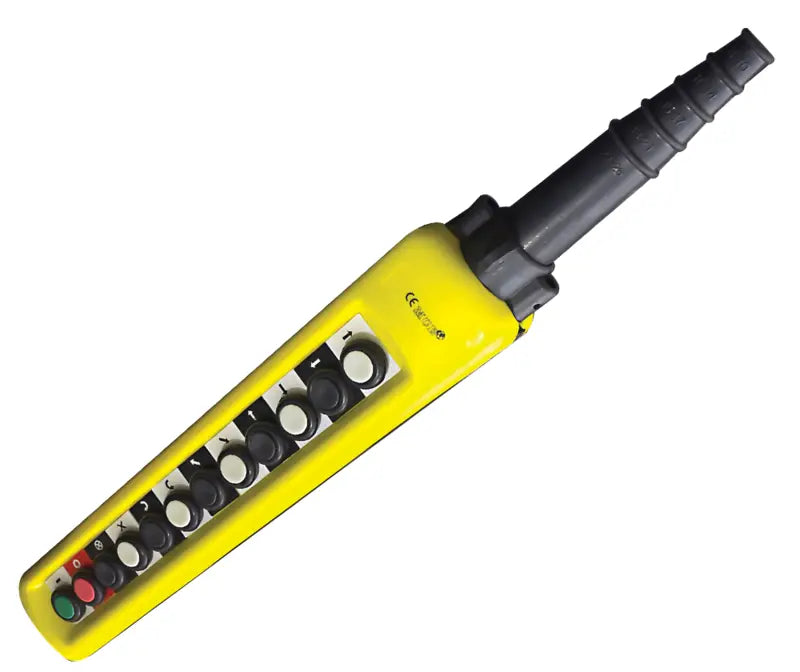

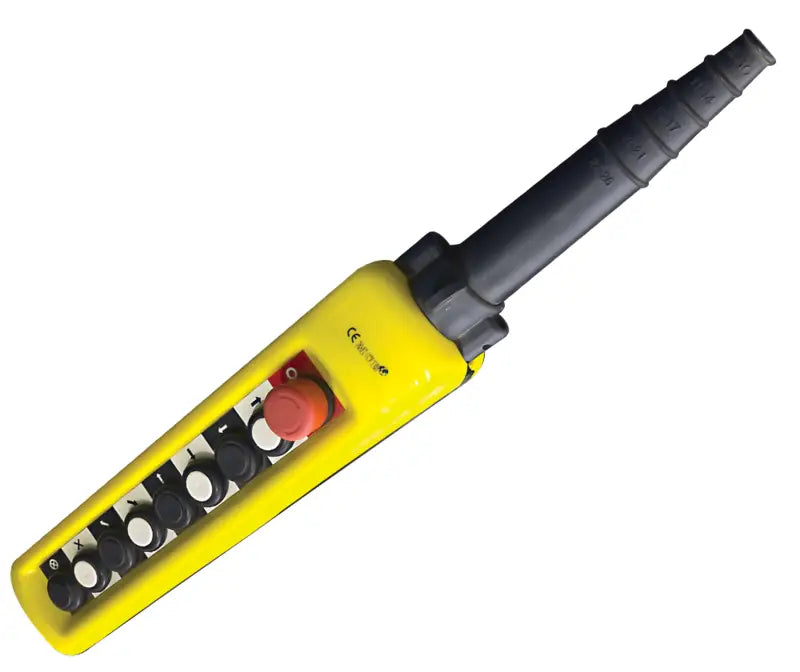

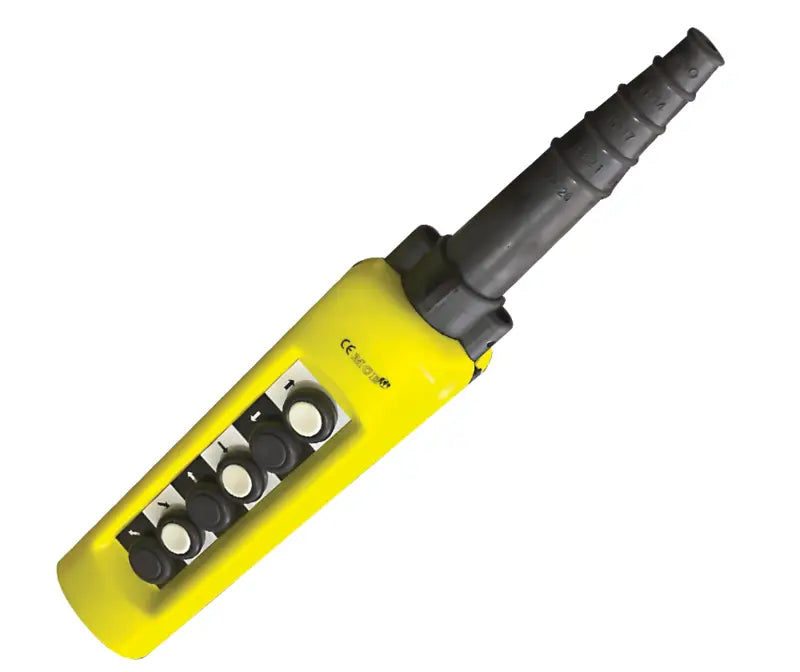

• Button counts: 2, 4, 6, 8, 10 or 12 (the 12-button version with E-stop has 11 pushbuttons + E-stop)
• Emergency stop: Available on every size (codes ending in 3)

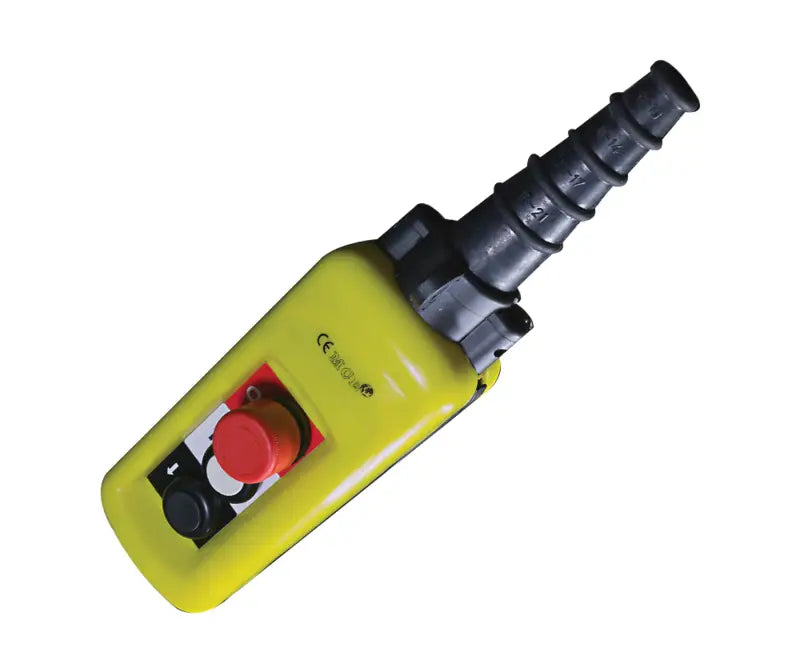

• Series 7: Standard 1 speed pendant
• Series 8: 1 speed, single depression, 1NO + 1NC
• Series 9: 2 speed, double depression

Key Features

• Six button counts to match simple or multi-function hoist and crane controls
• Optional emergency stop version on every size
• 2 speed (double depression) buttons for crane and hoist speed control
• Spare rubber grip, pushbutton heads and emergency stop heads available separately

Typical Applications

• Overhead crane pendant control
• Electric hoist control
• Workshop and factory lifting equipment
• Maintenance and plant machinery stations

Technical Specifications

Variant Reference

What's Included

• 1 x pendant control station in the selected configuration and series

Please note: Cable, suspension hardware, wiring and spare parts are not included unless specifically listed above.

Installation & Compatibility Notes

• Count the control functions your crane or hoist needs (for example up, down, left, right) to choose the right button count.
• Choose Series 9 if your crane or hoist needs 2 speed (double depression) control, and Series 7 or 8 for 1 speed.
• Choose the emergency stop version where your lifting equipment requires one.
• When replacing an existing pendant, send Zisabo the code or a photo so we can confirm the correct series.
• Installation and wiring must be carried out by a suitably qualified person in accordance with SANS 10142 and the applicable lifting equipment requirements.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms. Zisabo supplies quality electrical products with practical support to help customers choose the correct item for their application. If you are unsure which variant is correct, contact us before ordering.

Need help choosing? Send Zisabo the number of functions, whether you need 1 or 2 speed and an emergency stop, and a photo of your existing pendant, and we will assist where possible.
