Relay Base – Multiple Pin Configurations | Zisabo

R 95.40

Sale Sold out

Taxes included. Shipping calculated at checkout.

Compatible Relay Model JQX-76F-TU2A – 6 Pin Square – Sold out JQX-13F-LY4C – 14 Pin – Sold out JQX-13F-LY3C – 11 Pin – Sold out JQX-13F-LY2C – 8 Pin – Sold out JQX-10F-3 – 11 Pin Square – Sold out JQX-10F-2 – 8 Pin Square – Sold out JQX-14FC – 8 Pin (with Clips) – Sold out JQX-13FKF4CL – 14 Pin (with Clips) – Sold out JQX-13FKF2CL – 8 Pin (with Clips) – Sold out

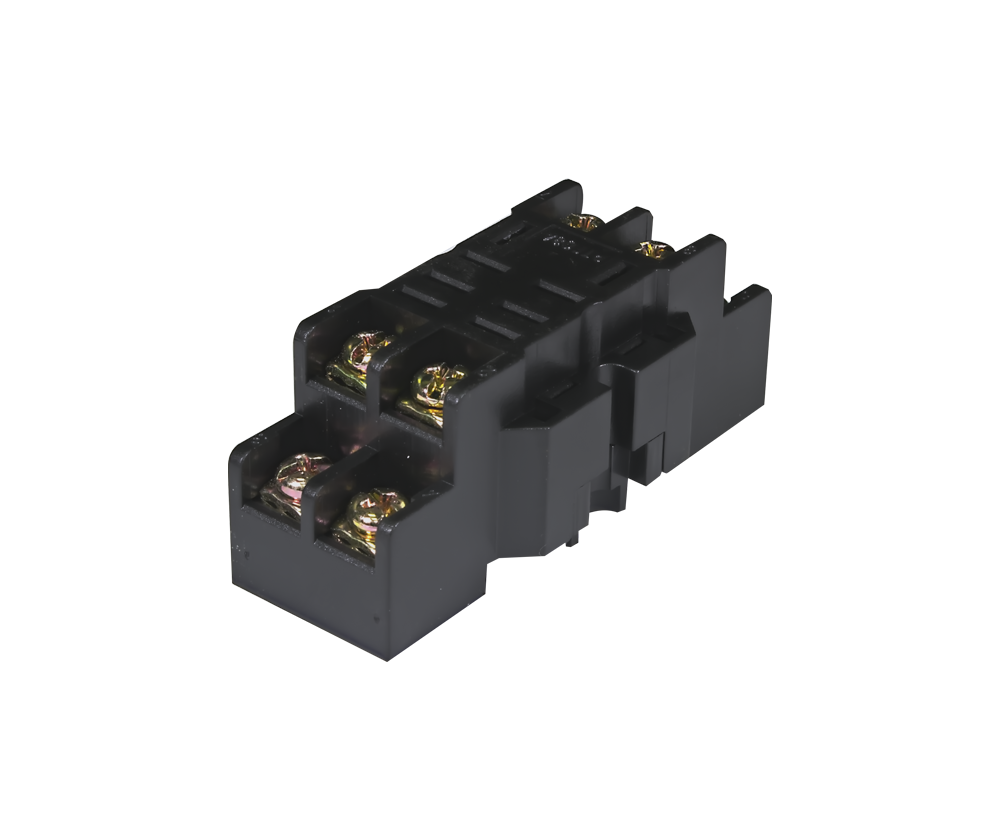

This Relay Base range covers screw terminal sockets for JQX-series plug-in relays, sold across 6, 8, 11 and 14 pin configurations in both round and square terminal layouts. Select the variant that matches the exact relay model you are fitting or replacing. It is suitable for electricians, panel builders and maintenance teams servicing panels built around any of the covered JQX relays.

Application: Mounting base for JQX-series plug-in relays
Pin configurations: 6, 8, 11 or 14 pin, round or square terminal layout
Terminal type: Screw terminal
Mounting: Surface or DIN rail mount
Selection: Choose the variant matching your specific relay model

Key Features

One range covering 9 base variants, each matched to a specific JQX relay model
Accepts the corresponding relay directly, no rewiring needed when swapping a faulty relay
Screw terminals give a secure, serviceable wiring connection
Surface or DIN rail mounting suits most panel layouts
Three variants (for JQX-14FC, JQX-13FKF4CL and JQX-13FKF2CL) are supplied complete with relay holding clips

Typical Applications

Control panel relay mounting
Relay replacement and maintenance
Panel builder standard relay circuits
Retrofit base for existing relay wiring

Technical Specifications

Brand	MCE Electrical
Product type	Relay Base
Terminal type	Screw terminal
Mounting	Surface / DIN rail

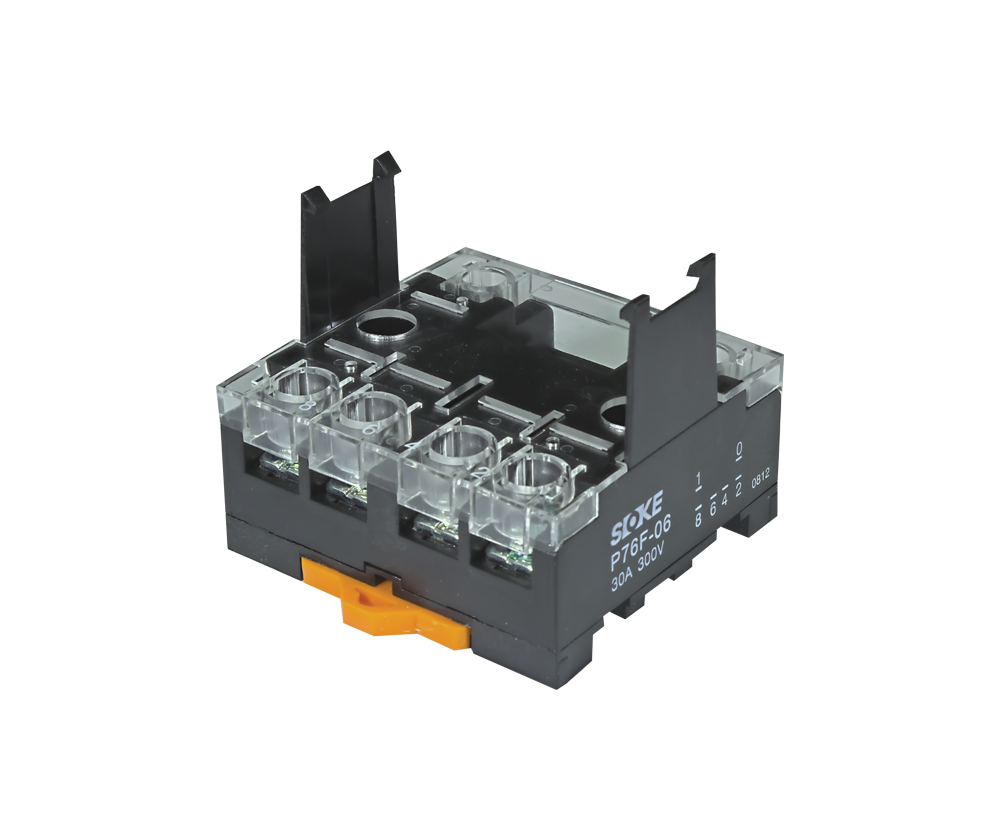

JQX-76F-TU2A variant	6 pin, square layout, 30A rated base (SKU P76F-06)

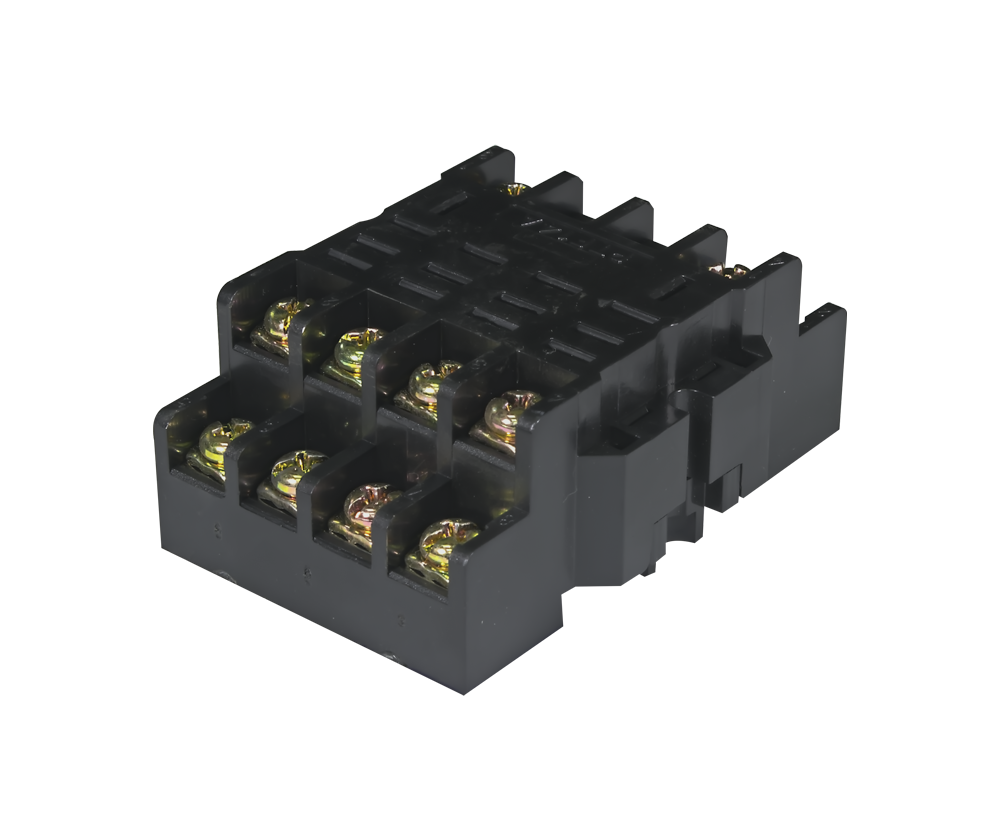

JQX-13F-LY4C variant	14 pin, round layout (SKU PTF-14A)

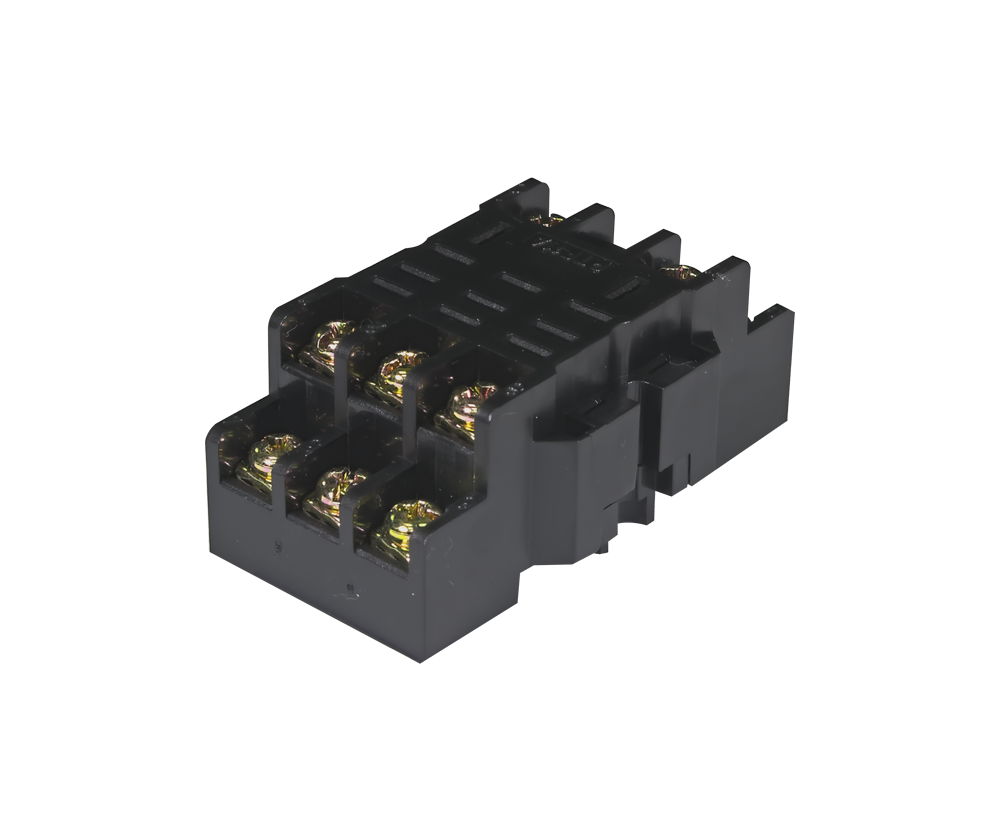

JQX-13F-LY3C variant	11 pin, round layout (SKU PTF-11A)
JQX-13F-LY2C variant	8 pin, round layout (SKU PTF-08A)

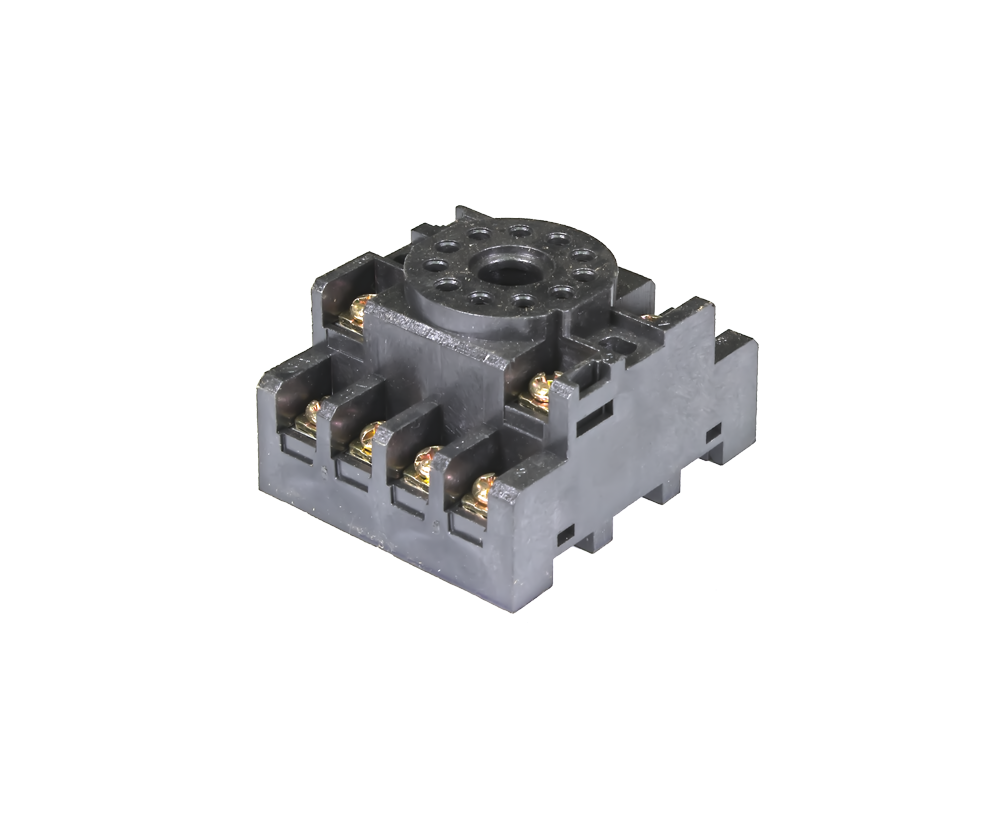

JQX-10F-3 variant	11 pin, square layout (SKU PF-113A)

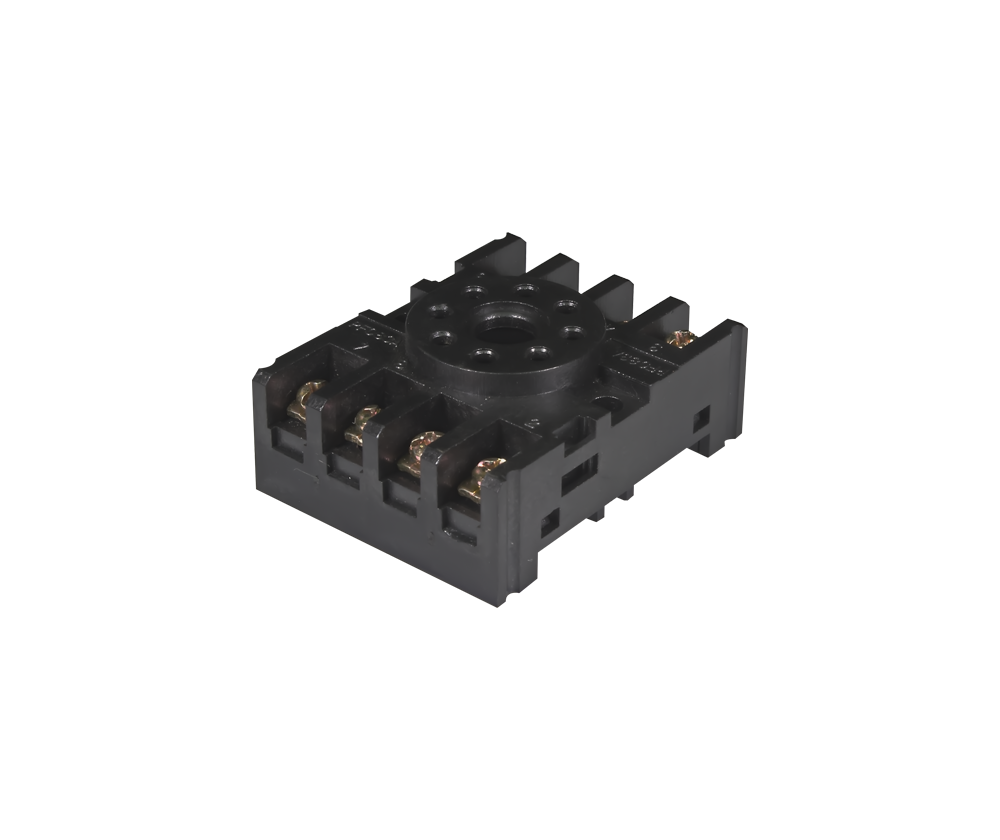

JQX-10F-2 variant	8 pin, square layout (SKU PF-083A)

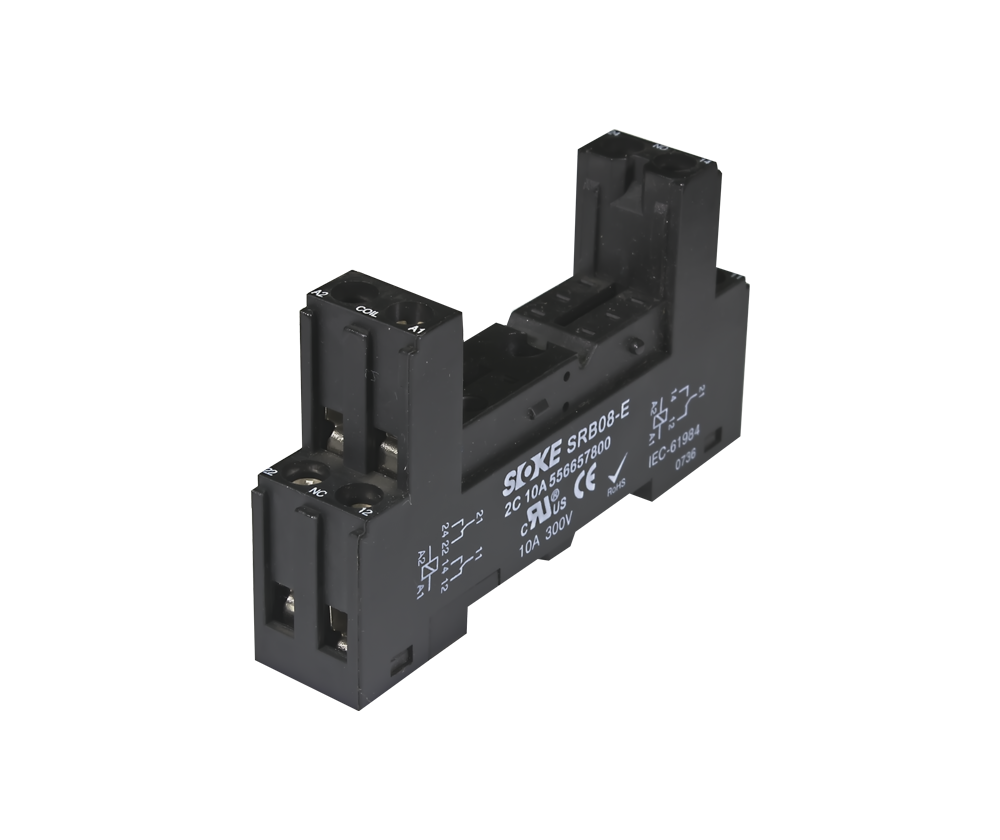

JQX-14FC variant	8 pin, round layout, includes relay holding clips (SKU SRB-08-E)

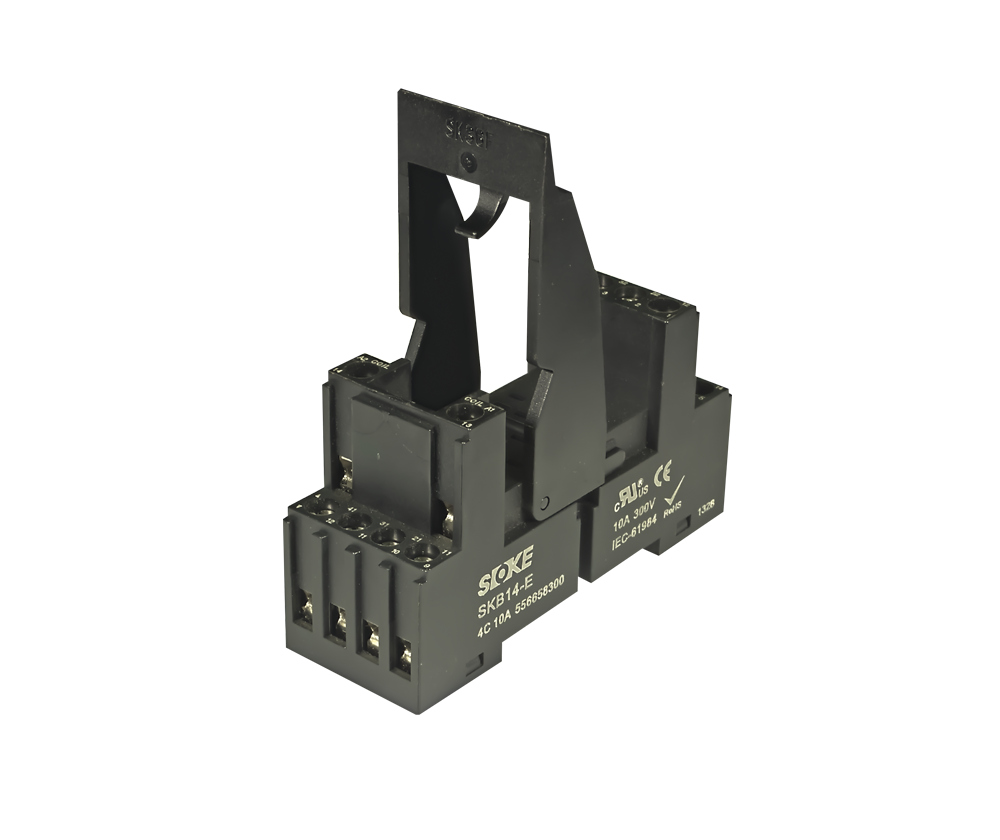

JQX-13FKF4CL variant	14 pin, round layout, includes relay holding clips (SKU SKB-14-E)

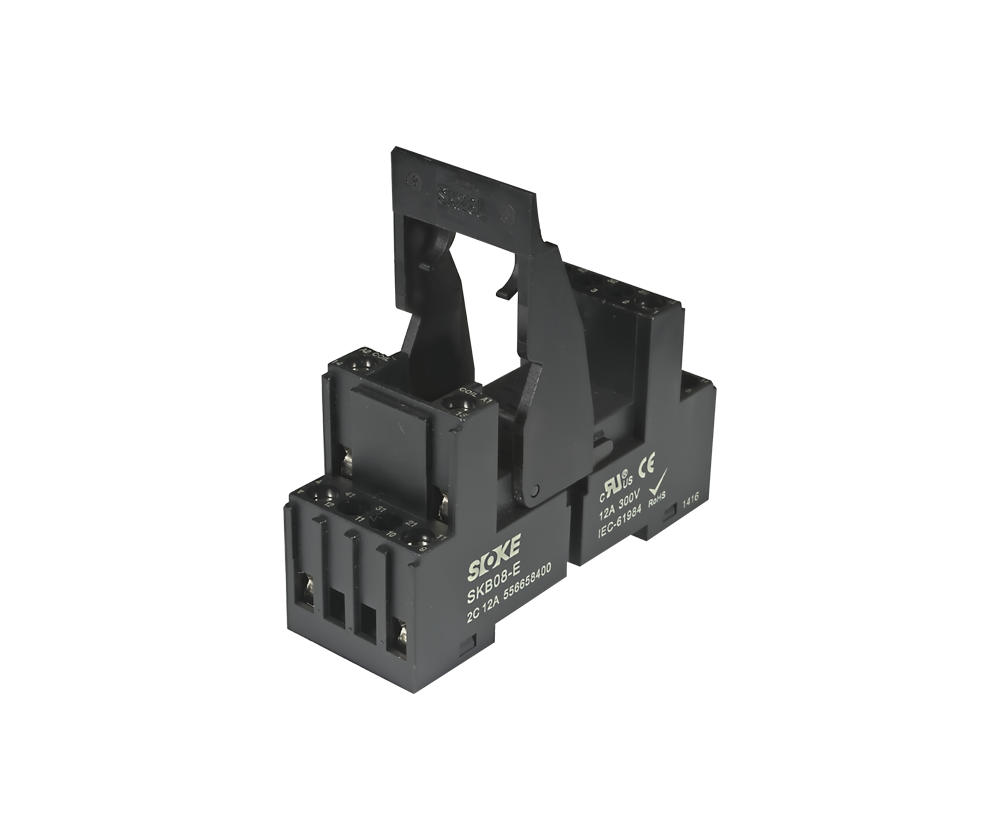

JQX-13FKF2CL variant	8 pin, round layout, includes relay holding clips (SKU SKB-08-E)

What's Included

1 x Relay Base matching the variant selected
Relay holding clips, on the JQX-14FC, JQX-13FKF4CL and JQX-13FKF2CL variants only

Please note: The relay itself and panel wiring are not included unless specifically listed above. Relay holding clips are only supplied with the three variants noted above.

Installation & Compatibility Notes

This is the most important step: confirm the exact relay model you are fitting before selecting a variant. Pin count and terminal layout must match precisely — bases are not interchangeable between different JQX relay models.
Confirm mounting method (surface or DIN rail) suits your panel.
Installation should be carried out by a suitably qualified electrician where required.

Warranty & Support

This product is supplied with the applicable manufacturer or supplier warranty, subject to correct installation, correct application, and warranty terms.

Zisabo supplies quality plumbing, pump, filtration and electrical products with practical support to help customers choose the correct item for their application. If you are unsure whether this product is suitable, contact us before ordering and our team will assist where possible.

Need help choosing? If you are unsure which variant matches your relay, contact Zisabo with the relay model printed on your existing unit and we will confirm the correct base before you order.
