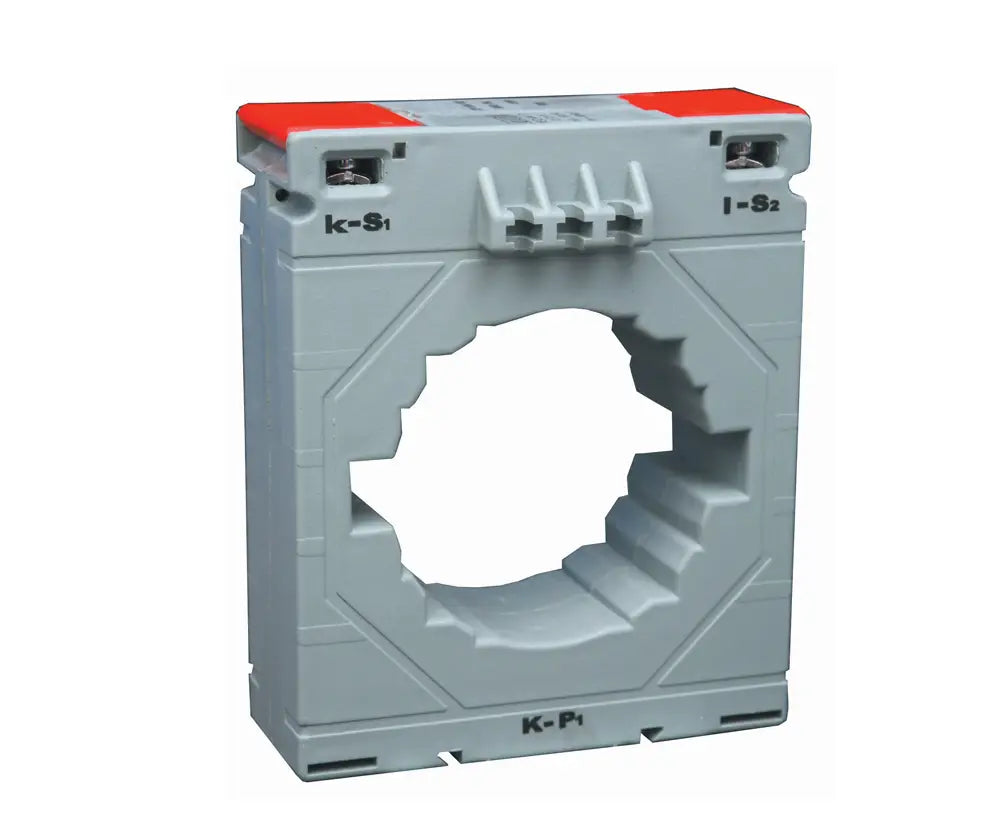

Ring Type Current Transformer 100mm ID – 1200/5A to 3000/5A | MCE CP140/100

The MCE CP140/100 is a ring type (window) current transformer with a 100mm inner diameter and a 5A secondary output. It steps a measured load current down to 5A for ammeters, kWh meters and monitoring equipment on high-current circuits, and suits electricians, panel builders and maintenance teams. Six ratios are available from 1200/5A to 3000/5A.

• Application: Current measurement on high-current feeders and incomers
• Inner diameter: 100mm window for the primary conductor
• Ratios: 1200/5A to 3000/5A, 5A secondary
• Accuracy: Class 1.0, 15VA burden

Key Features

• Ring type design: the primary cable or busbar passes through the centre window
• 100mm window suits large busbars and multiple cables
• 15VA burden for longer meter leads or multiple instruments
• Class 1.0 accuracy for general metering

Typical Applications

• CT-operated ammeters on main incomers
• Energy metering on large feeders and transformers
• Load monitoring on plant and generator circuits
• Switchboard and panel building

Technical Specifications

What’s Included

• 1 x MCE CP140/100 ring type current transformer (selected ratio)

Please note: Installation fittings, electrical protection, cables, brackets, meters or accessories are not included unless specifically listed above.

Installation & Compatibility Notes

• Select the ratio based on the maximum load current of the circuit.
• Confirm the primary cable or busbar fits through the 100mm window before ordering.
• Do not leave the secondary open-circuit while the primary is energised.
• Check that the connected meter is rated for a 5A CT secondary and that the burden suits the CT.
• Installation should be carried out by a suitably qualified person.
